Lateral epicondylitis (LE), known as “tennis elbow”, is the most common cause of lateral elbow pain due to the overuse of the common extensor tendon (CET), which has a prevalence of 1–3% in the general population (1-5). The diagnosis of LE is based primarily on clinical examination, like visual analogy scale (VAS), and often confirmed with diagnostic imaging including conventional ultrasound (US), magnetic resonance imaging (MRI), real-time sonoelastography, etc. for cases of atypical presentation or those resistant to conservative treatment (6,7). Furthermore, imaging techniques provide the information related to the physiopathology of disease condition and determine the radiological severity of LE, and can be essential in assessing the level of impairment, planning treatment strategies, or guiding surgery (5,8,9). Although MRI has been widely considered as a reliable complementary method for LE assessment, the high cost, lengthy examination time, and several contraindications may limit its widespread use (6). Currently, the US is increasingly playing a vital role in the diagnosis of LE with inexpensive, non-invasive, and dynamic features. US findings in the CET for LE are characterized by edema, decreased echogenicity, epicondylar cortical irregularity or spur formation, the severity of the disease with evidence of tendon thickening, and Doppler activity (10-12). However, the potential role of the US is limited because it has been reported that both its sensitivity (US: 64% to 88%, MRI: 90% to 100%) and specificity (US: 36% to 48.5%, MRI: 67% to 89%) are lower than those of MRI (13-15).
Recent studies (16-19) in which elastography was used to evaluate the mechanical properties of tendons have reported that elastographic methods may detect the changes in tendon stiffness qualitatively and quantitatively, as well as monitor and guide ongoing treatments of tendinopathy. Shear wave elastography (SWE) is one of the main elastographic techniques, which can be induced through various methods. One such method works on the basis of multiple focused push beams (supersonic shear imaging) generating shear waves and ultra-high frame rate ultrasonic imaging of the resulting shear wave propagation to calculate the shear wave speed (SWS) at different depths within the tissue (19,20).
Previous studies (21,22) have applied SWE to assess the Achilles tendon and have demonstrated that SWE is valuable in quantitatively measuring the biomechanical properties of the Achilles tendon in vivo. However, SWE of the CET in LE has seldom been investigated, and the majority of studies only evaluated the CET with real-time sonoelastography (23,24). Therefore, in order to determine whether the SWE can be used in the diagnosis of LE, the present study assessed CET elasticity in patients with unilateral LE by quantitative SWE and monitored the disease condition before and after the non-operative therapy
This study was performed with the approval of the West China Hospital of Sichuan University Ethics Committee and written informed consent was obtained from each participant. There were 62 patients assessed by the orthopedic surgeon with a definitive clinical diagnosis of unilateral LE enrolled in this study from June 2018 to December 2018. The criteria for the diagnosis of LE included patients with a typical history, tenderness on the lateral epicondyle, and pain aggravated by extension and twist that radiated from the lateral forearm to the palm. Both elbows of all patients were examined by SWE before and after non-operative treatment. All of the patients received physical therapy for one month after the first evaluation. Participants were not included if they presented with a known history of bilateral LE, elbow fracture, elbow surgery, other systemic musculoskeletal disorders, or pregnancy. General information such as sex, age, dominant hand, and disease duration were recorded.
Elastography and thickness examinations were performed with an Aixplorer US system (SuperSonic Imagine, Aixplorer, Aixen-Provence, France) with an SL 4–15 MHz linear array probe (SuperSonic Imagine). Each patient was asked to sit in front of the examiner with the elbow flexed at 90° and the thumb up, and a relaxing position of the forearm was maintained during the measurement (Figure 1). The transducer was placed perpendicularly to the lateral epicondyle onto the skin surface with light contact using a coupling agent so as to avoid the compression effect (5,25). The CET attaching to the lateral epicondyle of the humerus was scanned in a longitudinal plane (a parallel orientation to CET fibers) for obtaining the standardized images, and the elastograms appeared as an overlay in dual-mode alongside B-mode image. The thickness of the CET was defined as the distance between the surface of the extensor tendon and the lateral epicondylar cortex. The color code indicated the tissue elasticity within the regions of interest (ROI) ranging from blue to red, representing soft to hard respectively. Then, the integrated SWE elastograms automatically displayed SWS and Young’s modulus, and SWS was the primary measurement used for the analysis. A superficial musculoskeletal setting was chosen, and the scale was adjusted to 600 kPa to acquire optimal and standardized images. The size of the ROI was fixed to 2 mm in all cases. Care was taken not to place the circular ROI outside the CET and close to bone. Figure 2 represents the standardized SWE image.
Two independent examiners conducted the elastographic measurements. An experienced operator 1 (10-year experience of musculoskeletal US) examined all 62 subjects. Operator 2 (5-year experience of musculoskeletal US) examined 20 subjects randomly chosen for the inter-observer reliability. Within 1 week after the ﬁrst examination, the same subjects were rechecked by operator 1 to assess intra-observer reliability. The two examiners were blinded to the results assessed by each other. After the non-operative treatment, operator 1 performed an elastographic evaluation of all patients again as previously described. Three separate SWE and thickness measurements were carried out from approximately the same area of the tendon, and the average mean, minimum, and maximum SWS (m/s) within each ROI were used for analysis, in addition to the average thickness.
Statistical analyses were performed using SPSS software (Version 20.0, IBM, NY, USA). Continuous variables were expressed as mean ± standard deviation. The Kolmogorov-Smirnov test was used to check for normal distribution data (Figure S1). The SWS and thickness of both the bilateral elbow and the lesion side before and after non-operative therapy were determined using the paired t-test. Pearson correlation was used in the correlation analysis between the demographic data and SWS. The intra- and inter-observer agreements were assessed with intraclass correlation coefﬁcients (ICCs). The ICCs between 0.75 and 0.9, and those greater than 0.90 were indicative of good and excellent reliability, respectively (26). Moreover, SWS of the CET was used for receiver operator characteristic (ROC) curve analysis. Cutoff values of mean, minimum, and maximum velocities (Cmean, Cmin, and Cmax) were chosen by maximizing the Youden index on the estimated curves. The sensitivity, specificity, and accuracy in the diagnosis of LE on the basis of SWE measurements were calculated. P<0.05 was considered a statistically significant difference.
A total of 62 patients with unilateral LE were included, and the baseline demographic characteristics of the study participants are summarized in Table 1.
The thickness in unilateral LE patients revealed a significantly higher value in affected CET (5.31±0.49 mm) than in healthy CET (3.95±0.37 mm) (P<0.05). In addition, a statistical difference in thickness of CET was detected between measures before and after non-operation therapy (P<0.05), and the thickness decreased after non-operation therapy (4.19±0.35 mm).
In healthy elbows, the elastograms demonstrated stiff tendon structures corresponding mostly to the red region, and the most blue or green areas were observed in elbows with LE (Figures 3,4). Moreover, the side-to-side analysis revealed a significant difference in terms of CET elasticity in the elbows with LE and in healthy control elbows, in which three velocities on the involvement side were significantly lower than those on the healthy side (P<0.05). Additionally, the SWS obtained in the elbows with LE showed significantly higher values in post-therapy than in pre-therapy (P<0.05) (Table 2).
The mean SWS was not associated with age and gender (P=0.363 and 0.192, respectively), and there was a low correlation between duration and mean SWS (P<0.05, R=0.258). However, an excellent correlation was obtained between dominance hand and involvement elbow (P<0.001, R=0.829). The results of inter- and intra-observer reliability of SWE measurements in 20 patients are presented in Table 3 and Figure S2. There were excellent inter- and intra-observer agreements, as ICCs ranged from 0.900 to 0.993.
The ROC curves for the diagnosis of LE based on the SWS are illustrated in Figure 5, in which the Cmean displays the highest diagnostic accuracy. When the Cmean was used, both the sensitivity (93%) and specificity (93%) were high. The mean SWS cutoff value for determining the diagnosis of LE was 12.2 m/s, with an area under the curve of 0.973 (95% CI: 0.949–0.997) (Table 4).
LE is more common in individuals 40–45 years of age or people with manual labor occupations, with men and women being affected equally (27,28). Despite tennis players making up less than 10% of the patient population, half of the tennis players do develop pain around the elbow, 75% of which is characteristic of true “tennis elbow” (29,30). The diagnosis is usually clinical, but some LE patients may benefit from additional imaging for a specific differential diagnosis. Nowadays, alternative imaging is needed to help complementary diagnosis because of some limits of US and MRI, of which elastography is gradually attracting public attention. Increased tendon compressibility, indicative of tendon softening, is considered as a new sonographic sign of common extensor tendinopathy (31). Therefore, evaluation of tendon softening by elastography may be a beneficial method for discrimination of patients with LE.
Lee et al. (13) measured the thickness of CET in patients with LE and found it was significantly thicker than that of healthy control subjects, which is consistent with our results. This phenomenon may be ascribed to the swelling caused by pathological changes of CET in LE, which leads to an increase in thickness. However, many dense collagen fibers contributing to increasing the thickness of normal CET probably results in stiffer elasticity (32).
Our study has demonstrated that the CET is softer in a diseased elbow when measured with SWE. Şendur et al. (32) found that there was no difference of the CET elasticity in healthy volunteers between bilateral elbows. The CET origin is made up of the extensor carpi radialis longus and brevis, extensor digitorum communis, extensor digiti minimi, and the extensor carpi ulnaris (30). Microtears may occur when the tendon experiences excessive stress which will lead to the degenerative changes within the tendon, namely tendinosis. LE, reflecting an overuse injury primarily due to repetitive strain from tasks and activities, is a degenerative process and is characterized of angiofibroblastic hyperplasia, micro-rupture, an abundance of fibroblasts, vascular hyperplasia, and notably, a lack of traditional inflammatory cells within the tissue (15,30,33). These changes have been shown to play the most critical pathophysiological role in the production of LE and make the tendon softer. A decrease in CET stiffness was previously reported in patients with LE by real-time sonoelastography (23,24), which is consistent with our results wherein SWE-based measurements of the CET could directly reflect the change associated with the effect of LE on the tendon. Moreover, Sahan et al. (17) found that there was a statistically significant difference in terms of elasticity between the long head of the biceps tendon (LHBT) tendinosis and control groups with SWE (LOGIQ E9 sonographic system, GE Healthcare) and concluded that SWE may be a useful diagnostic tool for LHBT tendinosis. Therefore, SWE may help to discriminate a healthy elbow from a LE elbow, and with the diagnosis of LE.
Another finding in our study was that the SWS was significantly higher in patients after non-operative management than before it. This may be ascribed to the individual difference in treatment effect and short treatment duration so that the post-therapy SWS did not increase to healthy levels. In fact, imaging is not necessary for LE unless the patient is not responding to nonoperative management modalities. However, our result demonstrated that SWE could not only help the diagnosis of the LE but also monitor the effectiveness of treatment.

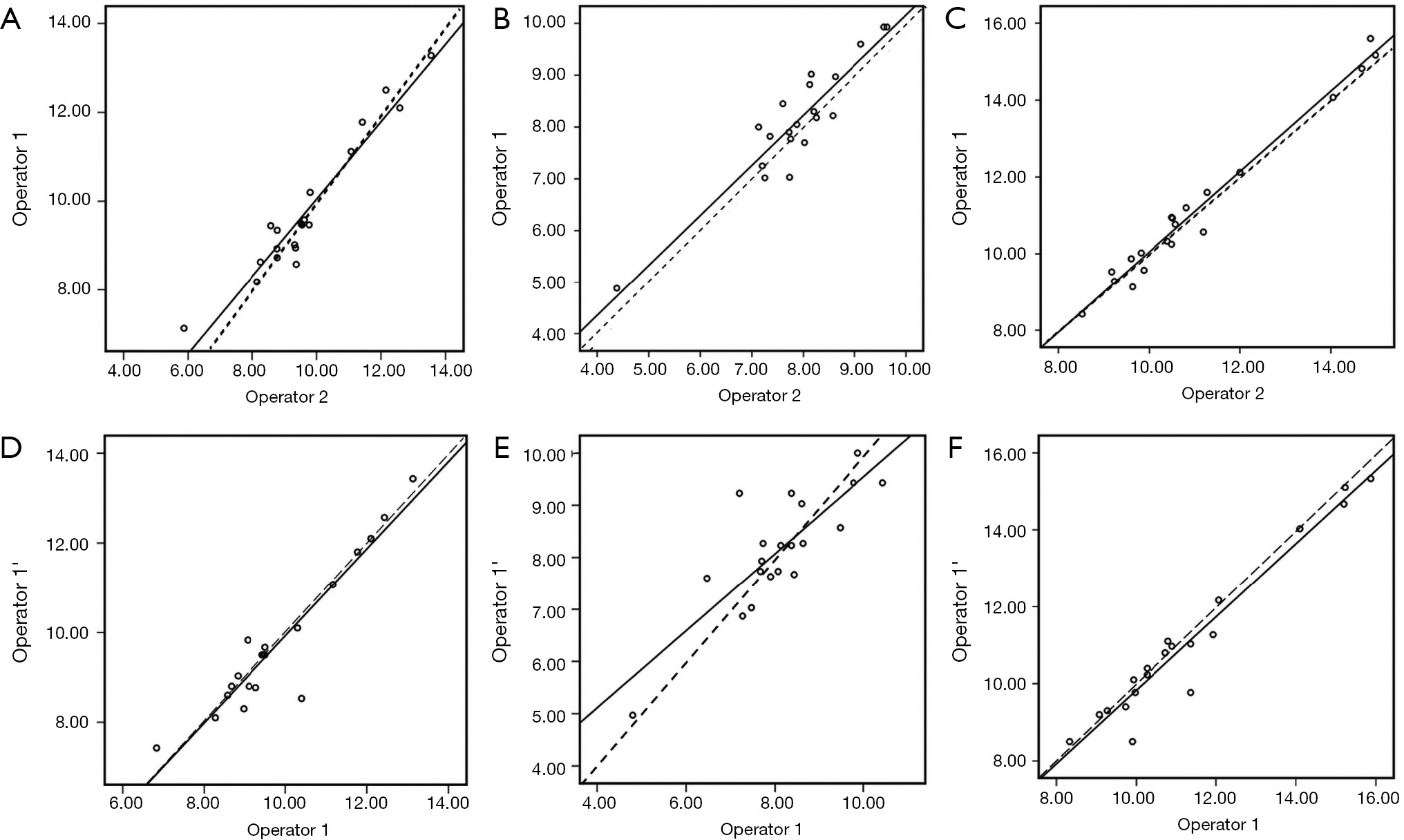

The intra- and inter-observer agreements were assessed in our study. The measurements with SWE for CET obtained excellent ICCs (values of ICCs ranged from 0.900 to 0.993 for Cmean, Cmin, and Cmax). The good intra- and inter-observer reliability indicates that this technique is reproducible for the evaluation of CET and seldom dependent on operators. Sendur et al. (32) applied SWE to evaluate the normal CET stiffness and showed the same significant interobserver agreement. However, they proposed that the results of the two observers were nearly equal because of the utilization of the same technique and learning methods, that may be why we achieved excellent ICCs. Therefore, the standard operating method makes SWE reliable and feasible to measure the LE.
The Cmean with a threshold of 12.2 m/s showed the best area under curve among mean, minimum, and maximum SWS, with a sensitivity and specificity of 93% and 93%, respectively. In the reported literature, both the sensitivity and specificity in the diagnosis of LE are better for SWE than for the gray-scale US (13-15). This finding implies it could favorably distinguish patients with LE from healthy subjects by using SWE, and the mean SWS could be used to identify LE better.
Our study has several limitations. First, the previous studies measured the three sections of CET (23), but we only chose one location where the lesion was. Another limitation was the small number of participants. In addition, we did not explore the correlations between SWE and clinical examinations, or the conventional US. We performed measurements only concerning SWE, and future studies would be essential to investigate the comparison among these different evaluation methods.
In this study, the SWS of CET was lower under SWE in LE elbows compared to healthy elbows, and it increased after treatment. The excellent intra- and inter-observer reliability indicates that SWE is a reproducible technique for the evaluation of CET. Moreover, the sensitivity and specificity for SWE were both good in the diagnosis of LE. In conclusion, SWE with high reproducibility and diagnostic accuracy could become a valid imaging method for LE and could help monitor the therapeutic effect.
Funding: This study was supported by the National Natural Science Foundation of China (81671696) and Sichuan Science and Technology Program (2018RZ0086, 2019YFS0219).
Conflicts of Interest: The authors have no conflicts of interest to declare.
Ethical Statement: The experimental protocols were approved by the West China Hospital of Sichuan University Ethics Committee. Informed consent was obtained from each participant for the procedures.
