Diagnostic performance of US-based FNAB criteria of the 2020 Chinese guideline for malignant thyroid nodules: comparison with the 2017 American College of Radiology guideline, the 2015 American Thyroid Association guideline, and the 2016 Korean Thyroid Association guideline

Hui Zhu, Yan Yang, Senmin Wu, Kai Chen, Hongxia Luo, Jianle Huang

Department of Ultrasound, the Second Affiliated Hospital and Yuying Children’s Hospital of Wenzhou Medical University, Wenzhou, China

Contributions: (I) Conception and design: J Huang, H Luo, H Zhu; (II) Administrative support: J Huang, H Luo, H Zhu; (III) Provision of study materials or patients: S Wu, K Chen; (IV) Collection and assembly of data: J Huang, Y Yang; (V) Data analysis and interpretation: H Zhu, Y Yang, J Huang, H Luo; (VI) Manuscript writing: All authors; (VII) Final approval of manuscript: All authors.

Correspondence to: Hongxia Luo, Jianle Huang. 109 Xueyuan Western Road, Wenzhou, China. Email: luohongxia0127@163.com; wenzhoufey@126.com.

Background: To investigate the diagnostic performance of the ultrasonography-based fine-needle aspiration biopsy criteria of the Chinese Thyroid Imaging Reporting and Data System (C-TIRADS) for malignant nodules compared to 3 other guidelines.

Methods: This study included 2,309 thyroid nodules in 1,697 patients with histopathological and cytopathological diagnoses of benign and malignant nodules from January 2018 to August 2020. The clinical and ultrasonographic features of the nodules were retrospectively reviewed and classified according to the Chinese guideline (C-TIRADS), the American College of Radiology guideline (ACR-TIRADS), the American Thyroid Association guideline (ATA guideline), and the Korean Thyroid Association guideline (K-TIRADS). The diagnostic performance of the guidelines and their unnecessary fine-needle aspiration biopsy rates were calculated using randomized, blinded trials.

Results: Of the 2,309 nodules, 1,418 (61.4%) were benign and 891 (38.6%) were malignant, with 884 (99.21%) papillary carcinomas. The accuracy of C-TIRADS was 84.71%, followed by the guidelines of ACR-TIRADS (82.11%), K-TIRADS (81.64%), and the ATA guideline (78.56%). Furthermore, the area under the receiver operating characteristic curve (AUC) was the highest for the C-TIRADS (0.905). Similar results were revealed for both the diagnostic performance and AUC of nodules smaller and larger than 10 mm. The ACR-TIRADS showed the lowest unnecessary biopsy rate (17.54%), followed by the C-TIRADS (22.61%), ATA guideline (27.90%), and the K-TIRADS (28.67%).

Conclusions: The C-TIRADS demonstrated high diagnostic performance and a relatively low unnecessary biopsy rate in detecting thyroid cancer compared to the 3 other guidelines. However, further understanding of the ultrasonography-based fine-needle aspiration biopsy criteria of the C-TIRADS should be gained in the future.

Keywords: Thyroid nodule; Chinese Thyroid Imaging Reporting and Data System (C-TIRADS); American College of Radiology guideline (ACR-TIRADS); American Thyroid Association (ATA); Korean Thyroid Association guideline (K-TIRADS)


Submitted Dec 15, 2020. Accepted for publication Apr 19, 2021.

doi: 10.21037/qims-20-1365


Introduction

Thyroid nodules are commonly seen in clinical practice, and their detection mainly depends on ultrasound (US) (1,2). The prevalence of thyroid nodules detected by US is 19–68% worldwide and 20–35% in China (3). Of all the nodules, only 10–15% are malignant, and distinguishing these nodules is essential to subsequent therapy (4). High-resolution US is recommended as the best tool for the diagnosis of thyroid nodules and for the identification of features such as echo, shape, margin, and calcification, among others. After Horvath converted the Thyroid Imaging Reporting and Data System (TIRADS) from the Breast Imaging Reporting and Data System (BI-RADS) in 2009, different international societies, including the American College of Radiology (ACR), American Thyroid Association (ATA), and the Korean Thyroid Association/Korean Society of Thyroid Radiology (KTA/KSThR) among others, published guidelines to aid in thyroid nodule diagnosis and fine-needle aspiration biopsy (FNAB) (5). However, the accuracy of US and US-based guidelines is low in differentiating benign and malignant thyroid nodules, ranging from 41.8–84.0% (6-8). Meanwhile, the criteria for FNAB differs among the various guidelines, with the ACR demonstrating the lowest unnecessary FNAB rate of 25.3% (7,8). In 2020, the Superficial Organ and Vascular Ultrasound Group of the Society of Ultrasound in Medicine of the Chinese Medical Association published the Chinese-TIRADS (C-TIRADS), which consisted of counting methods and proved to be more convenient and practical than weighting methods for clinical application (3). One study showed that the sensitivity of C-TIRADS was 92.7%, which was much higher than the other guidelines (9). However, little is known about its diagnostic performance and the unnecessary rate of US-based FNAB.

The purpose of this study was to investigate the diagnostic performance and unnecessary US-based FNAB rate of C-TIRADS for malignant nodules compared to the ACR, ATA, and KTA/KSThR guidelines.


Methods

This is a retrospective study. The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). The study was approved by the institutional board of the Second Affiliated Hospital and Yuying Children’s Hospital of Wenzhou Medical University (No. LCKY2020-415), and individual consent for this retrospective analysis was waived.

Patients

From January 2018 to August 2020, 1782 consecutive patients with 2417 thyroid nodules who underwent high-resolution US examination and US-guided FNAB or surgery afterward at the Second Affiliated Hospital and Yuying Children’s Hospital of Wenzhou Medical University were involved in this study. The inclusion criteria were as follows: (I) preoperative or pre-FNAB US examinations with US reports were performed, and the images were saved as JPEG files; (II) the target nodules had undergone initial surgical resection or US-guided FNAB within 2 weeks of US examination; (III) surgery or FNAB was carried out within 2 weeks of US examination. The exclusion criteria were as follows: (I) the target nodules lacked a final pathological diagnosis after surgical resection; (II) cytopathological diagnosis of atypia or follicular lesion of undetermined significance and suspicion of malignancy by US-guided FNAB. Finally, 108 nodules were excluded due to a lack of US characteristics (n=37), lack of final pathological diagnosis after surgical resection (n=51), cytopathological diagnosis of atypia or follicular lesion of undetermined significance (n=16), and suspicion of malignancy (n=4) after FNAB. A total of 2,309 thyroid nodules in 1,697 patients were included in this study, including nodules that were diagnosed as benign or malignant on the basis of surgery (n=1,933), and those with initial definitive benign or malignant results at US-guided FNAB (n=376; Figure 1).

Figure 1 Flowchart showing the study participants. US, ultrasound; FNAB, fine-needle aspiration biopsy.

US examination and image analysis

All US examinations and FNABs were performed with high-frequency linear probes ranging in frequency from 5 to 14 MHz, and a variety of commercially available US systems: Philips EPIQ7C, EPIQ7 (Philips Medical Systems, Best, the Netherlands), GE Volume E10, E8 (GE Medical Systems, Milwaukee, WI, USA), Siemens ACUSON OXANA 2, S2000 (Siemens Medical Solutions, Mountain View, CA, USA), Esaote MyLab Class C, MyLab65, MyLabTwice eHD (Esaote, Genoa, Italy), Hitachi HI VISION Preirus (Hitachi-Aloka Medical, Tokyo, Japan), and Mindray Resona 7T (Mindray Medical International, Shenzhen, China). The US images and clips included both the transverse and longitudinal real-time imaging of thyroid nodules. The position, maximum diameter, composition, echogenicity, shape, margin, and echogenic foci were evaluated for each nodule. The position of nodules was categorized into the left lobe, right lobe, or isthmus. The left and right lobes were divided into upper, middle, and lower zones. Two US experts (YY, HL) who had 23 and 15 years of experience in performing thyroid US examination and interventional procedures retrospectively reviewed the images and clips. They were blinded to the final diagnosis of nodules and the identification of patients. Before the study started, several clinical sessions of lecture-based and hands-on instructions that explained the C-TIRADS 2020, ACR-TIRADS 2017, ATA guideline 2016, and KTA/KSThR TIRADS 2016 (K-TIRADS 2016) in detail were provided to the US experts. Subsequently, they analyzed 100 nodules jointly to establish a standard. Finally, YY and HL reviewed 1154 and 1155 nodules which were divided at random.

The descriptions of composition, echogenicity, shape, margin, and echogenic foci for nodules differ among guidelines. In the C-TIRADS, the composition is categorized as solid (entirely composed of solid tissue, without any cystic components), predominately solid (solid components accounting for more than 50%), predominately cystic (solid components accounting for <50%), cystic (completely or almost completely cystic), and spongiform (multiple tiny cystic spaces occupying the entire nodules without aggregated solid tissues). The echogenicity is defined as hyperechoic, isoechoic, hypoechoic, markedly hypoechoic, and anechoic. The echogenicity of hyperechoic, isoechoic, and hypoechoic can be an echo higher, similar, or lower than the surrounding thyroid parenchyma. The echogenicity of markedly hypoechoic is defined as an echo lower than that of the strap muscles of the neck. Anechoic was seen in cystic nodules, and was usually accompanied by posterior enhancement. The shape is defined as orientation in the C-TIRADS, and is categorized as vertical or horizontal. Vertical nodules are considered those with an anteroposterior diameter larger than the longitudinal diameter on transverse or longitudinal sections. Meanwhile, horizontal nodules are considered those with an anteroposterior diameter less than or equal to the longitudinal diameter on both transverse and longitudinal sections. The margin of nodules is defined as circumscribed (clear, smooth, and complete curve), irregular (spiculated, angular, or microlobulated), ill-defined (difficult to distinguish from the surrounding thyroid parenchyma), and extrathyroidal extension (the nodule spread to the thyroid capsule). The echogenic foci in the C-TIRADS are categorized as microcalcifications, comet-tail artifacts, punctate echogenic foci of undetermined significance, macrocalcifications, peripheral calcifications, and no echogenic foci. Microcalcifications and punctate echogenic foci of undetermined significance refer to echogenic foci less than 1 mm and macrocalcifications larger than 1 mm. Punctate echogenic foci of undetermined significance refer to those echogenic foci which may be microcalcifications, dense colloid materials, or other components on gray scale US without shadowing (the echo behind the echogenic foci is lower than that of the surrounding tissue at the same depth) and comet-tail artifact (punctate echogenic foci with a dense tapering trail of echoes in the rear). Peripheral calcifications appear as a continuous or discontinuous ring or arc involving more than a third of the margin. Positive features in the C-TIRADS are solid composition, markedly hypoechoic vertical orientation, ill-defined/irregular margin/extrathyroidal extension, and microcalcifications. One point was added when any of these were present. Negative features include comet-tail artifacts, and we subtracted 1 point when they appeared (3). Unlike C-TIRAD, in the ACR-TIRADS, the composition is categorized as cystic or almost completely cystic, spongiform, mixed cystic or solid, and solid or almost completely solid. The shapes of nodules are measured on transverse sections. Taller-than-wide shape, similar to vertical in the C-TIRADS, is defined as measurements higher than the width of nodules. Similar to C-TIRADS, the margin of nodules in the ACR-TIRADS is defined as smooth, ill-defined, lobulated or irregular, and extrathyroidal extension (frank invasion of adjacent soft tissue and/or vascular structures). However, an ill-defined margin does not affect the calculated points in the ACR-TIRADS. The echogenic foci are categorized as none or large comet-tail artifacts, macrocalcifications (caused acoustic shadowing), peripheral calcifications (complete or incomplete along margin), and punctate echogenic foci (smaller than macrocalcifications with non-shadowing). The definitions of echogenicity in the ACR-TIRADS are similar to those in C-TIRADS. Very hypoechoic in the ACR-TIRADS equates to markedly hypoechoic in C-TIRADS (10). The ATA guideline focuses on irregular margins, microcalcifications, taller-than-wide shape, disrupted rim calcifications with small extrusive hypoechoic soft tissue component, and extrathyroidal extension. Similar to ACR-TIRADS, the taller-than-wide shape in the ATA guideline is measured on transverse sections. However, the echogenicity of nodules does not include markedly hypoechoic as in the 2 aforementioned guidelines. Extrathyroidal extension is divided into minor extrathyroidal extension and gross extrathyroidal invasion, which are included in the ATA intermediate risk and high risk, respectively (11). The K-TIRADS mainly focuses on microcalcification, nonparallel orientation, and spiculated/microlobulated margin. The shape of nonparallel orientation (equal to vertical in the C-TIRADS) is measured on transverse or longitudinal sections (5).

The frequency of malignancy and diagnostic performance based on classified categories of each guideline were calculated according to the guidelines of the C-TIRADS (3), ACR-TIRADS (10), ATA guidelines (11), and the K-TIRADS (5). Furthermore, the unnecessary FNAB rate was determined with retrospective analysis based on the biopsy criteria of each guideline. The criteria of FNAB recommendations for each guideline are listed in Table 1.

Table 1
Table 1 Summary of US FNAB recommendations of the 4 guidelines for thyroid nodules
Full table

US-guided FNAB and surgery

US-guided FNAB was performed by experienced radiologist on nodules suspicious for malignancy based on their US features. In brief, a 25-gauge needle attached to a 2-mL disposable syringe was used to aspirate the thyroid nodule. After aspiration was performed at least twice, the aspirated material was expelled on 2 glass slides, followed by 95% alcohol for cell block processing or saline for Papanicolaou staining. One of 8 experienced cytopathologists reviewed the slides. Cytopathological reports at our institution were categorized according to the criteria recommended by the Bethesda classification (12). Total or near total thyroidectomy or hemithyroidectomy was performed in patients whose nodules were highly suspicious for malignancy and who had multiple tumors or lymph node (LN) metastasis according to the ATA guideline. Surgery was performed by 4 experienced surgeons at our institution.

Histopathological and cytopathological results from surgery or US-guided FNAB were considered as the reference standard. Nodules with benign or malignant results at surgery or initial US-guided FNAB were considered benign or malignant, respectively.

Statistical analysis

Statistical analysis was performed at the patient level as well as the nodule level. Patient and nodule characteristics are presented as mean ± standard deviation (SD), while the calculated malignancy risk of each guideline is presented as a percentage. The formulas for calculating the malignancy rates of different categories for different guidelines were as follows: malignancy rate for a particular category = (nodules proven as malignant pathologically or cytopathologically in this category)/(all the nodules in this category). The diagnostic performance of different guidelines for malignancy prediction was compared in terms of sensitivity, specificity, positive predictive value, negative predictive value, and accuracy using the following generalized estimating formulae: sensitivity = true-positive/(true-positive + false-negative) (TP/TP + FN); specificity = true − negative/(true-negative + false-positive) (TN/TN + FP); positive predictive value = TP/(TP + FP); negative predictive value = TN/(TN + FN); accuracy = (TP + TN)/(TP + TN + FP + FN). To further assess the diagnostic value of the guidelines, the areas under the receiver operating characteristic (ROC) curves (AUC) were compared. In malignant nodule diagnosis, the potentially unnecessary FNAB rates and false-positive rates were calculated using the following equations: unnecessary FNAB rate = the number of benign nodules among FNAB-required nodules/total nodules; false-positive rate = FP/(FP + TN). These rates were compared among guidelines. The association between characteristics or categories and final diagnosis was evaluated with Student’s t-test, the Mann-Whitney U test (for continuous variables), and the chi-square test (for categorical variables). Statistical analyses were performed using SPSS software 19.0 (IBM Corp., RRID:SCR_002865). A P value less than 0.05 was defined as a significant difference.


Results

Clinical and US characteristics

Of the 2,309 thyroid nodules in the 1,697 patients included, the number of benign nodules was 1,418 (61.4%) and the number of malignant nodules was 891 (38.6%). There were 1336 females and 361 males, and the mean age was 49.7±12.2 years (age range, 9–87 years; P<0.01). Of all the nodules, the mean size was 13.1±10.6 mm (range, 0.2–69 mm; P<0.01). The numbers of benign and malignant nodules in the upper zone, middle zone, lower zone, and isthmus were 248 and 235, 548 and 336, 594 and 283, and 28 and 37, respectively (P<0.01; Table 2). Their US features are also shown in Table 2. Among the 891 malignant nodules, surgery was performed on 807 nodules. The majority of them were papillary thyroid carcinomas (PTC; n=800), and included 20 follicular variant thyroid carcinomas. The remaining 7 nodules included 4 follicular carcinomas, 2 medullar carcinomas, and 1 poorly differentiated carcinoma. Among the 1,126 benign nodules diagnosed via surgical resection, 967 were nodular hyperplasias, 30 were follicular adenomas, 74 were thyroiditis, 2 were eosinophilic adenomas, 7 were thyroid fibrosis, and 46 were cysts. The number of nodules in each size category is shown in Table 3.

Table 2
Table 2 Clinical characteristics and US features
Full table
Table 3
Table 3 Number of nodules in different size categories
Full table

Malignancy risk according to the categories in the 4 guidelines

The results of malignancy risk according to the 4 guidelines (ACR-TIRADS, ATA guidelines, K-TIRADS, and C-TIRADS) are listed and compared in Table 4. With the suggested risk of malignancy proposed by each guideline, we found that the calculated malignancy risk in each category matched well within the suggested range, except for low suspicion, intermediate suspicion, and high suspicion categories in the ATA guideline, and low suspicion and intermediate suspicion categories in the K-TIRADS. A total of 108 isoechoic nodules (4.9%) with suspicious US features could not be classified as any specific pattern with the ATA guideline.

Table 4
Table 4 Comparison of malignancy risk according to categories in various guidelines
Full table

Diagnostic performance of the 4 guidelines

Table 5 shows the diagnostic performance of the 4 guidelines with different cutoffs. Based on the results, we set the TIRADS 5 (TR5, highly suspicious), high suspicion, the K-TIRADS 5 (high suspicion), and the C-TIRADS 4C (C-TR 4C) as the cutoffs of malignancy for the ACR-TIRADS, ATA guideline, the K-TIRADS, and the C-TIRADS, respectively. Among the guidelines, specificity, positive predictive value, and accuracy were highest with the C-TIRADS (90.55%, 83.37%, and 84.71%, respectively) followed by the ACR-TIRADS (74.82%, 70.05%, and 82.11%, respectively) and the K-TIRADS (76.02%, 70.36%, and 81.64%, respectively). The ATA guideline had higher negative predictive value and sensitivity (96.77% and 96.51%, respectively) compared to the ACR-TIRADS (94.99% and 93.71%, respectively), the K-TIRADS (92.77% and 90.57%, respectively), and the C-TIRADS (85.43% and 75.42%, respectively). For further evaluation, ROC curves of each guideline were plotted; the AUCs were 0.854, 0.824, 0.849, and 0.905 for the ACR-TIRADS, ATA guideline, K-TIRADS, and C-TIRADS, respectively (all P<0.01; Table 6). The results indicated that the AUC of the C-TIRADS was significantly higher than the other guidelines.

Table 5
Table 5 Comparison of diagnostic performance for malignant thyroid nodules in various guidelines
Full table
Table 6
Table 6 The AUCs for ROC curves of different guidelines
Full table

In order to determine the diagnostic performance of guidelines in terms of different nodule sizes, we chose a cutoff diameter of 10 mm, which has been used as a criterion for microcarcinoma for pathologic diagnosis (13). The sensitivity, specificity, positive predictive value, negative predictive value, and accuracy of guidelines for nodules smaller or larger than 10 mm are shown in Table 7. The C-TIRADS presented with the highest specificity, positive predictive value, and accuracy in nodules smaller and larger than 10 mm. And the ATA guideline revealed the highest negative predictive value and sensitivity in both groups. The ROC curves of the ACR-TIRADS, ATA guideline, the K-TIRADS, and the C-TIRADS yielded AUCs of 0.793, 0.733, 0.791, and 0.858, respectively, for nodules smaller than 10 mm (Table 6; all P<0.01), and 0.901, 0.862. 0.885, and 0.940, respectively, for nodules larger than 10 mm (10 mm included; Table 6; all P<0.01). Thus, we could conclude that the diagnostic performance of the C-TIRADS was significantly higher than that of other guidelines for nodules regardless of their size.

Table 7
Table 7 Comparison of Diagnostic Performance for Different Nodule Sizes in Various Guidelines
Full table

Comparisons of unnecessary FNAB rates of the 4 guidelines

Among the 4 guidelines, the ACR-TIRADS had the lowest unnecessary FNAB rate (17.54%), followed by the C-TIRADS, ATA guideline, and the K-TIRADS (22.61%, 27.90%, and 28.67%, respectively), and the same order was seen in terms of the false-positive rates for FNAB (28.56%, 36.81%, 45.75%, and 46.69%, respectively; Table 8). Furthermore, the number of malignant nodules not recommended for FNAB was 618, 522, 594, and 607 for the ACR-TIRADS, C-TIRADS, ATA guideline, and the K-TIRADS, respectively.

Table 8

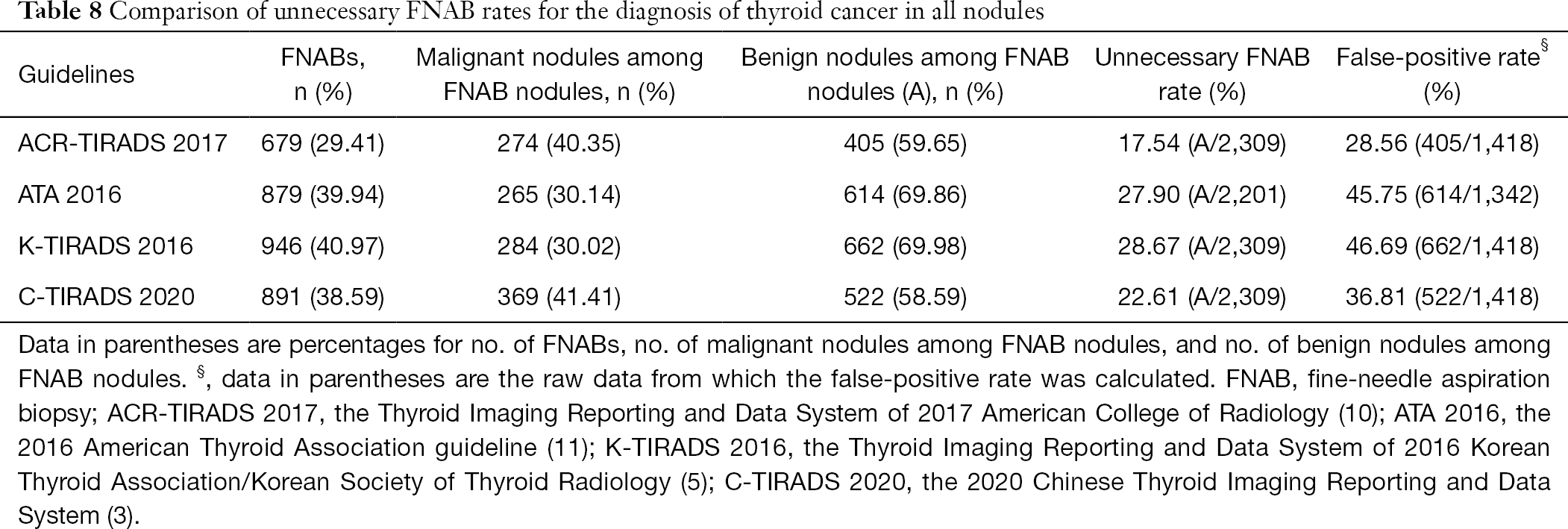

Table 8 Comparison of unnecessary FNAB rates for the diagnosis of thyroid cancer in all nodules
Full table

Discussion

Guidelines such as the ACR-TIRADS, C-TIRADS, ATA guideline, and the K-TIRADS are risk stratification systems that use risk category criteria. The main purpose of these guidelines is to distinguish malignant nodules from benign ones in a quick and relatively accurate way. They classify nodules into different categories, calculate the malignancy risk for each category, and recommend FNAB based on the category and size of each nodule. Then, the FNAB results confirm whether the nodules are malignant or benign, and surgery is taken into account if necessary. In this study, we evaluated the clinical and US features of 2,309 nodules in 1,697 patients, compared the diagnostic performance of the ACR-TIRADS, C-TIRADS, ATA guideline, and the K-TIRADS for these nodules using the cutoff of risk categories, and reviewed the unnecessary FNAB rates of each guideline retrospectively. Nodules with initial surgical resection or US-guided FNAB were included. As this was a retrospective study, we lacked a follow-up of nodules diagnosed with atypia or follicular lesion of undetermined significance and suspicion of malignancy by FNAB. Thus, they were excluded, and the pathological or cytopathological diagnoses of nodules were used as the gold standard. Then, we calculated the diagnostic performance using different cutoffs and chose the best one as the cutoff of each guideline. Finally, our results showed a variable range of sensitivity and specificity, from 75.42% to 96.51%, and 67.06% to 90.55%, respectively. The C-TIRADS had the highest specificity, positive predictive value, and accuracy; however, it also had the lowest sensitivity, regardless of nodule size. The AUC for the ROC curve of the C-TIRADS ranked first among the 4 guidelines, both in nodules smaller than 10 mm and in those larger than 10 mm. In nodules larger than 10 mm, the C-TIRADS showed higher sensitivity, specificity, accuracy, and AUC than those in subcentimeter nodules. Although the AUC was one of the parameters assessing global diagnostic accuracy, we believed that the high AUC of the C-TIRADS in different nodule sizes was not only due to its high specificity, but also due to having a relatively high negative predictive value and the highest positive predictive value among the guidelines. This meant that although the C-TIRADS could classify some malignant nodules into lower categories, the nodules included in the C-TR 4C and C-TR 5 were most likely malignant nodules. This helped in distinguishing malignant nodules from benign ones accurately. Furthermore, the higher sensitivity, specificity, accuracy, and AUC in nodules larger than 10 mm indicated its better diagnostic performance in these nodules. In addition, we found that the calculated malignancy risks in the ACR-TIRADS and C-TIRADS were generally well correlated within the range of the suggested malignancy risk. However, the calculated malignancy risk of low suspicion, intermediate suspicion, and high suspicion of the ATA guideline, and low suspicion and intermediate suspicion of the K-TIRADS, were lower than that of the suggested malignancy risk.

With the development of ultrasonography, the detection of thyroid nodules, especially those smaller than 10 mm or even 5 mm, has increased rapidly. Meanwhile, the description of US features for each nodule is more precise than before. Studies have proven that US features including solid composition; markedly hypoechoic, ill-defined, or irregular margins; extrathyroidal extension; vertical orientation; and microcalcifications are independent features of malignancy (9,14). The 4 guidelines we chose were risk stratification systems determined by these features. The 2017 ACR-TIRADS estimated the malignancy of nodules by total scores, adding the score of each US feature. Different categories, ranging from TR 1 to TR 5, were determined by different scores. However, the score of each US feature was set mainly by expert opinion instead of statistical analysis (14). Hence, the accuracy of ACR-TIRADS in the malignancy prediction of thyroid nodules remains questionable. The 2016 ATA guideline and the 2016 K-TIRADS 2016 are risk stratification systems that do not use mathematical calculations. Studies revealed that about 3.4–13.9% of nodules did not meet the criteria for any pattern in the ATA guideline (i.e., isoechoic or hyperechoic solid nodule with 1 or more of the following features: microcalcifications, taller-than-wide shape, extrathyroidal extension) (7,15,16), it may be thus impractical to use the ATA guideline in clinical practice. In our study, we also found 108 (4.7%) nodules which did not meet the criteria. With a malignancy risk of 29.63%, they were hard to categorize, as their calculated malignancy risk was lower than that of high suspicion but higher than that of intermediate suspicion. With regard to the FNAB criteria of the ATA guideline, we consider that FNAB should be selectively indicated in these nodules when the size is larger than 10 mm (the FNAB cutoff of intermediate suspicion and high suspicion in the ATA guideline). Similar to the ATA guideline, the K-TIRADS is a pattern-based system, and its categories are determined by weighting different US features, such as microcalcifications or solid composition. Considering the fact that the same US features exhibit different weights in different studies, it was hard to assume that the K-TIRADS weighted the US features in an appropriate manner (17-19). This might explain the reason why the calculated malignancy risks of some categories in the K-TIRADS and the ATA guideline were lower than those suggested. Moreover, the diagnosis of atypia or follicular lesion of undetermined significance and suspicion of malignancy based on FNAB were excluded in our study, which might have led to a high proportion of PTC in malignant nodules. As US features like echogenic foci are more common in PTC than in follicular thyroid carcinomas, and follicular thyroid carcinomas are often classified as low suspicion in the guidelines, the number of malignant nodules might be underestimated as low suspicion in the K-TIRADS and ATA guideline (11). The C-TIRADS was established based on the counting method, which is more convenient and practical in clinical practice than weighting methods (9). The counting method was thought to be the simplest as compared to previously published risk stratification systems, and the score of each US feature is determined by statistical analysis (9). In one study, all examined nodules met the criteria of the C-TIRADS regardless of the size or US features, and its diagnostic performance was satisfactory compared to the 6 guidelines compared, including the ACR-TIRADS, ATA guideline, and the K-TIRADS. This was consistent with our study. The C-TIRADS had the highest specificity, accuracy, and AUC for nodules smaller or larger than 10 mm. This could be explained by the lower size criterion of nodules for FNAB. Meanwhile, the high sensitivity of 96.51% of the ATA guideline might probably have been due to the higher prevalence of PTC in this study. As for the diagnostic performance of the 4 guidelines apart from the C-TIRADS, several studies have shown similar results to our own (7,20).

Research has been published regarding the relationship between nodule location and nodule malignancy. However, the results have been conflicting. Ramundo’s report showed that nodules in the middle zone of the thyroid had a higher risk of malignancy, while Jasim reported that those in the isthmus had the highest risk of malignancy (21,22). Meanwhile, Zhang et al. concluded that nodules in the upper zone of the thyroid had the highest malignancy risk (23). In this study, we found that nodule location in the isthmus had the highest malignancy risk (56.92%), followed by the upper zone (48.65%). Furthermore, we found that the sex and age of patients were significantly different between benign and malignant masses, and the female-to-male ratio was 4.56 (785:172) and 2.92 (551:189), respectively. As the malignancy risk of nodules can be influenced by nonthyroid nodular variables, such as gender, ethnicity, age, family history, body mass index, and radiation exposure (9), these results appear reasonable.

In considering whether thyroid nodules should be subjected to FNAB, a US-based risk stratification system plays an essential role (11-13,24). However, US features of each category and size cutoffs for FNAB differ among guidelines. A deep understanding of FNAB is required to optimize patient management (7). The criteria of FNAB for each guideline are listed in Table 1 in this study. The percentage of nodules that underwent FNAB ranged from 29.41% to 40.97% for the guidelines. The K-TIRADS had the highest percentage of FNAB nodules and the highest unnecessary FNAB rate. In contrast, the percentage of FNAB nodules and unnecessary FNAB rate of the ACR-TIRADS was the lowest. In the ATA guideline, the percentage of FNAB nodules and the unnecessary FNAB rate were relatively high. Furthermore, when the “not specified” pattern was considered to undergo FNAB with a size cutoff of 10 mm, the unnecessary FNAB rate of the ATA guideline increased to 28.58%. This could have occurred because the wrong cutoff of FNAB was set for those nodules. The C-TIRADS had a relatively low percentage of FNAB nodules and a low unnecessary FNAB rate. Together with its high specificity, accuracy, and AUC for the ROC curve, the diagnostic performance of the US-based FNAB criteria for the C-TIRADS indicated that this guideline was better than that of the ACR-TIRADS, ATA guideline, and the K-TIRADS. Although thyroid cancers are slow-growing tumors and have a better prognosis than other malignant carcinomas, delayed diagnosis may influence the outcome of patients (22,25). However, Nam et al. reported that PTC without suspicious US features exhibited better prognosis than those that met the criteria (23). Furthermore, unnecessary FNAB may cause considerable anxiety to patients, and also involves a substantial financial and medical burden (7). Thus, the use of FNAB should be considered in an appropriate indication after a shared decision is made with patients. As can be seen, US practitioners require a deeper understanding of the US-based FNAB criteria of the different guidelines.

Our study had some limitations. First, this study only included nodules from 1 hospital, which does not fully represent the Chinese population. Second, the majority of diagnostic criteria we used were pathological results, with the remaining being from definite cytopathological results, which might have led to selection bias. Third, the malignancy rate and PTC proportion were high (38.6% and 99.1%, respectively). This might have been due to the low or intermediate suspicion of US features of follicular carcinomas, which would have led to follow-ups instead of surgery or FNAB for these nodules. Furthermore, our hospital is a tertiary referral center that treats patients with more serious diseases. Our hospital is also located in an urban city in Zhejiang province, where the incidence of thyroid cancer was reported to be higher than other places (26). Taken together, these factors might have influenced the diagnostic performance of the 4 guidelines. Fourth, most guidelines do not recommend the management of nodules smaller than 10 mm, especially those smaller than 5 mm. However, the C-TIRADS, as an exception, recommends FNAB for nodules smaller than 5 mm in certain conditions. With 53.2% of nodules smaller than 10 mm in this study, it limited the comparison of the C-TIRADS with other guidelines, and the comparison of our results with those of other previous studies, to some degree. Additionally, we did not evaluate the variation in interpretation among the readers. However, we explained the guidelines and had the radiologists analyze nodules for standardization purposes before the study started to avoid reading bias.


Conclusions

In conclusion, the 2020 C-TIRADS guideline demonstrated high diagnostic performance and a relatively low unnecessary FNAB rate in detecting thyroid cancer compared to the 2017 ACR-TIRADS, 2015 ATA guideline, and the 2016 K-TIRADS. US practitioners should acquire a greater understanding of the US-based FNAB criteria of the C-TIRADS.


Acknowledgments

Funding: None.


Footnote

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at http://dx.doi.org/10.21037/qims-20-1365). The authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). The study was approved by the institutional board of the Second Affiliated Hospital and Yuying Children’s Hospital of Wenzhou Medical University (No. LCKY2020-415), and individual consent for this retrospective analysis was waived.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
