High-resolution reduced field-of-view diffusion-weighted magnetic resonance imaging in the diagnosis of cervical cancer
Currently, cervical cancer has become the fourth most common cancer among women in the world. According to the GLOBOCAN 2020 database of the International Agency for Research on Cancer (IARC), approximately 604,000 women have been diagnosed with cervical cancer in 2020. Cervical cancer tends to evolve from years of precancerous or high-grade lesions (1). Therefore, early identification and treatment of cervical cancer can result in a very high cure and survival rate, hence early screening of cervical lesions is critical (2). Magnetic resonance imaging (MRI) has now become the single best modality for the preoperative staging of cervical cancer. It plays an important role in the initial assessment of patients, from the extent of disease to treatment options and follow-up efficacy, and its superior soft tissue resolution improves Federation International of Gynecology and Obstetrics (FIGO) clinical staging accuracy and makes treatment options more reasonable (3).
Diffusion-weighted MR imaging (DWI) utilizes Brownian motion or free diffusion phenomena in water molecules to provide a non-invasive means of detecting the restricted diffusion motion of water molecules in vivo (4). In a completely unrestricted environment, the motion of water molecules is completely random. However, due to tissue morphology, physiology, and pathology, water molecular movement in human tissues is not completely random, and tissue types such as tumors, cytotoxic edema, abscess, and fibrosis all appear as dispersion restrictions (5). Thus, DWI can reflect cytopathic lesions by the motion of water molecules, and tumors appear as high signal on high b value images, exhibits dispersion restriction on apparent diffusion coefficient (ADC) graphs, and ADC values decrease, that can be distinguished from normal tissues. Currently, the single-shot echo-planar imaging (SS-EPI) sequence obtains the entire k space after a single excitation pulse, and the image is not subject to shadow effects from motion-induced phase errors. However, its long readout times during T2* attenuation result in a severely blurred image along the phase-encode direction; on the other hand, the interval between the K space profiles is long due to the polarization effect causing deformation and artifacts (6). SS-EPI technology is used for conventional field-of-view (c-FOV DWI) imaging, when SS-EPI and DWI are combined to further increase resolution without pronounced geometric distortion, the resulting images are often corrupted by a high level of noise and artifact due to the numerical restriction in sensitivity encoding, and the zonal oblique multislice Echo-Planar Imaging (ZOOM-EPI) technology is used for high-resolution reduced field-of-view diffusion-weighted MR imaging (r-FOV DWI), which can significantly improve image quality (IQ) and significantly reduce image distortion and magnetic sensitivity artifacts (7).
In recent years, with technological development, two-dimensional spatially selective radiofrequency pulses (2D RF) and 180 reunion pulse techniques have been applied for r-FOV imaging. 2D RF consists of an RF pulse along the horizontally selected direction and RF pulses along the PE direction while exciting a certain thickness of the level, thus reducing the field of view and PE step length along the PE direction while shortening the EPI echo chain and echo duration without increasing the scan time. Compared with conventional SS-EPI sequences, r-FOV imaging techniques reduce image deformation and magnetically sensitive artifacts and improve image spatial resolution. In SS-EPI, the k space is sampled line by line by a signal generated by a single 90-degree RF excitation pulse, while the combination of 2D RF and 180 reunion pulses allows multi-layer imaging while suppressing the fat signal (8,9). ZOOM-EPI with r-FOV imaging involves selecting the target level using a 90 RF pulse, followed by oblique plane excitation with a 180 reunion pulse, where the 180 reunion pulse is not parallel to the 90 RF pulse, but at an angle to reduce the field of view (10-12).
A number of studies confirmed that the application of small vision dispersion weighted image technology can significantly improve IQ, significantly reduce image deformation and magnetic sensitive artifacts in the kidney (11), spinal cord (13), brain (14), nerve (15), neck (16), prostate (17), pancreas (18,19), uterus (20-22), breast (23), rectum (12,24), thyroid parts (25). These will improve the doctor’s diagnosis confidence, and even help to improve the accuracy of tumor staging.
At present, the research on r-FOV imaging technology in cervical cancer has not been very perfect (20,22). Colposcopy-guided biopsy is used to diagnose cervical cancer and precancerous lesions, which are then staged according to the FIGO staging criteria (26). The FIGO authorized imaging and pathologic findings (if any) to be used in staging in 2018 (27). In the preoperative staging of cervical cancer, MRI has been demonstrated to be extremely accurate (28). As a result, MRI is the preferred method for local staging, assessing therapy response, detecting tumor recurrence, and monitoring cervical cancer patients (29). The primary goal of an MRI scan is to detect peritumoral infiltration and lymph node metastasis (LNM) (30). Wang et al. found that T2WI and DWI-based radiography images had a high prediction power for pelvic LNM in early cervical cancer (31).
FIGO stage IVA uterine cervical carcinoma with bladder mucosal invasion is associated with a poor prognosis. Although MRI can rule out bladder invasion and avoid cystoscopy, the significant false-positive rate can be troublesome. Takeuchi et al. reported that in 13 of the 15 instances, cystoscopy confirmed mucosal invasion. In all 15 cases, the border between the tumor and the bladder wall was vague on T2WI but obvious on r-FOV DWI. The diagnosis of mucosal invasion on r-FOV DWI exhibited the sensitivity of 100%, the specificity of 50%, the accuracy of 93%, the positive predictive value of 93%, and the negative predictive value of 100% (32). The r-FOV DWI sequence outperformed the full field-of-view DWI sequence in terms of IQ and lesion visibility. Furthermore, r-FOV sequences can be utilized to assess FIGO cervical cancer staging (33). The aim of this study was to compare the value of c-FOV DWI and r-FOV DWI in cervical cancer diagnosis by qualitative analysis of IQ and quantitative analysis of ADC.
The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). The study was approved by the Ethics Committee of Sun Yat-sen University (ID of the approval: 2020-536). All patients signed an informed consent form before the MR examination was performed. Informed consent was obtained from each patient for this study analysis.
Forty-nine patients with cervical cancer who underwent MRI between October 2020 and April 2021 were collected. Inclusion criteria for patients with cervical cancer: (I) patients with cervical cancer confirmed by surgical resection or puncture biopsy; (II) all patients had preoperative MRI; (III) none of the patients had undergone other invasive procedures on the uterus or cervix. Exclusion criteria: (I) history of conization or loop electrosurgical excision procedure (LEEP) before MRI; (II) chemotherapy or radiotherapy before MRI; (III) poor IQ in severe distortion in some patients due to the effect of bowel contents. Of these excluded patients, 12 patients underwent conization or LEEP, 8 patients underwent radiotherapy before the examination, and 4 patients with poor IQ of MR examination results. The remaining 25 patients with cervical cancer (age 28–77 years, mean age 53.76±11.39 years) were finally included.
Twenty age-matched women with non-cervical lesions were set up as controls (age range 26–64 years, mean age 47.15±10.52 years). Their inclusion criteria: (I) pelvic uterine MRI for other reasons; (II) no previous uterine or cervical lesions and no uterine or cervical treatment. Exclusion criteria: (I) history of uterine or cervical pathology or individuals who have undergone interventional diagnostic or therapeutic procedures on the uterus or cervix; (II) the patient’s MRI was severely distorted by the intestinal contents.
Magnetic resonance examinations
All patients received a 3.0T MRI scan (Ingenia CX 3.0T; Philips Medical System, Best, The Netherlands) using a digital RF receiver coil with a 16-element phased array. The patient was lying on an examination bed with the foot extended forward and the pubococcygeal joint positioned at a center of 5 cm (34). There are still no uniform criteria for intestinal preparation before cervical MRI (20). Thus, no intestinal preparation was performed. The scanning sequence includes r-FOV DWI and c-FOV DWI. The imaging parameters for both sequences were as follows (Table 1).
|Pixel resolution (mm)||0.81×0.81||1.88×1.88|
|Slice thickness (mm)||3||4|
|No. of slice||24||23|
|b value (sec/mm2)||0/1,000||0/1,000|
|Flip angle (°)||90||90|
r-FOV DWI, reduced field-of-view diffusion-weighted MR imaging; c-FOV DWI, conventional field-of-view diffusion-weighted MR imaging; TR/TE, the repetition time/the echo time; FOV, field-of-view; NEX, number of excitations; BW, bandwidth.
Images of cervical cancer patients from c-FOV DWI and r-FOV DWI sequences with a b value of 1,000 s/mm2 were selected and evaluated by two radiologists in a double-blind manner. The evaluation included anatomical details, image clarity, image geometric distortion, artifacts, lesion significance, and IQ of both DWI sequences using a 4-point scale (12,20,22) as shown in Table 2.
|Image anatomy details||Unrecognized||Indistinct||Clear profile and fuzzy edges||Clear profile and clear edges|
|Image sharpness||Un-sharpness||Slightly sharper||Sharper||Sharp|
|Image geometric deformation||Unrecognizable lesion||Inconsistent with the anatomical sequence image profile||Consistent slightly with the anatomical sequence image profile||Consistent with the anatomical sequence image profile|
|Ghost shadows, motion, and magnetically sensitive artifacts||Serious||Obvious||Slight||Few or none|
|Lesion significance||Fail to identify||Identifiable||Fuzzy edge||Clear edges|
|Overall image quality||Unable to diagnose||Has a certain impact on the diagnosis||Basic satisfied diagnosis||Good for the diagnosis|
Signal-to-noise ratio (SNR) and contrast-to-noise ratio (CNR)
SNR and CNR was measured by technicians at the Philips post-processing workstation (IntelliSpace Portal, version 9.0), and regions of interest were manually outlined on images with 1,000 s/mm2 b values of c-FOV DWI sequences and r-FOV DWI sequences, respectively, using the measurement tools of the post-processing workstation. A circular region of interest (ROI) was used, and the largest level of the cervical lesion was selected as a reference for the T2WI level fracture image, and three ROIs were randomly outlined to avoid necrosis, signal inhomogeneity, and artifact areas, with an ROI size of approximately 10 mm2 (9.7–10.3 mm2). The signal mean and standard deviation of each ROI were taken, and the mean of the three values was calculated. Meanwhile, normal muscle tissue (gluteus maximus) signals were measured at the same image level in all patients, the signal mean and standard deviation of each ROI were taken, and the average of the three was calculated (11,12,20,22).
SNR (Eq. ) is defined as the percentage between the mean signal intensity inside the tumor (Stumor) and the standard deviation (SD) of background noise. CNR (Eq. ) is a measure used to determine IQ, where Stumor and Stissue are signal intensities for signal-producing tumor and tissue in the ROI and σo is the standard deviation of the pure image noise (SDair). The formula is shown below (24):
At the post-processing workstation, technicians blindly measured the ADC values, and the ROI outlined on the image with a b value of 1,000 s/mm2 was copied to the corresponding ADC map to ensure that the ADC diagram matched the ROI region with a b value of 1,000 s/mm2, and the average of the three ROIs were taken after the measurement. Figure 1 depicts the ROI outline standard reference.
All statistical analyses were performed using SPSS v.23.0 (IBM SPSS Statistics, Armonk, NY, USA), and P<0.05 has statistical significance. The images were assessed by two independent readers, and Cohen’s Kappa coefficient (ҡ) was used to determine intra-rater reliability. The paired Wilcoxon symbolic rank-sum test was used to compare the qualitative picture quality scores of r-FOV DWI sequences and c-FOV DWI sequences. The paired Wilcoxon symbolic rank-sum test was used to compare the SNR and CNR of picture quality for r-FOV DWI and c-FOV DWI in the cervical cancer group. The results were presented as mean ± SD. Normal distribution and homogeneity of variance were assessed by the Kruskal-Wallis test. The independent sample t-test was used to compare statistical differences in age between cervical cancer and normal control groups and the ADC differences (ROI) between r-FOV DWI and c-FOV DWI sequences in the cervical cancer group, as well as the ADC differences between cervical and normal groups in the r-FOV DWI sequence.
Comparison of baseline data
Independent samples t-test comparing the age divergence between the cervical cancer group and the normal control group disclosed no statistically significant (t=2.001, P>0.05, Table 3).
|Groups||Number||Mean ± SD (years)||P|
Scoring agreement tests between two radiologists
The IQ scores for both sequences of r-FOV DWI and c-FOV DWI were moderate to strong: (I) image anatomy details: r-FOV DWI ҡ=0.815, c-FOV DWI ҡ=0.583; (II) image sharpness: r-FOV DWI ҡ=0.682, c-FOV DWI ҡ=0.561; (III) image geometric deformation: r-FOV DWI ҡ=0.675, c-FOV DWI ҡ=0.833; (IV) ghost shadows, motion, and magnetically sensitive artifacts: r-FOV DWI ҡ=0.914, c-FOV DWI ҡ=0.547; (V) lesion significance: r-FOV DWI ҡ=0.684, c-FOV DWI ҡ=0.592; (VI) image geometric: r-FOV DWI ҡ=0.891, c-FOV DWI ҡ=0.594 (Table 4). Cohen’s kappa results showed moderate to almost perfect agreement (κ values between 0.547 and 0.914).
|r-FOV DWI||Image anatomy details||0.815||<0.001|
|Image geometric deformation||0.675||<0.001|
|Ghost shadows, motion, and magnetically sensitive artifacts||0.914||<0.001|
|Overall image quality||0.891||<0.001|
|c-FOV DWI||Image anatomy details||0.583||<0.001|
|Image geometric deformation||0.833||<0.001|
|Ghost shadows, motion, and magnetically sensitive artifacts||0.547||<0.001|
r-FOV DWI, reduced field-of-view diffusion-weighted MR imaging; c-FOV DWI, conventional field-of-view diffusion-weighted MR imaging.
Qualitative IQ score comparison
The qualitative IQ scoring results for the r-FOV DWI and c-FOV DWI sequences were shown in Table 5. In the evaluation of IQ by two radiologists, DWI sequences with r-FOV achieved significantly better scores than the conventional DWI sequence in image anatomical details, image sharpness, image geometry deformation, ghost, motion, and magnetically sensitive artifacts, lesion significance, and overall IQ (Figures 2,3). The following six metrics were compared: anatomical details in the image, where r-FOV DWI scored 3.78±0.62 and c-FOV DWI scored 2.90±0.54 (P<0.001); image sharpness, where r-FOV DWI scored 3.80±0.57 and c-FOV DWI scored 2.90±0.54 (P<0.001); image geometry deformation, where r-FOV DWI scored 3.84±0.42 and c-FOV DWI scored 3.58±0.50 (P<0.05); ghost, motion, and magnetically sensitive artifacts, where r-FOV DWI scored 3.62±0.60 and c-FOV DWI scored 3.22±0.65 (P<0.001); lesion significance, where r-FOV DWI scored 3.58±0.86 and c-FOV DWI scored 2.86±0.76 (P<0.001); and overall IQ, where r-FOV DWI scored 3.66±0.69 and c-FOV DWI scored 2.86±0.61 (P<0.001).
|Evaluating indicators||r-FOV DWI||c-FOV DWI||P|
|Image anatomy details||3.78±0.62||2.90±0.54||<0.001|
|Image geometric deformation||3.84±0.42||3.58±0.50||<0.005|
|Ghost shadows, motion, and magnetically sensitive artifacts||3.62±0.60||3.22±0.65||<0.001|
|Overall image quality||3.66±0.69||2.86±0.61||<0.001|
r-FOV DWI, reduced field-of-view diffusion-weighted MR imaging; c-FOV DWI, conventional field-of-view diffusion-weighted MR imaging; SNR, signal-to-noise ratio; CNR, contrast-to-noise ratio.
Comparisons of SNR and CNR
There was no statistically significant difference between the two sequences of r-FOV DWI and c-FOV DWI in the cervical cancer group (r-FOV DWI 16.29±6.09 vs. c-FOV DWI 17.66±9.23, P=0.946). Comparing the CNR ratios of the two sequences, the difference was statistically significant (r-FOV DWI 12.73±5.56 vs. c-FOV DWI 11.21±5.92, P=0.019, Table 5).
Quantitative analyses of the ADC values

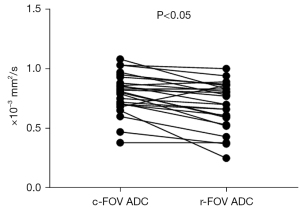

By quantitative analysis, the difference in mean ADC values between the two DWI sequences was statistically significant [r-FOV DWI (0.690±0.195)×10−3 mm2/s vs. c-FOV DWI (0.794±0.167)×10−3 mm2/s, P<0.001, Figure 4]. In the r-FOV DWI sequence, ADC of cervical cancer lesions was significantly lower than that of the normal cervix. The ADC value was (0.690±0.195)×10−3 mm2/s for cervical cancer lesions and (1.506±0.188)×10−3 mm2/s for normal cervix (P<0.05). In the c-FOV DWI sequence, ADC of cervical cancer lesions was significantly lower than that of the normal cervix. The ADC value was (0.794±0.167)×10−3 mm2/s for cervical cancer lesions and (1.394±0.204)×10−3 mm2/s (P<0.05).
DWI, as a promising functional imaging technology, plays an important role in the non-invasive detection of the diffusion movement of living water molecules. DWI has been widely used in MRI. However, full-field DWI with SS-EPI commonly used in clinical practice has problems with low in-plane spatial resolution, obvious anatomical distortion, and magnetic-sensitive artifacts due to rapid acquisition, B0 and B1 field inhomogeneity, and eddy current. Also, the sequence images a wide range of all the anatomy within the pelvis, similar to the MRI of the prostate in men, because the cervix is adjacent to the intestines and the bladder, it is vulnerable to magnetically sensitive artifacts from intestinal gas, feces and filled liquid in the bladder or chemical artifacts, thus the sequence emphasizes the deformation and distortion of the image (17,20,22). Reduced FOV imaging technique with ZOOM-EPI applied the 2D method of a selective excitation pulse to reduce the imaging field along the phase coding direction (9), simply stimulate limited areas of interest, excluding the effects of a portion of the surrounding rectal gas, greatly reduces the distortion and artifacts of the cervical anatomy.
Spatial resolution is the resolution of the image to fine anatomical structure, which is one of the important parameters of IQ control in MR. The spatial resolution of the image is determined by the voxel size. Voxel size equals pixel size multiplied by level thickness, pixel size is determined by FOV and matrix (35). When the FOV is constant, the larger the matrix, the smaller the pixel; the smaller the FOV when the matrix remains unchanged, the smaller the pixels. Therefore, the pixel size can be reduced by increasing the matrix and reducing the FOV. The smaller the pixels, the thinner the level thickness, the smaller the impact of the partial volume effect, the higher the image spatial resolution (36). By the method of reducing pixel and thin layer scanning, the spatial resolution of the image can be improved, but the corresponding image SNR decreases, and the scanning time is extended. Reduced FOV imaging technique with ZOOM-EPI significantly improves image spatial resolution by reducing voxel (12,24).
Selection of the b values
The concept of the b value is the strength of the diffusion-sensitive gradient. It is proportional to the amplitude of the gradient, the duration of the applied gradient, and the time interval between the paired gradient. The measurement unit is square mm per second (37). According to the intravoxel incoherent motion (IVIM) theory, DWI reflects both the simplicial diffusion motion of water molecules and the blood perfusion of microcirculation (38). At low b, the measured ADC value is high due to blood perfusion and other factors, while the b value is large, the resulting ADC value almost completely represents diffusion because the perfusion effect is offset by a large gradient (39). In female pelvic studies, no consensus on the best choice of b value combinations. The b value should be increased to obtain a more realistic ADC value without affecting the image diagnosis. Therefore, high b value (b=1,000 s/mm2) was chosen for this study.
The results showed that the images obtained with the r-FOV DWI sequence had significant advantages in terms of image anatomical detail, image sharpness, image geometric distortion, motion, and magnetic sensitivity artifacts, and lesion significance compared with the conventional c-FOV DWI sequence. The agreement between the two radiologists’ evaluations was relatively reliable, and the subjective evaluation index of the r-FOV DWI sequence was higher than that of the c-FOV DWI sequence. Consistent with previous findings (11,13-25), the present study confirmed that r-FOV
DWI can reduce image artifacts and distortions, and tumor edges can be displayed more clearly and better IQ can be obtained.
Objective evaluation of IQ showed that there was no significant difference between r-FOV DWI and c-FOV DWI in the cervical cancer group. The reason may be that the factors affecting SNR include the number of incentives, layer thickness, matrix, FOV, acquisition bandwidth, etc. The r-FOV DWI sequence has a reduced FOV and increased layer thickness, but the excitation number increases accordingly, so there is no significant effect on SNR.
In reality, comparing the findings of r-FOV and T1 anatomical serial slice images for anatomical features is challenging since the resolution and SNR of T1WI and r-FOV cervix scans are different, and T1WI shows the isointense in cervical/cervical cancer. As a result, r-FOV DWI cannot replace T1WI in terms of anatomical detail, and it can only highlight early imaging alterations in cervical cancer from a microscopic perspective (by improving image spatial resolution) (14,40-43).
Quantitative IQ analyses
The results showed that the difference in the mean ADC values between r-FOV DWI and c-FOV DWI sequences were statistically significant. r-FOV DWI sequences had an ADC value of (0.690±0.195)×10-3 mm2/s, which is significantly lower than that of the c-FOV DWI sequence. Although they were statistically different, the two measurements are very close (0.690, and 0.794, respectively). This may be due to the higher spatial resolution, better fat suppression effects, and less motion, magnetic-sensitive artifacts, and reduces effect of microcirculatory perfusion, the measured ADC values are therefore more accurate. This result is not contradictory to the findings of other scholars. For example, Xing et al. (44) showed that in addition to having great diagnostic accuracy for measuring tumour invasion and MRI-T staging for esophageal cancer, high-resolution T2WI was able to distinguish clearly between normal and abnormal esophageal wall layers. Vidiri et al. (16) argue that head and neck tumors measured in r-FOV DWI sequence are lower and more accurate; Lu et al. (25) also found that the ADC measured by r-FOV DWI sequence in thyroid dispersion weighted imaging was lower than c-FOV DWI. However, Le Bihan et al. (38) indicated that there is no statistical difference in the ADC value of the two sequences in the pancreas; Zaharchuk et al. (45) showed no significant difference in human spinal cord ADC values in r-FOV DWI and c-FOV DWI sequences.
Comparison of ADC values between cervical cancer and normal cervix on r-FOV DWI sequences showed significantly different results. The ADC value of cervical cancer lesions was significantly lower than those of the normal cervix, indicating that the r-FOV DWI sequence has an important clinical value for the diagnosis of cervical cancer.
The ADC value has been studied in relation to cancer aggressiveness and is said to be linked to prognosis. Because of their enhanced cellularity and restricted water transport, ADC levels are lower in high-grade tumors (46). Somoye et al. (47) found that median mid-treatment ADC values were greater in survivors (1.55×103 mm2/s) than in non-survivors (1.36×103 mm2/s) among cervical cancer patients, with a 14% difference. ADC readings after four weeks of treatment are also said to be related to volume and clinical response (48). Patients that react to neoadjuvant chemotherapy have early increases in ADC values, which are negatively correlated with the proliferating cell nuclear antigen and cell density, demonstrating that ADC values are linked to cellular characteristics of the response that occur before size reduction (48).
Limitations of this study
Although this study objectively evaluated the clinical value of r-FOV DWI in terms of IQ, image SNR, CNR and ADC, the true clinical benefit of r-FOV has yet to be further demonstrated in future practice. The deficiencies of this paper also include: First, the relatively small number of patients in this study may have led to a selection bias for the different measurements. Second, patients should be instructed to fast for at least 6 to 8 hours prior to the MRI in order to reduce bowel peristalsis, and they may also receive anti-peristaltic medications (such as 20 mg of hyoscine butyl bromide or 1 mg of glucagon via intramuscular or intravenous injection) right before the exam to reduce severe image distortion caused by bowel contents (49,50). Third, only one level of the tumor region was selected for measurement in the ROI mapping, although three ROIs were randomly selected averaging, they did not reflect the overall tumor situation, the complete tumor volume measurement should be considered to ensure the accuracy and authenticity of the measurement. Fourth, the reduction of the imaging voxel increased the scanning time while improving the spatial resolution, and the next step should be to further optimize the sequence parameters and appropriately shorten the scanning time while ensuring the image SNR and spatial resolution.
r-FOV DWI can significantly improve image spatial resolution while reducing distortion and artifacts. Furthermore, more realistic ADC readings can aid in the more accurate diagnosis of cervical cancer.
