Pulmonary hypertension (PH) describes a group of diseases that are defined by an elevated pressure in the pulmonary vasculature. The WHO classification subdivides PH in different groups based on pathogenesis and classifies chronic thromboembolic pulmonary hypertension (CTEPH) as WHO group 4 (1). The pathogenesis of CTEPH is based on acute pulmonary emboli that persist either because they are not detected or do not dissolve under anticoagulant therapy and endothelialized residues remain leading to significant stenoses or complete obstruction of pulmonary vessels, a condition called chronic thromboembolic disease (CTED). If these residues lead to a pathologic increase in pulmonary artery pressure the condition is called CTEPH (2). CTEPH is associated with a significant mortality with a median survival rate of 10–20% at 2–3 years if not treated (3). The identification of patients with CTEPH is important because they can potentially be cured by surgical thrombendarteriectomy. Moreover balloon angioplasty can be used to improve vessel patency in selected patients (4). The diagnosis of PH is made by right heart catherization (RHC) and a mean pulmonary artery pressure (mPAP) of above 20 mmHg in combination with a pulmonary vascular resistance (PVR) of at least 3 Wood Units is considered as definitive PH (5,6). RHC can also discern pre-capillary and post-capillary PH by evaluating the pulmonary artery wedge pressure (PAWP) (5). CTEPH is a form of precapillary PH with a PAWP of less than 15 mmHg. For further differentiation of the different groups of precapillary PH (WHO Group 1, 3–5) further diagnostic tests including V/Q scintigraphy, lung function testing, CT pulmonary angiography (CTPA), conventional angiography are used (6).
The severity of PH is defined by clinical performance and hemodynamic parameters measured by RHC (5).
While CTPA is the standard of care for diagnosis of acute pulmonary embolism (7), V/Q-scintigraphy has long been favored in the evaluation of PH because of its ability to provide information on pulmonary perfusion instead of merely showing vessel anatomy (8,9). The diagnosis of CTEPH by CTPA can be challenging because the vessel abnormalities may be minor and thus even experts reach only a suboptimal sensitivity (10). The introduction of dual-energy CT (DECT) has enabled the reconstruction of iodine density images (IDIs) which provide information about iodine distribution and concentration. Therefore, a comprehensive analysis of pulmonary perfusion and vessel anatomy using standard clinical CT protocols is possible without the need for additional scans (11-14). IDIs can show different types of perfusion abnormalities that have a different prevalence in different types of PH (15-17). This is especially helpful in the diagnosis of CTEPH with a reported sensitivity of up to 100% (17).
A software application, that has recently become available, now allows for volumetric iodine quantification per voxel for a 3D-dataset acquired on a dual-layer CT platform called spectral-detector CT (SDCT). The objective of our study is to evaluate whether these volumetric iodine quantifications can help diagnose CTEPH. Furthermore, we evaluated if there is a correlation between hemodynamic parameters and the extent of pulmonary malperfusion on IDIs.
We present the following article in accordance with the STROBE reporting checklist (available at https://dx.doi.org/10.21037/qims-21-229).
This retrospective study was approved by the Ethics Commission of Cologne University’s Faculty of Medicine and the need for informed consent for study enrollment was waived due to the retrospective nature of this study. The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013).
A retrospective data base search identified 98 consecutive patients that underwent CTPA for the evaluation of possible PH on a spectral detector CT (SDCT) between June 2016 and February 2018. All these patients had suspected PH and were admitted to the department of cardiology at our hospital for further testing. Additional testing in accordance with the 2015 ESC/ERS guidelines for the diagnosis of PH was performed (5). Patients were classified by expert consensus based on all available diagnostic tests and CTEPH was diagnosed in 30 of these patients. In 3 of these patients there was a delay of more than 30 days between CT examination and RHC, thus we excluded these patients from correlation analysis between CT and RHC parameters. For the other 27 patients the median time between CT examination and RHC was 1 day (Min: 0 days, Max: 23 days).
In addition to that a cohort of patients that underwent CTPA on the same CT scanner in the same time span for evaluation of suspected acute pulmonary embolism was identified. Of these patients, 30 consecutive patients in which pulmonary embolism was ruled out and who did not show signs of PH or extensive parenchymal infiltration were selected as control cohort.
Image acquisition and reconstruction
CT data were acquired on a 128-row spectral detector CT (IQon, Philips Healthcare, Best, The Netherlands). According to our institutional standard for CTPA studies, all patients received 50 mL of contrast media (300 mg Iodine/mL, Accupaque, GE Healthcare, Chicago, Illinois, USA) followed by a 40 mL NaCl flush injected intravenously with a flow rate of 4 mL/s. Scanning was initiated with a delay of 4.9 s after an attenuation of 150 HU was reached in the MPA. Scanning and reconstruction parameters were: slice collimation 0.625 mm; rotation time 0.33 s; tube potential 120 kV, automatic tube current modulation; reconstructed axial slice thickness 1 mm; reconstructed axial slice overlap 0.5 mm; pixel matrix 512×512. Spectral information in a so called spectral-based-image (SBI) format was saved.

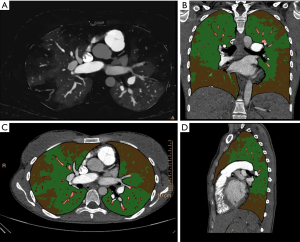

Automatic segmentation of the whole lung (including lung parenchyma, smaller airway and pulmonary vasculature) was performed using commercially available software (IntelliSpace Portal, COPD tool, Philips, Best, The Netherlands). Automatic segmentation was controlled and edited when needed. Segmentation and SBI file were exported to a dedicated software for volumetric iodine quantification (Volumetric quantification, Philips Intellispace Release 11). Lung volume was then separated into 3 different compartments based on iodine density (measured in mg/mL). For this, different settings were tested and correlated to the visual assessment by two radiologists with [6 and 12 years of experience in PH imaging (blinded)]. Finally, the vessel compartment was defined as all voxels with an iodine density greater than half of the iodine density measured in a ROI in the left atrium. This was done to account for pulmonary arteries and veins. Malperfused lung volume was defined as voxels with an iodine density of less than 5% of the iodine density in the main pulmonary artery. An example of the lung volume separation is presented in Figure 1. Volume, volume percentage and mean iodine density, as well as skewness of iodine density were recorded for all patients. Skewness describes the asymmetry of the iodine density distribution, with more negative values indicating a shift of the peak number of voxels towards higher iodine density values and more positive values indicating a shift of the peak number of voxels towards lower iodine density values. A skewness of zero is consistent with a symmetric distribution of iodine density values around the mean in a given volume.
Statistical analysis was performed using SPSS (Version 25, IBM). Values are given as mean ± standard deviation. Visual analysis of histograms of data samples showed that our data was not normally distributed. 95% CI were calculated using bias corrected and accelerated bootstrapping with 1,000 iterations to account for the non-normal distribution. To compare differences between groups non-parametric testing was used. Significance of differences was calculated by Mann-Whitney-U-test. A P value of less than 0.05 was accepted as statistically significant. Cohen’s d was calculated to illustrate effect sizes. Correlation between the extent of malperfusion and hemodynamic parameters was calculated using Spearman’s-rho-correlation coefficient. ROC analysis was performed for the prediction of existing CTEPH with the percentage of malperfused lung volume. Youden’s index was used to calculate a cut-off value and define sensitivity and specificity at the optimal cut-off point.
Patients with CTEPH had a mean age of 59.17±17.02 (95% CI: 52.81–65.52) while patients in the control group had a mean age of 59.80±18.23 (95% CI: 52.99–66.61) and the difference was not significant (P=0.865).
MPAP was elevated in all patients with CTEPH with 43.32±11.30 mmHg. PVR in patients with CTEPH was 8.12±3.78 Wood units.

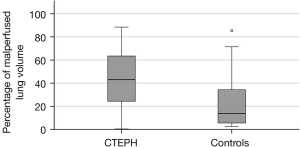

Patients with CTEPH had a significantly higher percentage of malperfused lung volume compared to controls. Although CTEPH may be associated with pulmonary artery stenosis and obliteration, the percentage of vessel volume was not significantly different between patients with CTEPH and controls (see Figure 2). Patients with CTEPH showed a significantly lower iodine density in malperfused and normal-perfused lung areas as well as in the vessel volume. However, the differences between patients with CTEPH and controls for iodine density values were relatively small and showed only moderate effect size (Cohen’s d). In the control group the iodine density in malperfused lung areas showed a negative skew, owing to a left skewed distribution, which means that voxels tended to have a higher iodine density. In patients with CTEPH the distribution of iodine density in malperfused lung areas was more uniform. The difference in skew between patients with CTEPH and controls was statistically significant (see Figure 3). The results for comparison of patients with CTEPH and controls are summarized in Table 1.
|CTEPH||BCa 95% CI||Controls||BCa 95% CI||P value||Cohen’s d|
|Percentage of malperfused lung||43.25±24.72||34.02–52.48||21.82±20.72||14.09–29.56||0.001*||0.94|
|Percentage of vessel volume||2.18±0.95||1.82–2.53||2.33±1.29||1.84–2.81||0.882||–0.13|
|Mean iodine density in malperfused lung areas (mg/mL)||0.023±0.006||0.021–0.025||0.026±0.005||0.024–0.028||0.047*||–0.54|
|Mean iodine density in normal perfused lung areas (mg/mL)||0.105±0.033||0.092–0.117||0.117±0.030||0.106–0.128||0.046*||–0.38|
|Mean iodine density in vessel volume (mg/mL)||0.548±0.200||0.473–0.623||0.619±0.117||0.575–0.662||0.015*||–0.43|
|Skewness in malperfused lung areas||–0.010±0.396||–0.158–0.138||–0.382±0.435||–0.545 to –0.220||0.004*||–0.89|
|Mean pulmonary artery pressure (mPAP) (mmHg)||43.32±11.30||39.47–47.30||n.a.||n.a.||n.a.||n.a.|
|Pulmonary vascular resistance (PVR) (WU)||8.12±3.78||6.75–9.70||n.a.||n.a.||n.a.||n.a.|
Data are given as mean ± standard deviation and 95% bias-corrected and accelerated confidence interval. *, statistically significant differences.

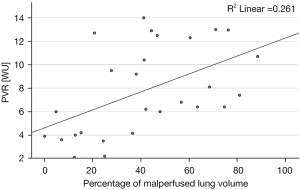

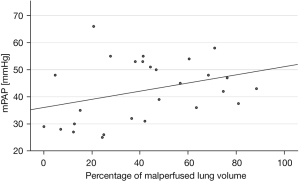

Patients with CTEPH showed a significant correlation between PVR and the percentage of malperfused lung volume (ρ=0.58, P=0.001) while the correlation between mPAP and the percentage of malperfused lung volume was not significant (ρ=0.34, P=0.079) (see Figures 4,5).

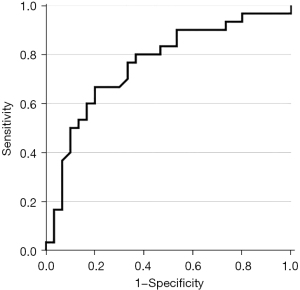

ROC analysis for the prediction of CTEPH by using the percentage of malperfused lung volume produced an AUC value of 0.76 (see Figure 6). By using Youden’s index a cut-off point of ≥36.45% was identified resulting in a sensitivity of 0.67 and a specificity of 0.8.
CTPA plays an important role in the diagnosis of PH (18). DECT and SDCT offer novel insights regarding pulmonary perfusion that rival V/Q-Scintigraphy. While it has been shown that IDIs are very valuable for radiologists who have experience in the diagnosis of PH (15-17), there is only limited experience regarding quantitative analysis of pulmonary perfusion. SDCT offers 3D volumetric information of iodine distribution in the lungs. We evaluated the usefulness of this information in patients with CTEPH.
We found that automatic lung segmentation and threshold-based segmentation and quantification of malperfused lung based on iodine density values is feasible. It reveals significant differences between patients with and without CTEPH. The percentage of malperfused lung volume can be used to predict whether a patient has CTEPH with modest sensitivity and sufficient specificity. While it has been shown in a previous study that differentiation of CTEPH patients is possible on qualitative assessment of IDIs for radiologists with experience in the imaging of PH (17), these quantitative findings might be helpful to facilitate confident diagnosis of CTEPH for less experienced radiologists. However, the diagnostic performance of the percentage of malperfused lung volume is only mediocre possibly because some pulmonary perfusion changes are lost when only analyzing overall changes in lung perfusion. Thus, more detailed analysis using sophisticated features (Radiomics analysis) which should be possible using this volumetric assessment might be useful.
We found that the extent of pulmonary malperfusion correlates with hemodynamic markers of disease severity. Takagi et al. reported a similar correlation between the mPAP and PVR and the extent of malperfusion scored by two radiologists in CTEPH using a semi-quantitative approach (19). While we did observe a similar trend in our cohort the correlation between mPAP and the extent of malperfusion did not reach significance in our study, but the correlation between PVR and the extent of malperfusion we found was of modest strength but significant and somewhat higher in our cohort. A potential explanation for these differences may be the significantly shorter delay of only 1 second between measurement of iodine attenuation increase in the pulmonary artery and the start of the CT scan employed by Takagi et al. Unfortunately, the minimal scan delay possible with the SDCT platform is 4.9 s which might lead to a decreased sensitivity for malperfused regions on IDIs.
A single study performed an automatic evaluation of pulmonary perfusion by an algorithm called pulmonary perfused blood volume which calculates the relative enhancement of the pulmonary parenchyma compared to the enhancement of the pulmonary artery and provides relative values for the upper, middle and lower lung zone in patients with CTEPH (20). These values correlated significantly with the mPAP (20) but not with the pulmonary resistance. Still these results are similar to our results in showing that the degree of malperfusion in patients with CTEPH seems to be connected to the degree of hemodynamic abnormalities. Our results are in contrast to a previous study which found no significant correlation between mPAP or PVR and the extent of malperfusion scored by visual analysis of two radiologists (17), showing that volumetric quantification provides benefits compared to semiquantitative scoring. Additional benefits of the semiautomated volumetric quantification are its impartiality and time efficiency.
We found that patients with CTEPH showed significantly decreased mean iodine density in areas of malperfused and normal perfused lung as well as in the vessel volume though only by a small margin. Still this result may indicate an overall reduced lung perfusion in patients with CTEPH.
While iodine density in malperfused areas was relatively uniformly distributed in patients with CTEPH in controls we saw a significant negative skew, meaning that iodine values tended to be higher. This shows that areas defined as malperfused in controls still had more voxels with a relatively high iodine content. This highlights the difficulty of setting a true cut-off for defining malperfused volumes.
Interestingly, based on our chosen thresholds for differentiating between normal and malperfused lung regions, our control cohort exhibited some degrees of pulmonary malperfusion, too. It is important to note that our control cohort did not consist of healthy individuals but of patients who underwent CTPA for suspected acute pulmonary embolism. Even though PE was excluded, these patients underwent CTPA because of clinical suspicion of PE and thus might exhibit altered pulmonary perfusion, due to pneumonia, venous congestion, underlying pulmonary emphysema or fibrosis. However, we would deem a CT examination in truly healthy individuals unethical.
The need to define a threshold based on visual assessment is a limitation of our approach. However, it has been shown that the areas of malperfusion on IDIs correlate well with perfusion imaging by V/Q-SPECT (14,21).
Another limitation of our approach are potential inaccuracies of the threshold-based segmentation due to image artifacts. Residual amounts of high-density contrast media in the subclavian veins or the superior vena cava, for example, can lead to falsely increased iodine attenuation values in the upper lung zones. At the same time, artificially reduced densities may occur due to beam hardening effects.
A limitation of the SDCT is that IDIs can only be created by scanning with a tube current of 120 kV. Lower tube currents like 100 kV are often used in CTPA to enhance the iodine contrast while simultaneously reducing radiation dose. SDCT allows for reconstruction of monoenergetic images (e.g., at 100 keV) which improves iodine enhancement if needed.
To conclude, we showed that volumetric assessment of iodine content and thus volumetric quantification of pulmonary malperfusion may assist diagnosis of CTEPH. Our study provides the first results of a truly voxel-based volumetric quantification of iodine content in the lungs. The correlation of hemodynamic parameters and the extent of malperfusion holds promise to provide a noninvasive, objective parameter of disease severity.
Reporting Checklist: The authors have completed the STROBE reporting checklist. Available at https://dx.doi.org/10.21037/qims-21-229
Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at https://dx.doi.org/10.21037/qims-21-229). GP and SK are employees of Philips. SR reports remunerations for lectures and/or consultancy from Abbott, Acceleron, Actelion, Arena, Bayer, BMS, Ferrer, Janssen, MSD, Novartis, Pfizer, United Therapeutics, and Vifor; grants to institution from Actelion, AstraZeneca, Bayer, Janssen, and Novartis. RJG received research support from Philips. FG reports payment for expert testimony and support for attending meetings and/or travel by Johnson & Johnson. JRK reports received research support by Philips and support for attending meetings and/or travel by Veryan. The other authors have no conflicts of interest to declare.
Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). This retrospective study was approved by the Ethics Commission of Cologne University’s Faculty of Medicine and the need for informed consent for study enrollment was waived due to the retrospective nature of this study.
Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
