Whole-body diffusion-weighted MRI in lymphoma—comparison of global apparent diffusion coefficient histogram parameters for differentiation of diseased nodes of lymphoma patients from normal lymph nodes of healthy individuals

Ricardo Donners1,2^, Raphael Shih Zhu Yiin3, Dow-Mu Koh2,4, Katja De Paepe5, Ian Chau6, Sue Chua7, Matthew D. Blackledge4

1Department of Radiology, University Hospital Basel, Petersgraben 4, 4031 Basel, Switzerland; 2Department of Radiology, Royal Marsden Hospital, Sutton SM2 5PT, UK; 3Changi General Hospital, Simei, 529889, Singapore; 4Cancer Research UK Cancer Imaging Centre, The Institute of Cancer Research, Sutton SM2 5NG, UK; 5Department of Radiology, University Hospitals Leuven, Herestaat 49, Belgium; 6Gastrointestinal and Lymphoma Unit, The Royal Marsden Hospital, Surrey SM2 5PT, UK; 7Department of Nuclear Medicine and PET, Royal Marsden Hospital, Sutton SM2 5PT, UK

Contributions: (I) Conception and design: R Donners, RSZ Yiin, DM Koh, MD Blackledge; (II) Administrative support: R Donners, RSZ Yiin, DM Koh, MD Blackledge; (III) Provision of study materials or patients: R Donners, RSZ Yiin, DM Koh, I Chau, S Chua, MD Blackledge; (IV) Collection and assembly of data: R Donners, RSZ Yiin, MD Blackledge; (V) Data analysis and interpretation: All authors; (VI) Manuscript writing: All authors; (VII) Final approval of manuscript: All authors.

^ORCID: 0000-0002-1614-0521.

Correspondence to: Ricardo Donners, MD. Department of Radiology, University Hospital Basel, Petersgraben 4, 4031 Basel, Switzerland. Email: ricardo.donners@usb.ch.

Background: Morphologic features yield low diagnostic accuracy to distinguish between diseased and normal lymph nodes. The purpose of this study was to compare diseased lymphomatous and normal lymph nodes using global apparent diffusion coefficient (gADC) histogram parameters derived from whole-body diffusion-weighted MRI (WB-DWI).

Methods: 1.5 Tesla WB-DWI of 23 lymphoma patients and 20 healthy volunteers performed between 09/2010 and 07/2015 were retrospectively reviewed. All diseased nodal groups in the lymphoma cohort and all nodes visible on b900 images in healthy volunteers were segmented from neck to groin to generate a total diffusion volume (tDV). A connected component-labelling algorithm separated spatially distinct nodes. Mean, median, skewness, kurtosis, minimum, maximum, interquartile range (IQR), standard deviation (SD), 10th and 90th centile of the gADC distribution were derived from the tDV of each patient/volunteer and from spatially distinct nodes. gADC and regional nodal ADC parameters were compared between malignant and normal nodes using t-tests and ROC curve analyses. A P value ≤0.05 was deemed statistically significant.

Results: Mean, median, IQR, 10th and 90th centiles of gADC and regional nodal ADC values were significantly lower in diseased compared with normal lymph nodes. Skewness, kurtosis and tDV were significantly higher in lymphoma. The SD, min and max gADC showed no significant difference between the two groups (P>0.128). The diagnostic accuracies of gADC parameters by AUC from highest to lowest were: 10th centile, mean, median, 90th centile, skewness, kurtosis and IQR. A 10th centile gADC threshold of 0.68×10−3 mm2/s identified diseased lymphomatous nodes with 91% sensitivity and 95% specificity.

Conclusions: WB-DWI derived gADC histogram parameters can distinguish between malignant lymph nodes of lymphoma patients and normal lymph nodes of healthy individuals.

Keywords: Whole-body diffusion-weighted MRI; lymphoma; lymph nodes; decision-making; histogram; diffusion-weighted MRI


Submitted Jan 13, 2021. Accepted for publication Mar 26, 2021.

doi: 10.21037/qims-21-50


Introduction

Malignant lymphoma is a common, systemic malignancy that predominantly affects lymph nodes, but can occur anywhere in the body (1-3). Accurate assessment of the disease distribution, sites of involvement and tumour stage is essential for management planning (4). Imaging is critical and is usually performed with whole body coverage for primary staging and disease follow-up (5).

Lymph node assessment by conventional CT or MRI relies on size measurement thresholds and morphologic features to discriminate between diseased and normal lymph nodes. This method has limited diagnostic accuracy (6,7). Fluorodeoxyglucose (FDG) PET/CT shows high diagnostic accuracy for detecting nodal and extranodal disease and is currently the imaging method of choice. However, PET/CT comes with exposure to ionising radiation and radioactivity (2,8). In addition, some patients, for example diabetics with poorly controlled blood sugar, will not be suitable for FDG-PET/CT, because of decreased sensitivity for disease detection (9).

Whole body diffusion-weighted MRI (WB-DWI) is a functional imaging technique, which can overcome some of the shortcomings of PET/CT (10), and can be a fast and safe alternative (11). DWI visualizes differences of water mobility in the body. Cellular tissues (e.g., lymph nodes) return high signal, while the signal of the less cellular background tissues is suppressed. This results in a high signal contrast between lymph nodes and the surrounding tissues. The water mobility can be quantified by calculating the apparent diffusion coefficient (ADC), which was shown to inversely correlate with cellularity with good measurement repeatability allowing for tissue characterization (12-14). WB-DWI derived ADC is used as a cancer biomarker for multiple tumour entities with systemic, malignant disease manifestation such as multiple myeloma, metastatic prostate and breast cancer (14,15).

WB-DWI was shown to be a feasible alternative for pre-therapeutic staging and response evaluation in patients with lymphoma (11,16-18). Superior diagnostic accuracy of WB-DWI over PET/CT was exhibited in lymphoma subtypes with variable FDG uptake (16). Significant differences were observed in the mean ADC values between lymphoma and normal lymph nodes on a node-by-node comparison basis (19). However, the deployment of mean ADC values for clinical nodal assessment has been limited by the overlap of these values between diseased and normal lymph nodes. To date, no previous study has evaluated the DWI property of lymph nodes on a global basis, by summating all the sites of nodal disease across the body and measuring the global disease ADC (gADC) value. Additional value of analysing ADC distribution parameters such as the median, centiles, standard deviation, skewness and kurtosis were shown to improve lymph node characterisation (20,21). However, data related to the gADC histogram differences between normal lymph nodes and nodal disease in lymphoma from WB-DWI is lacking. Knowledge of these WB-DWI gADC histogram parameters may help with more accurate disease diagnosis of malignant nodal groups.

The purpose of this study was to compare diseased lymphomatous and normal lymph nodes using gADC histogram parameters derived from WB-DWI.


Methods

Study design and patient population

The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). The data reported in this retrospective study was derived from two prospective studies approved by the local research and ethics committee of the Royal Marsden Hospital. Written informed consent was obtained. In the first study, 23 patients with histopathologically proven lymphoma underwent WB-MRI before and 12 weeks after chemotherapy. Only the baseline imaging of this patient cohort was reported as part of this analysis. 18-FDG PET/CT was performed in all patients, with a mean time interval between both modalities of seven days. In the second study, 20 healthy volunteers underwent WB-MRI as part of a protocol development study to establish normal findings on WB-MRI. They had to match the following inclusion criteria: no history of malignancy, previous surgery, acute inflammation or infection within four weeks prior to scanning and no short- or long-term medications. Informed written consent was obtained from all patients and volunteers.

Whole-body diffusion weighted imaging

Axial WB-DWI of lymphoma patients and healthy individuals was performed on a 1.5T MRI scanner (MAGNETOM Avanto, Siemens AG, Healthcare Sector, Erlangen, Germany) in free-breathing using the following imaging parameters: Matrix =150×144, Partial Fourier =6/8, TE =64.8 ms, TR =14.6s, Receiver Bandwidth =1,961 Hz/px, b-values =50 and 900 s/mm2, three scan trace weighted diffusion encoding, STIR fat suppression (TI =180 ms), Slice Thickness =5 mm, Field of View =400×390 mm2. Parallel imaging GRAPPA was applied to reduce distortion along the phase-encoding direction (R=2). The number of signal averages was four for each b-value. Images were acquired from vertex to midthigh using four consecutive imaging stations comprising of 50 slices each. The DWI acquisition time was approximately 24 minutes.

To facilitate anatomical localization of lymph nodes, breath-hold axial T1-weighted MR images, matched to the same imaging field of view and slice thickness of the WB-DWI were also acquired using the following imaging parameters: T1 fast low angle shot, matrix =256×105, slice thickness =5 mm, TR =386 ms, TE =4.8 ms, flip angle =70°, number of averages =1. Figure 1 shows typical images obtained for a patient with lymphoma using the MRI study protocol.

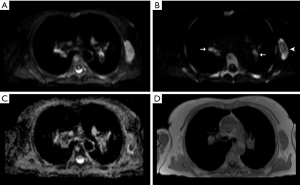

Figure 1 Whole-body diffusion-weighted MRI Protocol, axial diffusion weighted b50 (A) and b900 (B) images and the calculated apparent diffusion coefficient (ADC) map (C) show large left axillary mass (arrow head) and bilateral, hilar lymphadenopathy (arrows) with restricted diffusion in a 62-year-old male lymphoma patient. A corresponding axial T1-weighted anatomical image (D) is presented in the bottom-right panel.

Image analyses and processing

Open-access software (OsiriX version 56, PixmeoSARL Bernex, Switzerland) was used for analysis and post-processing (22). Through visual comparison with the anatomical T1-weighted images, lymph nodes were identified on b900 images as discrete ovoid structures demonstrating high signal intensity.

Global ADC (gADC) from the total disease volume

In histopathologically proven lymphoma patients, diseased nodal groups were defined as containing nodes larger than 1 cm short axis diameter with visually increased 18F-FDG tracer uptake. All lymph nodes of malignant nodal groups visible on b900 images were included for subsequent analyses of the global ADC (gADC) histogram. Volumes of interest (VOIs) of involved lymph nodes were calculated using a proprietary IDL-based post-processing software (Exelis Visual Information Solutions, Inc.). The details for this algorithm were described by Blackledge et al. (23).

In the volunteers, all lymph nodes visible on the b900 images were included for gADC histogram analyses. The propriety segmentation software used in lymphoma patients was not used in the volunteers, as it had not been verified for use in healthy patients. VOIs were manually generated by a board-certified radiologist using a semi-automated segmentation software employing the “GrowCUT” algorithm (24) integrated in OsiriX. VOIs were manually adjusted to include as much of the nodal parenchyma as possible, excluding non-lymphatic tissue.

The generated VOIs were summarized as the total diffusion volume (tDV) representing the total lymph node volume of each patient/volunteer and were transferred onto the corresponding ADC maps. The gADC histogram parameters mean, median, interquartile range (IQR), standard deviation (SD), 10th and 90th percentile, minimum (min) and maximum (max), skewness and kurtosis were calculated and recorded for each patient. The natural-logarithm of tDV, ln(tDV), was calculated as an additional parameter (logarithm used to normalize the distribution of volumes).

ADC from individual nodal regions

A connected component-labelling algorithm was employed to separate spatially distinct nodal regions from the tDV in lymphoma patients and healthy volunteers. The same ADC histogram parameters described above as well as the natural logarithm of tDV, ln(tDV), were derived from each of the spatially distinct regional nodal volumes identified using this algorithm.

Statistical analyses

Statistical analyses were performed using commercially available software (IBM SPSS Statistics Version 22, IBM Corp. Armonk, New York, USA and MedCalc Version 19.0.7, MedCalc Software bvba, Ostend, Belgium) and freeware (and RStudio, Version 1.2.1335, RStudio, Inc, Boston, USA). Unpaired t-tests (assuming unequal variance) were performed to compare ln(tDV) and gADC parameters between lymph nodes of lymphoma patients and healthy volunteers. A P value <0.05 was deemed statistically significant. When a parameter demonstrated statistical significance, receiver operator curves (ROCs) were generated to determine optimal parameter threshold values discriminating malignant from benign lymph nodes. Calculation of the Youden index for each point on the ROC plot allowed optimal choice of threshold values. The ROC area under the curve (AUC) as an index of diagnostic accuracy of the test was calculated. ROC statistics were compared for ADC distribution parameters derived within the entire tDV and for the spatially distinct nodal volumes and a Benjamini-Hochberg procedure was used to correct for multiple comparisons. Multivariate analyses with Bonferroni corrections were performed to explore ADC differences between lymphoma subtypes.

Literature review

The PubMed database was searched for studies describing quantitative imaging analyses of lymph nodes applying ADC values.


Results

Participants

In total, 43 consecutive WB-DWI studies performed between 09/2010 and 07/2015 were included: pre-treatment WB-DWI of 23 patients with histopathologically verified lymphoma (12 females, 11 males) with a mean age of 59.5 years (range 24–87 years) and WB-DWI of 20 healthy individuals (7 female, 13 male) with a mean age of 34.8 years (range 22–60 years). Lymphoma subtypes in order of declining frequency were: diffuse large b-cell [10], follicular [7], mantle cell [3], angioimmunoblastic T cell [2] and marginal cell lymphoma [1]. A total number of 1309 distinct regional nodal volumes identified on b900 images was analysed.

Test results—global ADC

The mean values and SD of tDV and gADC parameters calculated for each patient are shown in Table 1. We found that the mean, median, 10th and 90th centiles gADC values were significantly lower in malignant than in normal lymph nodes. By contrast, ln(tDV), gADC skewness and kurtosis were significantly larger in lymphoma. The gADC SD, IQR, minimum and maximum gADC showed no significant difference between malignant and normal lymph nodes (each P>0.052).

Table 1

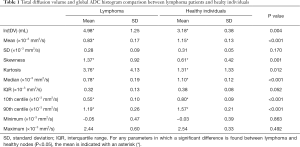

Table 1 Total diffusion volume and global ADC histogram comparison between lymphoma patients and healty individuals
Full table

Table 2 shows the performance of the significant gADC discriminators. The order of the diagnostic accuracies of gADC parameters by AUC performance from highest to lowest was: 10th centile, mean, median, 90th centile, skewness and kurtosis. Figure 2 visualises the overlap of gADC parameters between lymphoma and healthy individuals. There was no significant difference of AUC between mean and median gADC, 10th and 90th centile gADC (each P>0.131). Mean gADC AUC was significantly larger than gADC skewness AUC (P=0.032) and gADC kurtosis (P=0.004). 10th centile and median gADC AUC were significantly larger than for gADC kurtosis (each P<0.010). Median and 90th centile gADC AUC were significantly larger than for gADC skewness (each P<0.043). In correspondence to the AUC, the highest Youden index among gADC histogram parameters was calculated for the 10th centile gADC at a threshold of 0.67×10−3 mm2/s, smaller values identifying disease with 91% sensitivity and 95% specificity. A median gADC value less than 0.91×10−3 mm2/s identified disease with 87% sensitivity and 95% specificity. 81% sensitivity and 95% specificity was shown for a threshold mean ADC value of 0.95×10−3 mm2/s. Sensitivity of the 10th centile cut-off was significantly larger than for the mean gADC cut-off (P=0.046). Exemplar maximum intensity projections delineating lymph nodes of a lymphoma patient and a healthy volunteer are demonstrated in Figure 3. Figure 4 visualises the corresponding gADC histograms of lymphoma and healthy nodes of this particular patient (A) as well as the ADC distribution across all study subjects in both groups (B). No gADC parameter showed significant difference between different lymphoma subtypes (each P>0.324).

Table 2
Table 2 Diagnostic performance of global ADC histogram parameters in distinguishing lymphoma from healthy lymph nodes
Full table

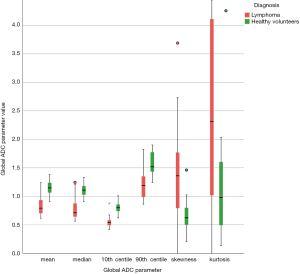

Figure 2 Global apparent diffusion coefficient (ADC) boxplots to distinguish between lymphoma and lymph node volumes of healthy volunteers. ADC values are given as 10−3 mm2/s.

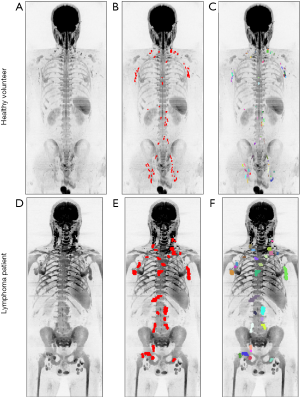

Figure 3 Volumes of interest delineating lymph nodes in a healthy volunteer and a lymphoma patient, Top: 30-year-old healthy volunteer. Maximum intensity projection (MIP) derived from the inverted b900 images (A), the superimposed red regions (B) indicate the total diffusion volume (tDV) generated by the “GrowCut” algorithm; these regions are separated using a connected component labelling algorithm and superimposed in separate colours (C). Bottom: Male 62-year-old lymphoma patient. An in-house developed algorithm was used to semi-automatically define the tDV in lymphoma patients (red regions, E). Individual nodes were segmented using the connected component labelling (multi-colour regions, F).

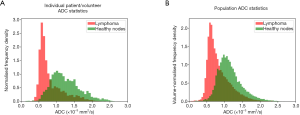

Figure 4 Global apparent diffusion coefficient (ADC) histograms. A: The healthy volunteer and the lymphoma patient whose total diffusion volumes (tDV) are presented in Figure 3. Note the visual increase in skewness and kurtosis of the gADC distribution in lymphoma. B: Population histograms of gADC values within the tDV of all lymphoma patients (red) and healthy volunteers (green). To remove volume bias, histograms are composed of the weighted sum of gADC histograms for each individual patient/volunteer (weighted by the inverse of the tDV for each individual). Note the visual increase in skewness and kurtosis of the gADC distribution in lymphoma.

Regional nodal volumes

In total 307 diseased nodal volumes were identified in the lymphoma patients and 1,002 healthy individual nodes were identified in the volunteer group by the connected component labelling algorithm. Table 3 shows the diagnostic performance of the ADC parameters derived from distinct nodal volumes, which differed significantly between the two groups. In contrast to the corresponding gADC parameters, distinct nodal min and max ADC were significantly lower in lymphoma. The order of diagnostic accuracies of the parameters as indicated by the AUC from highest to lowest was: median and 10th centile, mean, min, 90th centile, skewness, kurtosis and max ADC. Violin plots demonstrating the distribution of parameters calculated for individual diseased/healthy distinct nodal volumes are compared in Figure 5. The natural logarithm of nodal volume, ln(tDV), showed the highest Youden index—a threshold of 0.08 (representing a 1.08 mL nodal volume), resulting in 75% sensitivity and 91% specificity.

Table 3

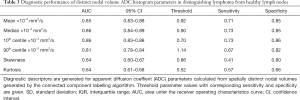

Table 3 Diagnostic performance of distinct nodal volume ADC histogram parameters in distinguishing lymphoma from healthy lymph nodes
Full table

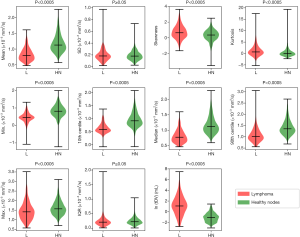

Figure 5 Violin plots for apparent diffusion coefficient (ADC) distributions derived within nodes from lymphoma patients and healthy-volunteers. In each case the shaded region demonstrates (vertically) the distribution of each statistic amongst the individual nodes (307 diseased nodes and 1002 healthy nodes). The whiskers represent (in order from bottom to top) the minimum, the median, and the maximum of the statistic.

Literature review

The ADC values and respective threshold values for differentiation derived from single-slice ROI measurements on small field of view head and neck MRI and other WB-DWI studies are presented in Table 4.

Table 4

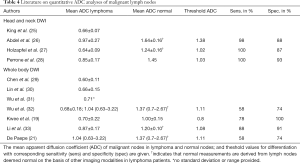

Table 4 Literature on quantitative ADC analyses of malignant lymph nodes
Full table

Discussion

WB-DWI was deemed a highly sensitive imaging technique for lymphoma showing high levels of agreement with PET/CT (17,18,30,31,34-37). However, quantitative ADC thresholds for lymph node characterization are rarely applied (17). Thus, the potential of WB-DWI has not been fully exploited, in part due to the lack of established and reliable ADC threshold values discriminating between diseased and normal lymph nodes.

Our study applies an algorithm to identify and segment diseased nodal regions across the body, which allows the gADC of all lymphomatous nodes to be characterised compared with a large population of benign lymph nodes in normal volunteers. We found that gADC histogram parameters were able to distinguish between diseased lymphomatous nodes and those of healthy volunteers. The former showed significantly lower gADC values. The gADC 10th centile performed best for discriminating between lymphoma patients and healthy volunteers. For discriminating individual nodal volumes as diseased or healthy, we found the 10th centile value to be of good discriminatory value. Although, diagnostic performance was not significantly superior to mean ADC, this could have diagnostic implications. Previous works on different entities have described the merits of the 10th centile ADC as an oncologic imaging biomarker, which warrants prospective performance comparison of 10th centile, mean and median ADC (38).

In contrast to the reviewed small field of view and WB-DWI literature on quantitative DWI for lymph node characterisation, we evaluated ADC measurements derived from a semi-automatic segmentation of lymph node volumes. In metastatic bone disease this approach was shown to offer good reproducibility (39). The calculated gADC and ADC values of normal and diseased nodes are comparable with ADC measurements recorded in previous studies.

Kwee et al. published the only prior study comparing malignant nodes with normal nodes of healthy patients employing WB-DWI in lymphoma patients and extended field of view DWI in healthy individuals. ADC measurements were derived from manually placed single slice ROIs. ROIs were placed in FDG-PET/CT positive lymph nodes in lymphoma patients and in the largest lymph node of healthy patients (19). DWI of the thorax and abdomen were not included in healthy patients compared to a true WB-DWI protocol employed in our volunteers. This may have contributed to a higher mean nodal gADC in our healthy volunteers, as well as a higher gADC threshold in our study compared with those reported by Kwee et al. Lymph nodes of the thorax and abdomen are prone to be affected by bulk motion, which can increase ADC values due to partial volume effects.It needs to be noted that our measured gADC values were within the standard deviation of the ADC measurements reported by Kwee et al. Moreover, ADC values are known to have a variability of 5–12%, increasing with smaller volume measurements (40,41). The general agreement of gADC measurements of lymph nodes with previous literature using regional ADC measurements shows that a volume based approach is feasible and reliable while allowing to include a larger disease volume. In a future prospective scenario, the software could allow for whole-body lymph node region delineation and automated identification of suspicious nodal regions according to their ADC histogram characteristics and verify the derived ADC cut-off values of this study.

This study has several limitations. First, it needs to be emphasized, that within our study individual nodal volumes in lymphoma patients do not represent individual nodes, but rather the smallest individual nodal volume, as identified by the segmentation algorithm. Yet to be developed, advanced, automated segmentation tools may allow for improved identification of individual nodes and true per nodal analyses. Second, only 23 lymphoma patients were included. Consequently, ADC differences between lymphoma subtypes could not be adequately assessed. However, current literature suggests little difference in the ADC values between malignant lymph nodes of different lymphoma subtypes, which is in keeping with the presented findings (16,42). Third, differences in diffusion characteristics of different anatomical regions were not assessed. Fourth, we were unable to obtain pathological verification of all nodes that were segmented by DWI. However, the nodal groups segmented were verified to be FDG avid. Fifth, DWI may be subject to a number of artefacts, which affect image quality and ADC calculation. Moreover attention should be paid on the choice of b-values for ADC calculation, as low b-value (<150 s/mm2) imaging is subject to perfusion effects, which may bias subsequent ADC calculation towards higher values. This can also have implications for ADC comparison. However, the choice of the paired b-values of b=50 and 900 s/mm2 are widely employed in whole body MRI studies. Lastly, two different segmentation methods were applied, as there was no automated segmentation tool available for normal lymph nodes at the time of the study. However, segmentation was performed by an experienced radiologist with more than 5-year experience in MRI.

In conclusion, WB-DWI derived gADC histogram parameters can distinguish between malignant lymph nodes of lymphoma patients and normal lymph nodes of healthy individuals. The 10th centile gADC showed superior sensitivity over the mean gADC. Parameters describing the gADC histogram may serve as valuable biomarkers for lymphoma disease assessment.


Acknowledgments

Funding: This work was supported by Cancer Research UK and The Engineering and Physical Sciences Research Council’s support to the Cancer Imaging Centre at ICR and RMH in association with the Medical Research Council and the Department of Health C1060/A10334, C1060/A16464 Invention for Innovation, Advanced computer diagnostics for whole body magnetic resonance imaging to improve management of patients with metastatic bone cancer II-LA-0216-20007,and NHS funding to the NIHR Biomedical Research Centre, Clinical Research Facility in Imaging and the Cancer Research Network. Support was also received from NIHR Postdoctoral Fellowship NHR011X and this research was partly supported by the “Foundation of the Swiss Society of Radiology for Research, Postgraduate and Continuing Medical Education” and “Research Fund for excellent Junior Researchers of the University of Basel”. Sponsoring bodies had no impact on study design; in the collection, analysis and interpretation of data; in the writing of the report; or in the decision to submit the article for publication. The views expressed in this manuscript are exclusively those of the authors.


Footnote

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at http://dx.doi.org/10.21037/qims-21-50). Dr. Matthew Blackledge reports that he received patents broadly related to the field of whole-body imaging. The other authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). The data reported in this retrospective study was derived from two prospective studies approved by the local research and ethics committee of the Royal Marsden Hospital. Written informed consent was obtained.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
