Analysis of right ventricular flow with 4-dimensional flow cardiovascular magnetic resonance imaging in patients with pulmonary arterial hypertension

Lei Wang1, Min Liu1, Pei Yao Zhang1, Jin Zhu Dai1, Hai Yi Ma1, Xin Cao Tao2, Wan Mu Xie2, Jun Wan2, An Jing3

1Department of Radiology, China-Japan Friendship Hospital, Beijing, China; 2Department of Pulmonary and Critical Care Medicine, China-Japan Friendship Hospital, Beijing, China; 3Siemens Shenzhen Magnetic Resonance Ltd., Shenzhen, China

Correspondence to: Min Liu, MD. Department of Radiology, China-Japan Friendship Hospital, No. 2 Yinghua Dong Street, Hepingli, Chaoyang District, Beijing 100029, China. Email: drradiology@163.com.

Background: Cardiac flow closely interact with function, however, the correlation of right ventricular (RV) flow and function remains unknown, thus our objective is to observe right ventricular flow with four-dimensional phase-contrast cardiovascular magnetic resonance imaging (4D flow CMR) in patients with pulmonary arterial hypertension (PAH) and to analyze flow components with RV function and hemodynamics.

Methods: This study retrospectively enrolled 30 patients with PAH (mean age: 49±13 years, 16 females) and 14 age- and sex-matched healthy volunteers as controls (mean age: 44±12 years, 9 females). All patients who underwent CMR and right heart catheterization (RHC) within 1 week between January 2019 and July 2020 were included. Hemodynamics were measured with RHC. RV flow components, including the percentages of direct flow (RVPDF), retained inflow (RVPRI), delayed ejection flow (RVPDEF) and residual volume (RVPRVo) were quantified using 4D flow CMR. The associations between RV flow components and other CMR metrics, clinical data, and hemodynamics were analyzed by Spearman’s correlation analysis.

Results: In patients with PAH, RVPDF was decreased and RVPRVo was increased compared with the normal control group. The sum of RVPDF and RVPDEF RV was significantly correlated with RV ejection fraction (RVEF) (r=0.802, P<0.001), and there was no notable difference between RVEF and the sum of RVPDF and RVPDEF (t=0.251, P=0.831). Both RVPDF and RVPRVo were correlated (in opposite directions) with the RV end-diastolic volume index, RV end-systolic volume index, RV global longitudinal strain, and RVEF. RVPDF was negatively correlated with pulmonary vascular resistance (PVR), and positively correlated with cardiac output and cardiac index. RVPRVo was positively correlated with PVR and negatively correlated with cardiac output and cardiac index.

Conclusions: RV blood flow components qualified with 4D flow CMR is a valuable noninvasive method for the assessment of RV function and hemodynamics in patients with PAH.

Keywords: 4D flow cardiovascular magnetic resonance imaging (4D flow CMR); pulmonary arterial hypertension (PAH); right heart catheterization (RHC); right ventricular function; hemodynamics


Submitted Nov 15, 2020. Accepted for publication Apr 09, 2021.

doi: 10.21037/qims-20-1267


Introduction

Pulmonary arterial hypertension (PAH) is classified as pulmonary hypertension (PH) group 1 (1), and is characterized by progressively increasing pulmonary vascular resistance (PVR) and right ventricular (RV) remodeling leading to RV failure. Although recent advances in therapeutic modalities have significantly improved the outcomes of patients with PAH, the disorder still is associated with high rates of morbidity and mortality. A previous meta-analysis (2) showed RV ejection fraction (RVEF) to be the strongest predictor of mortality from PAH. From a pathophysiological perspective, since pulmonary arterial remodeling results in increased RV post-load and subsequently affects flow status in the right heart, RV structural and functional changes are preceded by changes in pulmonary arterial and RV flow (3,4). Vortex formation in the main pulmonary artery has been shown to allow accurate estimation of pulmonary arterial pressure and the diagnosis of patients with PH (5); thus, intracardiac flow could be a more sensitive indicator for monitoring heart function. However, changes in RV flow and their correlation with hemodynamics and RV function in patients with PAH have not yet been elucidated.

Cardiovascular magnetic resonance (CMR) imaging is an accurate and reproducible method for the assessment of heart size, morphology, and function, and permits the non-invasive assessment of blood flow (6). Four-dimensional (3 spatial dimensions combined with time) phase-contrast (4D flow) CMR (7) can measure the velocity of blood flow in great vessels in any direction, and can also allow for visualization and quantification of the multidimensional intracardiac hemodynamic status and kinetic energy, as well as functional assessment without breath-hold and/or the use of contrast agents (8,9). Stoll et al. used 4D flow CMR in patients with ischemic or dilated cardiomyopathy and observed a decrease in the volume and kinetic energy of direct flow (DF) compared with healthy controls (10). Elhawaz et al. (11) indicated that the kinetic energy of left ventricular (LV) blood flow was associated with the 6-minute walk test and LV remodeling after valvular intervention in patients with aortic stenosis. Fredriksson et al. (12) reported that RVDF had a larger volume and possessed a higher presystolic kinetic energy than the other flow components in healthy people. However, RV flow characteristics in patients with PAH have not yet been reported.

In the present study, we aimed to: (I) compare RV flow components between patients with PAH and healthy volunteers using 4D flow CMR; (II) evaluate the relationship between RV flow components and other functional metrics and serum biomarkers; and (III) assess the relationship between RV flow and hemodynamics.


Methods

Study cohort and design

This study was registered at the Chinese Clinical Trials Registry Center” (http://www.chictr.org/en/; registration number ChiCTR-OCH-14004929), and was approved by the institutional review board of China-Japan Friendship Hospital (IRB No. 2017-24). Informed consent was obtained from all participants or their family.

This study retrospectively enrolled patients with PAH from China-Japan Friendship Hospital. Patients who underwent right heart catheterization (RHC) and CMR within 1 week from January 2019 to July 2020 were included. The diagnoses of all patients were based on mean pulmonary arterial pressure (MPAP, ≥25 mmHg) and PVR [>3 Wood units (WU)], as well as pulmonary capillary wedge pressure (PCWP, ≤15 mmHg) as assessed by RHC (1).

The included participants were aged between 18 and 65 years old. Patients with poor quality 4D flow or CMR images or incomplete RHC data were excluded. Patients in PH groups 2, 3, 4, and 5 were also excluded, as were those with cardiomyopathy, coronary stents, lung diseases, malignancies, diabetes mellitus, cirrhosis, kidney dysfunction, or hyperthyroidism. A normal control group comprising 14 age- and sex-matched healthy volunteers was also enrolled as the normal control group.

RHC

Hemodynamics were assessed by RHC. A Swan-Ganz standard thermodilution pulmonary artery catheter [Edwards (Shanghai) Medical Products Co., Ltd.] was placed at the right inferior pulmonary artery. The indices measured included right atrial pressure (RAP), MPAP, PCWP, and PVR. Cardiac output (CO) and the cardiac index (CI) were determined using the Fick method.

CMR examination

All patients underwent CMR within 1 week of RHC. CMR was performed using a 1.5 Tesla clinical scanner (MAGNETOM Area, Siemens Healthcare, Erlangen, Germany) using an 18-channel phased-array surface coil. Images were acquired during end-expiratory breath-holds with retrospective electrocardiographic gating. First, standard cine long-axis 4-chamber and contiguous short axis slices covering both ventricles from base to apex were acquired with a balanced steady-state free precession sequence (typical acquisition parameters: repetition time/echo time, 3.4/1.4 ms; flip angle, 50–60°; slice thickness, 6 mm; in-plane spatial resolution, 1.8×1.8 mm2; temporal resolution, 40 ms; 25 reconstructed cardiac phases).

Subsequently, 4D flow CMR images were acquired in the sagittal plane using a 3D retrospectively electrocardiography-triggered, navigator-gated prototype sequence with the following parameters: repetition time/echo time, 4.6/2.5 ms; flip angle, 7°; temporal resolution, 40 ms; voxel size, 2.4×2.4×2.4 mm3; and velocity encoding, 100–150 cm/s. Twenty-five reconstructed cardiac phases were interpolated from 19–25 phases based on the patients' heart rate (ranging from 60 to 80 beats/min). Respiratory navigator gating was applied to minimize motion artifacts. Maxwell’s correction and concomitant gradient field effects were corrected on the scanner. For each participant, the field of view was adjusted to cover the whole heart, and the scan time was 6–9 minutes.

CMR analysis

RV functional metrics, including the RV end-diastolic and end-systolic volume indexes (RVEDVI and RVESVI, respectively) and RV and LV ejection fractions (RVEF and LVEF, respectively), were analyzed using the cine sequence on Cardiac Function (SyngoVia workstation Siemens Healthcare, Erlangen, Germany) by a radiologist with 8 years’ experience. A second radiologist with 6 years’ experiences independently measured the RV global longitudinal strain (RVGLS), radial strain (RVGRS), and circumferential strain (RVGCS) by contouring the cine images at the end-diastolic phase using CVI42 (Version 5.11, Circle Cardiovascular Imaging Inc., Calgary, Alberta, Canada). RV flow components were also independently post-processed and analyzed using CVI42 (Version 5.11, Circle Cardiovascular Imaging Inc., Calgary, Alberta, Canada) by a radiologist with 5 years’ experience.

The RV flow component analysis consisted of background phase correction, noise filtering, and velocity aliasing correction, as well as endocardial segmentation at end diastole and end systole with pathline generation from each segmented voxel. The positions of the pathlines (which are a form of visual simulation of a 3D velocity field that illustrates the travelling orbit of fluid particles in space at end systole) were divided into the following 4 functional flow components, which have been described previously (12): (I) DF, which refers to blood that enters the ventricle during diastole and leaves the ventricle during systole in the analyzed heartbeat; (II) delayed ejection flow (DEF), which describes blood that starts and resides inside the ventricle during diastole and leaves during systole in the analyzed heartbeat; (III) retained inflow (RI), which refers to blood that enters the ventricle during diastole but does not leave during systole in the analyzed heart beat; and (IV) residual volume (RVo), which describes blood that resides within the ventricle for at least 2 cardiac cycles. The percentage of each flow component in the RV was the ratio of each component volume (DF, DEF, RI and RVo) to RVEDV, including the percentage of DF (RVPDF), the percentage of DEF (RVPDEF), the percentage of RI (RVPRI), and the percentage of RVo (RVPRVo).

Statistical analysis

Statistical analyses were performed using SPSS 22 (Chicago, IL, USA). Data were expressed as mean ± standard deviation (SD) or median with interquartile range (IQR). Nonparametric 2 independent samples t-tests were used to compare the 2 groups. Correlations were analyzed using Spearman’s correlation. All tests were 2-sided, with P<0.05 considered to indicate a statistically significant difference.


Results

Baseline characteristics

Thirty patients with PAH (mean age: 49.1±13.2 years, 16 females) and 14 healthy volunteers (mean age: 43.7±12.3 years, 9 females) were included in this study. The demographic and clinical data of all participants are shown in Table 1. There were no significant differences in sex, age, body mass index, heart rate, systolic blood pressure, or diastolic blood between the 2 groups. The respiratory rate of patients with PAH was faster than that of the healthy controls (t=2.18, P=0.035). Patients with PAH were all on at least 1 PAH-specific medication. One patient died of sudden massive hemoptysis during hospitalization, and the other patients are currently being followed up.

Table 1

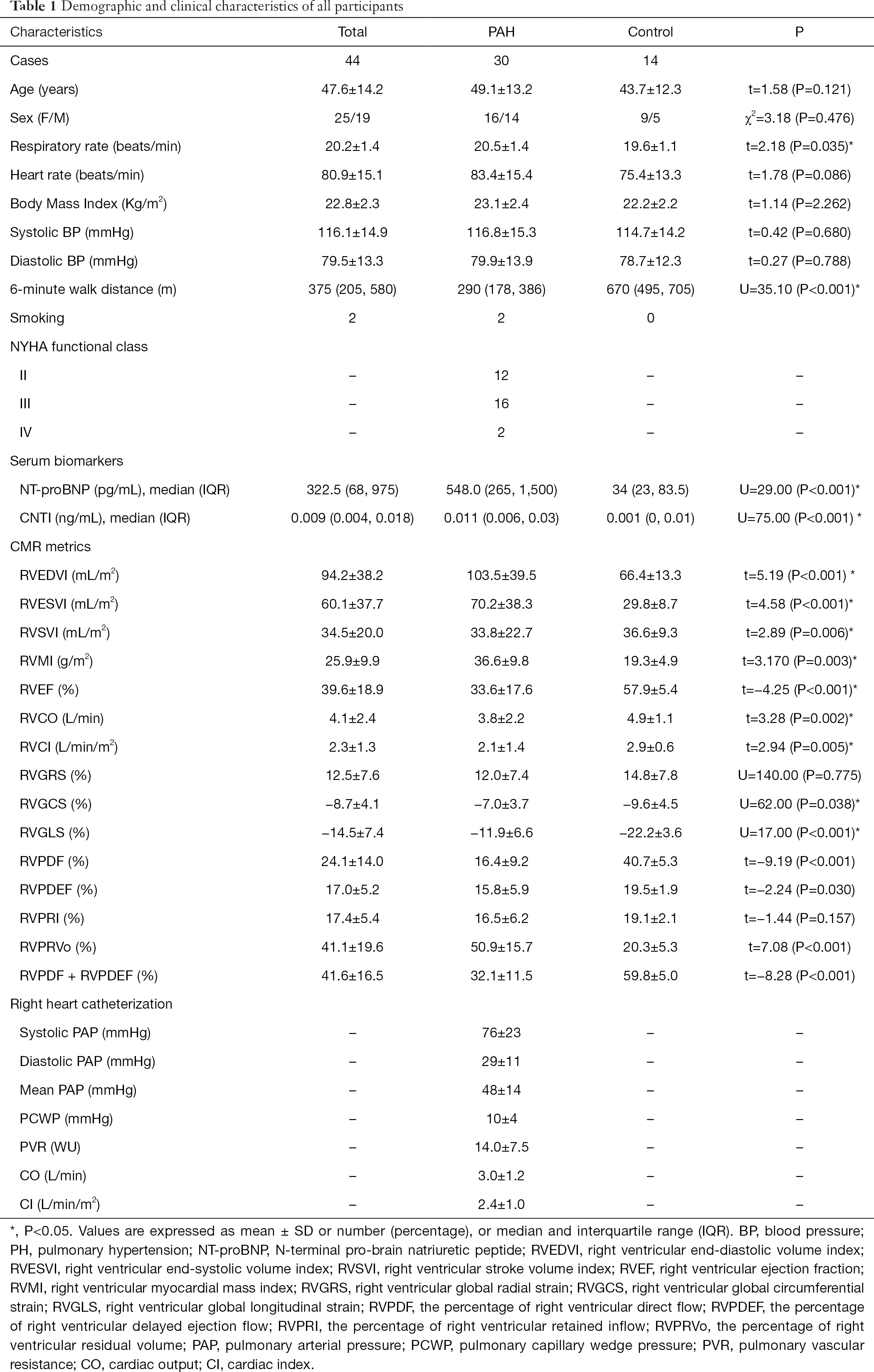

Table 1 Demographic and clinical characteristics of all participants
Full table

RV function, strain, and flow in PAH patients and healthy controls

The RV flows of participant patient with PAH and a normal control are visualized in Figure 1. As shown in Table 1, compared with those in the control group, the RV functional metrics of the patients with PAH, including RV end-diastolic volume index (RVEDVI), end-systolic volume index (RVESVI) and myocardial mass index (RVMI) were increased, while the RV stroke volume index (RVSVI), ejection fraction (RVEF), cardiac output (RVCO) and cardiac index (RVCI) were markedly reduced. Also, the RV global longitudinal strain (RVGLS) and RV global circumferential strain (RVGCS) were decreased in patients with PAH. As shown in Figure 2, RVPDF was significantly reduced in patients with PAH compared with the control group, whereas RVPRVo was markedly increased. However, RVPRI and RVPDFE were slightly lower in the PAH group than in the control group.

Figure 1 Right ventricular blood flow visualization in a normal participant (F/32 years old) (A,B) and a patient with idiopathic pulmonary artery hypertension (F/32 years old, mean pulmonary artery pressure: 40 mmHg) (C,D). (A,C) Pathline visualization of the right ventricular flow components (green represents DF; yellow represents retained inflow; blue represents DEF; and red represents residual volume) in diastole. (B,D) Pathline visualization of the RV flow components (green represents DF; yellow represents retained inflow; blue represents DEF; and red represents residual volume) in systole. RA, right atrium; RV, right ventricle; RVOT, right ventricular outflow tract.
Figure 2 Comparison of right ventricular flow components between PAH patients and healthy controls. Compared with the control group, the percentage of RVPDF in patients with PAH is significantly reduced, while the percentage of RVPRVo is increased. RVPDF, right ventricular direct flow; RVPRVo, right ventricular residual volume.

Correlation between RV flow and function/serum biomarkers

As shown in Table 2, RVPDF was negatively correlated with RVEDVI, RVESVI, RVMI and RVGLS, while being positively correlated with RVSVI, RVEF, RVCO and RVCI. Meanwhile, RVPRVo was positively correlated with RVEDVI, RVESVI, RVMI and RVGLS, but was negatively correlated with RVSVI, RVEF, RVCO and RVCI.

Table 2
Table 2 Correlation between right ventricular flow and functional data
Full table

Figure 3 shows that the sum of RVPDF and RVPDEF (RVPDF + RVPDEF) was correlated with RVEF (r=0.802, P<0.001), and there was no significant difference between RVEF and RVPDF + RVPDEF (t=0.251, P=0.831). Figure 4 shows that RVPDF was positively correlated with the 6-minute walk distance (6MWD) (r=0.612, P<0.001) and was negatively correlated with serum N-terminal pro-brain natriuretic peptide (NT-proBNP) (r=−0.639, P<0.001). Meanwhile, RVPRVo was positively correlated with NT-proBNP (r=0.637, P=0.001) but was negatively correlated with the 6MWD (r=−0.592, P<0.001).

Figure 3 Correlation between right ventricular eject fraction (RVEF, as measured on cine images) and the sum of the percentage of RVPDF and (RVPDF + RVPDEF, as measured by 4D flow sequence). (A) RVEF is correlated with the sum of RVPDF and RVPDEF (RVPDF + RVPDEF); (B) RVEF is comparable to the sum of RVPDF and RVPDEF (RVPDF + RVPDEF). RVPDF, right ventricular direct flow; RVPDEF, right ventricular delayed ejection flow.
Figure 4 Correlation between RV flow and clinical markers. (A) RVPDF is negatively correlated with the serum NT-proBNP; (B) RVPDF is positively correlated with the 6MWD; (C) PRVo is positively correlated with NT-proBNP; (D) PRVo is negatively correlated with 6MWD. NT-proBNP, N-terminal pro-brain natriuretic peptide; 6MWD, 6-minute walk distances.

Correlation between RV flow components and hemodynamics in patients with PAH

Table 1 displays the study participants’ hemodynamics, as measured by RHC. Table 3 shows the correlation between RV flow components and hemodynamics, as measured by RHC. We found that RVPDF was negatively correlated with PVR and positively correlated with CO and CI. Further, RVPRVo had positive correlations with RAP, MPAP and PVR, and negative correlations with CO and CI. None of the RV flow components were correlated with PCWP.

Table 3
Table 3 Correlation between right ventricular flow and hemodynamics in patients with PAH
Full table

Discussion

This study has produced several findings. Firstly, compared to that of the healthy controls, the RVPDF was diminished in patients with PAH, while the RVPRVo was significantly increased. Secondly, RVPDF and RVPRVo were found to be closely correlated (in opposite directions) with the other RV functional metrics and RVGLS, while the RVEF was similar to the sum of RVPDF and RVPDEF. Thirdly, in patients with PAH, RVPDF and RVPRVo were closely correlated (in opposite directions) with MPAP, PVR, CO, and CI, which were also determined by RHC. To our knowledge, this is the first study to report the characteristics of RV flow and their correlation with RV function and hemodynamics in patients with PAH.

In previous 4D flow MRI studies (12-14), the ventricular flow of normal controls was categorized into 4 components, and ventricular flow components and energetics were also characterized. DF refers to blood that enters the ventricle during diastole and leaves the ventricle during systole in the analyzed cardiac cycle. Among the 4 functional components of the LV diastolic volume, DF has the most direct route and the fastest transit through the LV, and best preserves the kinetic energy from inflow to pre-systole (15). Both RVo and RI constitute the non-ejecting portion of ventricular volume. In our control group, the RVPDF and RVPRVo were slightly lower than previously published values from healthy individuals (12,14). However, RVPDF was still the largest component among the 4 flow components, followed by RVPRVo, RVPRI, and RVPDEF.

Previous studies using 4D flow CMR (14,16) indicated that RVPDF is reduced with the increased RV volumes in patients with mild ischemic heart disease, and that LVDF is also diminished with increased LV volumes. However, non-ejecting flow was found to increase in patients with chronic ischemic heart disease. Similarly, compared to normal controls, decreased RVPDF and increased RVPRVo were prominent RV flow characteristics in patients with PAH, suggesting that changes in 4D flow-sspecific markers may detect RV dysfunction. DF possesses a significantly larger amount of kinetic energy than the other 3 flow components (17), while RVo, which describes blood that resides within the ventricle for at least 2 cardiac cycles, has the lowest kinetic energy among the 4 blood components.so, DF is prepared for effective systolic ejection.

Among four flow components, RVo had the largest volume in patients with PAH. This means that the reduction in DF is insufficient for effective systolic ejection by virtue of preserved kinetic energy. In PH, RV remodeling is initiated when the afterload increases (4), and the increase in RVo initially confers an advantage (e.g., acting as a buffer for kinetic energy redistribution), so as to reduce transfer of kinetic energy to potential energy that would result in the elevation of ventricular pressure. This situation is similar to LV blood flow in patients with left heart failure, and indicates that kinetic energy may be converted into less efficient configurations within the ventricle, resulting in the failure of any compensatory mechanism (13,16). A decrease in DF may indicate LV dysfunction, even in subtle or subclinical LV remodeling. RVo has been shown to be an independent and significant index for distinguishing patients with atrial fibrillation from healthy controls (18).

RV function is the main predictor of survival in patients with PAH. In this research, RVPDF and RVPRVo were correlated (in opposite directions) with other RV functional metrics, such as RVEF, thus confirming that ventricular flow status and function are highly interdependent on 1 side. The significant reduction of RVPDF and elevation of RVPRVo accompanied by a slight increase in RVPRI and RVPDEF, which is a phenomenon in PAH, suggests that PDF and PRVo can serve as indicators of RV dysfunction. Moreover, the sum of RVPDF and RVPDEF was similar to the RVEF, which was calculated using steady-state free precession cine images, indicating that 4D flow provides ventricular blood flow status information to enable an understanding of RV dysfunction without compensating for respiratory motion (19,20). It can also be used to calculate RVEF, which is the sum of RVPDF and RVPDEF, without the need for the breath-holding requirements used for conventional cine images.

Strain has been widely used to evaluate ventricular deformation and mechanics. In a previous study (21), global longitudinal strain, global circumferential stain, and global radial strain were reduced in patients with PH and RVEF <50%. In the present study, we found that global longitudinal strain and global circumferential strain were decreased in patients with PAH; only global longitudinal strain was correlated with RVPDF and RVPRVo (in opposite directions). Although the detailed mechanism is unclear, our data confirms the close interaction between morphology, function, and blood flow. The 6MWD and NT-proBNP are used to conduct risk assessments of patients with PAH, and may also provide prognostic information and thus be used to guide therapeutic decisions (1). Both RVPDF and RVPRVo were correlated with the 6MWD and NT-proBNP, suggesting that RV flow component analysis can provide prognostic information. However, the cutoff value for risk assessment is still unknown. Previous studies have reported that 4D flow CMR could provide a non-invasive estimate of PVR and MPAP (22-24). We further observed that RVPDF and RVPRVo were inversely correlated with PVR and MPAP. To our knowledge, the current work is the first to demonstrate the correlation between RV flow components and hemodynamics. Ventricular structures and blood flow are highly interdependent; thus, as the ventricular flow is altered in the early stages of remodeling, flow itself can influence disease progression.

Study limitations

There are several limitations in this study that should be noted. Firstly, the current results only relate to a relatively small number of sex- and age-matched patients and volunteers. Changes to ventricular flow related to age, sex, respiratory, and heart rate remain unknown. Also, our study only included patients with PAH; whether the current findings can be extrapolated to other etiologies of PH remains unclear. Thirdly, since most patients were New York Heart Association classification II/III, further study is required on ventricular flow in the assessment of subtle right ventricular dysfunction. Moreover, kinetic energy of flow components is known to be predictive of patients’ functional capacity; however, due to software algorithm limitations, we did not analyze the kinetic energy of each flow component. Therefore, the kinetic energy of RV flow in PAH should be further investigated in future research. Finally, the lack of longitudinal data limited the assessment of the prognostic significance of the 4D flow-specific parameters for clinical outcomes, and future follow-up studies are needed.


Conclusions

This study has demonstrated that 4D flow CMR can permit the visualization and quantification of RV flow components. RVDF is significantly reduced and residual volumes are markedly increased in patients with PAH. RV blood flow components are closely correlated with RV function and hemodynamics in patients with PAH. We suggest that 4D flow imaging is included in the CMR protocol in the evaluation of patients with PAH.


Acknowledgments

We would like to acknowledge Jumatay Biekan (Circle Cardiovascular Imaging, Calgary) for his assistance in 4D flow MRI image post-processing.

Funding: This work was supported by the Beijing Nature Science Foundation (grant no. 7182149), the National Natural Science Foundation of China (grant no. 81871328), the Youth Talents project of Chinese Academy of Medical Science (grant no. 2018RC320013), and the Beijing Science and Technology Commission Pharmaceutical and Technology Innovation Project (grant no. Z181100001918034).


Footnote

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at http://dx.doi.org/10.21037/qims-20-1267). The authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. This study was approved by the ethics committee of China-Japan Friendship Hospital (IRB No. 2017-24), and was performed according to the latest version of the Declaration of Helsinki (as revised in 2013) for Medical Research involving Human Subjects. Informed consent was obtained from all patients.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
