Optical coherence tomography angiography (OCTA) is a fast and non-invasive technology in recent years. The basic principle is to perform multiple scans in the same location. The changes of the reflex signal during each scan indicates that there is a moving object. By measuring the changes of the signals in the vessel cavity and merge the images, we get a complete retinal choroidal blood vessel image (1). Due to the physical limitations of laser sources, OCTA has limits in resolution. In this research, we used Plex Elite 9000, swept-source OCTA (SS-OCTA) (Carl Zeiss Meditec Inc., Dublin, California, USA). The axial resolution of SS-OCTA is 6.3 µm, and lateral resolution (Lr) is 20 µm on retina surface.
Choriocapillaris (CC) is the innermost layer of the choroidal vasculature. It is composed of a dense capillary network that provides the oxygen and nutrients for the retinal pigment epithelium (RPE) and the outer layer of the retina.
Flow void (FV) of CC is an alternative way to measure the CC structure. The standard vessel diameter of CC is 16–20 µm (2), smaller than the Lr of the SS-OCTA instrument. Therefore, some intracapillary distances which are bigger than the Lr can be measured to represent the CC structure where the areas without blood perfusion.
Polypoidal choroidal vasculopathy (PCV) was first proposed by Yannuzzi. Clinical manifestation is the branching vascular network with polypoid lesion structure (3), generally diagnosed through indocyanine green angiography. Recent research indicates that OCTA can detect branching vascular network and polypoidal components more accurately than indocyanine green angiography (4).
The anti-VEGF intravitreal injection (AVI) has been approved in many countries for years and has shown promising safety and effectiveness. Previous studies have shown that after the AVI treatment, choroidal thickness (CT) was reduced in pachychoroid neovasculopathy (PNV), myopic choroidal neovascularization (CNV), and neovascular age-related macular degeneration (nAMD) (5-7).
In the previous FV researches, there were several problems under the premise of the fixed depth of the CC slab: (I) there were lots of binarization methods in previous researches, whose results were different; (II) for the auto local threshold methods, different radius selections led to different results (8-14); (III) previous investigations did not take the physical limitations of OCTA instruments into account; (IV) used wrong statistics (average and standard deviation) to assess the FV (15,16). To solve the previous problems, we proposed a modified method in this research.
The main goal of this research is to propose a method to evaluate the non-normal distribution of FV.
The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). This retrospective study was approved by the Institutional Review Board of Fukushima Medical University of 2020-091 and individual consent for this retrospective analysis was waived.
This research is inclusive of two parts. First, the FV sizes-frequency histogram analysis. In this part, we compared the distributions of total FV and all Early Treatment of Diabetic Retinopathy Study (ETDRS) subfields of the PCV group, Old control group (age-matched normal control), and Young control group to determine the range of FV. Second, the FV validation part. We discussed the differences before and after AVI treatment in the AVI group and fellow eyes of the AVI group. We also verified the differences in the subfields without pathological changes of the AVI group.
One hundred and three eyes from 85 Japanese were included in this study in total, including 6 groups: PCV group: 30 eyes of 30 patients diagnosed with unilateral PCV at the Department of Ophthalmology of Fukushima Medical University Hospital, Fukushima City, Japan.. Old control group (age-matched control group): 30 fellow eyes of 30 patients diagnosed with retinal vein occlusion (RVO). Young control group: 20 eyes of 10 regular young volunteers. AVI group: another 15 treatment-naive eyes of PCV patients who received three AVI treatments and two tests before and after treatment. AVI-fellow group: 8 fellow eyes of AVI group without any observable pathological changes on the B-scan of SS-OCT and received two tests with 3-month intervals. AVI normal group: the ETDRS grid subfields without any detectable pathological changes on the B-scan of SS-OCT from the AVI group.
Exclusion criteria were: (I) the eyes with any combined retinal diseases, such as diabetic retinopathy (DR), glaucoma, and central serous chorioretinopathy (CSC); (II) the refractive error was greater than −6 diopters; (III) the patients with any systemic diseases, such as hypertension or diabetes; (IV) any segmentation errors were on the B-scan of SS-OCT images.
The examinations included indirect ophthalmoscopy, slit-lamp biomicroscopy, and color and red-free fundus photography. The CT was manually measured by a masked ophthalmologist (Y Sugano) three times and took the average as the vertical distance between the RPE and the choroidoscleral border at the center of the fovea, using the B-scan of SS-OCT through ImageJ software, version 1.52p (National Institutes of Health, Bethesda, Maryland, USA).
Subjects underwent SS-OCTA imaging using the PLEX Elite 9000 device, which uses a swept laser source with a central wavelength of 1,050 nm. The device operates at 100,000 A-scans per second, and Lr is 20 µm. OCTA image included a 6×6 mm area centered on the macula. Signal strength index >7 was defined as sufficient image quality. A fully-automated, build-in retinal layer segmentation was applied to segment the CC slab (10 µm thick starting 30 µm beneath to the RPE-fit reference) (20,21).
We imported the angiography image of the CC and the correspondent en face structural image into MATLAB R2019a. Because both images were in the different sizes, we first used the build-in function “imresize” to extend them into 1,200×1,200 pixels (5 µm/pixel). Then we used the function “mat2gray” to make normalized image. We modified the compensation algorithm published before for the signal to eliminate the influence of the shadowing effect on the quantitation of the CC (22).
Where Norm () represents the normalized image, Sim is the structural OCT image, and Aim is the OCTA image. We used “fspecial” to apply Gaussian filter (hsize =5 pixels, sigma =0.5, “replicate” for the boundary). The filter size should be bigger than Lr.
We chose the Phansalkar method (23) that specifically increases the threshold in the low contrast areas as the binarization algorithm in this research. We imported enhanced images into ImageJ software and processed “Auto Local Threshold” with the Phansalkar method for thresholding (radius =5 pixels, k =0.25, r=0.5). The local average and standard deviation of the Phansalkar method in ImageJ was defined as the results of all pixels within the circle with “radius”. In this circle, it should not include both normal contrast areas and low contrast areas to prevent all low contrast areas from mistakenly being the same category. Thus the “radius” should be smaller than the shadows caused by blood vessels and other objects and bigger than the Lr. After thresholding, all signals with a diameter smaller than the Lr were unreliable and ought to be excluded. Therefore, we applied “Analyze Particles” to eliminate the FV sizes which the diameters were smaller than Lr. Then, we used “Watershed Irregular Features” (24) to separate the connected FV, whose junctions were smaller than Lr.
After binarization, we imported the FV images into MATLAB to establish the ETDRS grid. We used “InsertShape” (LineWidth =1, Color =Black) to draw ETDRS grid on the images. We separated the FV images into 11 subfields: C1: 1-mm circle at the center of macula, C2: 3-mm rim, C3: 6-mm rim, inner superior, inner nasal, inner inferior, inner temporal, outer superior, outer nasal, outer inferior, outer temporal.
FV sizes-frequency histogram analysis
We used “Analyze Particles” of ImageJ to calculate the FV in 11 subfields, sizes range from 0 to 1,000 pixels (25,000 µm2). We imported FV sizes data into Excel (Microsoft Office 2019; Microsoft Inc., Redmond, Washington, USA) and used the built-in function “Frequency” with 10 pixels (250 µm2) intervals from 16 pixels (400 µm2) to 1,000 pixels (25,000 µm2). To analyze the sizes-FV% histogram of the Old control group, Young control group and PCV group in each sizes interval.
The FV% (the proportion of each FV interval) was defined as the ratio of FV number in each interval to total FV.
Then, we minus the FV% of the Young control group from the Old control group to detect the differences between the normal subjects with different ages. As well as the Old control group from the PCV group to detect the differences between same age subjects with or without PCV. We plotted the results into FV sizes-log FV% and the differences of FV% chart.
The FV1125 was defined as the average number of the FV, sizes from 36 to 45 pixels (900 to 1,125 µm2).
The FV1125% (the proportion of FV1125) was defined as the ratio of the number of FV1125 to total number of FV.
The AVI normal group were defined as the normal subfields based on the ETDRS grid, which we compared the FV result images with the SS-OCT images of AVI group.
We compared the FV distribution of PCV eyes and healthy eyes in different-age groups (PCV group, Old control group, and Young control group) to confirm whether FV1125 and FV1125% had the age correlation as the previous method.
We compared the FV1125 changes of AVI group before and after three AVI treatments, the AVI-fellow group with 3-month interval, to confirm whether there was a difference after AVI treatment.
All variables were reported as average and standard deviation. The Kolmogorov-Smirnov test was performed to detect the normality distribution of FV. One-way analysis of variance (one-way ANOVA) with Tukey post hoc test has calculated the differences between PCV group, Old control group, and Young control group. The paired Student’s t-test was conducted to investigate the differences between AVI group and AVI-fellow group. Intraclass correlation coefficients (ICC) were calculated for the agreement for the FV among AVI group and AVI-fellow group with 3-month interval. Pearson’s correlation was performed to evaluate the correlation between age and FV, and the changes of CT and FV. Statistical calculations were performed using SPSS Statistics V.26 (IBM Corporation, Armonk, NY, USA). The statistical significance level was P<0.05.

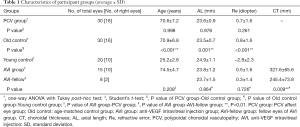

Average age was: 70.6±7.2 years (55–86 years) in PCV group and 70.9±6.8 years (58–88 years) in the Old control group, 25.2±2.6 years (21–29 years) in the Young control group, 74.5±4.7 years (63–85 years) in AVI group. The demographic characteristics of each group are shown in Table 1.
FV sizes-frequency histogram analysis

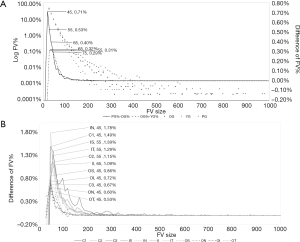

In the histogram analysis, there was a peak at FV sizes from 36 to 45 pixels (900–1,125 µm2) on the curve of the differences between PCV group and Old control group. There was another peak between the Old control group and the Young control group (Figure 1A). Furthermore, we analyzed 11 subfields according to the ETDRS grids between the PCV group and the Old control group, and we found that there were also similar peaks in all subfields (Figure 1B).
We summarized the sizes and spacing of the FV sizes with the most frequently appearing peaks in all subfields: The highest frequency of sizes was from 36 to 45 pixels (900–1,125 µm2), which were subfields C1, C3, inner nasal, outer superior, outer nasal, outer inferior, and outer temporal, 7 of 11 subfields (63.6%). The second was from 46 to 55 pixels (1,150–1,375 µm2), which were subfields C2, inner superior, and inner temporal, 3 of 11 subfields (27.3%). The third was from 56 to 65 pixels (1,400–1,625 µm2), which was subfield inner inferior, 1 of 11 subfields (9.1%) (Figure 1B). Therefore, we found the interval of 900–1,125 µm2 was the FV sizes related to the pathological changes of PCV.
Validation of the normal distribution
The Kolmogorov-Smirnov test results of FV1125% of the PCV group, Old control group, and Young control group were normal distribution (C1: P=0.200, C2: P=0.200, C3: P=0.082).
Validation of the FV with age dependency

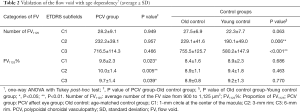

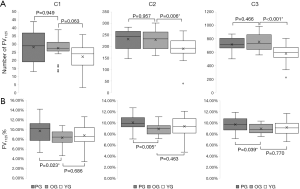

In the comparison of PCV group, Old control group and Young control group, the FV1125 were positively correlated with ages in C1 (β=0.265, P=0.017), C2 (β=0.369, P=0.001), and C3 (β=0.445, P<0.001).
The average number of FV1125 were significantly higher in the Old control group compared to the Young control group in C2 (P=0.006) and C3 (P<0.001). There were no significant differences among the PCV group and the Old control group in C1, C2 and C3 (P>0.05) (Table 2, Figure 2A).
The FV1125% were significantly higher in the PCV group compared to the Old control group in C1 (P=0.023), C2 (P=0.005) and C3 (P=0.039). There were no significant differences among the Old control group and the Young control group in C1, C2 and C3 (P>0.05) (Figure 2B).
The FV changes after AVI treatment

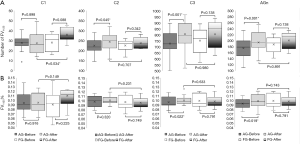

The average number of FV1125 had an increasing trend after the treatment in the AVI group. Among them, C2 (+18.9±33.4, P=0.045) and C3 (+78.3±71.4, P=0.001) reached statistical significance. Also significantly increased in the AVI normal group (+20.2±21.9, P=0.001). Compared to the AVI-fellow group, the changes in C1, C2, and C3 had no statistical differences after treatments (P>0.05) (Figure 3A). FV1125% had an increasing trend in the AVI group. Among them, C3 (+0.4%±0.6%, P=0.022) reached statistical significance. And significantly increased in the AVI normal group (+0.6%±0.9%, P=0.019). Compared to the AVI-fellow group, changes in C1, C2, and C3 had no statistical differences after treatments (P>0.05) (Figure 3B).
The CT changes after AVI treatment
Compared to the baseline, the average CT of AVI group after treatment was 222.5±46.8 µm, significantly decreased after treatment (−105.1±66.4 µm, P<0.001), while the CT of AVI-fellow group after 3-month interval was 231.6±21.5 µm, was not statistically significant (−13.8±25.7 µm, P=0.145).
The differences after treatment between AVI group and AVI-fellow group was −27.9±79.7 µm, and had no statistical difference (P=0.720).
The ICC of 22 subfields of FV1125 (before and after AVI treatment) was 0.913 (95% CI: 0.853–0.956).
In this retrospective study, we found that the number and the proportion of FV sizes from 900 to 1,125 µm2 significantly higher in PCV eyes compared to the healthy elderly. The differences also occurred after AVI treatment.
The histogram of FV in each group was similar to the results of Spaide and followed the power-law distribution (25). The sizes of the FV we proposed is different from the results of Borrelli et al. for intermediate age-related macular degeneration (iAMD) (10,26). Although there is no relevant research published for the FV characteristics of PCV, considering the characteristics of the power-law distribution, the statistics used for the normal distribution (average and standard deviation) are inapplicable (15,16). Moreover, we prove that once we limited the observed sizes to a specific range (e.g., 900 to 1,125 µm2), the FV were normally distributed and suitable for those statistics.
The FV1125 was positively correlated with age, which is consistent with the previous research (27). In the comparison between healthy groups (Old control group and Young control group), the FV1125 is significantly higher in the Old control group, and there is no difference between aging eyes (PCV group and Old control group), indicating the change of the FV1125 was related to the increasing of the total number of FV by aging.
The FV1125% is significantly higher in the PCV eyes compared to the normal aging eyes (PCV group and Old control group), and it shows no difference between healthy groups (Old control group and Young control group), indicated FV1125% was related to the pathological changes of CC.
Our method removed the binary results which were smaller than the Lr before analysis to prevent a large number of unreliable noises from distorting the analysis results. (Figure 4). The previous studies have shown that the differences between the disease and the control group was small (10,22,28,29), the noise could have a direct impact on the analysis.

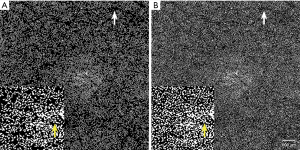

After we removed the noise (Figure 4A), we found several small areas without FV. This was due to normal CC structures, whose intracapillary distances were smaller than Lr (2), and the SS-OCTA cannot discriminate.
The FV1125 was significantly higher, and the CT was significantly lower in the AVI normal group. And had no difference between the AVI normal and the AVI-fellow group after treatment. Indicated that the increasing of the FV1125 was related to the increased total number of FV, which was due to the anti-VEGF agent effects, caused the reduction of CT and CC diameter (30-32). The FV1125% of AVI normal group significantly raised to the AVI-fellow group level, indicated that the increasing of FV1125% was not only due to the CT change, but both PCV affect eyes and fellow eyes had similar pathological changes of CC (33,34), and we provided a possible way to detect those pathological changes.
The CT significantly decreased after treatment was consistent with previous researches (35,36). We expected that the CT change was negatively correlated with the FV change of the AVI normal group. But the result was not statistically significant (β=−0.336, P=0.343). We thought it was related to the histological position of AVI normal group. Since 17 images of AVI normal group belongs to the C3 subfields (94.4%) and 1 image belongs to the C2 subfield (5.6%). The location of the CT measurement was at the center of C1, which may cause some impacts. Our results of the CT and the FV relationship of the fellow eye were consistent with the previous results (5-7). It indicated that our results were specific for pathological changes in the CC structure.
The limitations are the small sample size, especially the small number of the AVI normal group, and the limited exploration of relatively normal subfields of CC in PCV; Our result was a relatively narrow interval, and the conclusion will be different because of the different peak range selection and the Lr of the different instruments; the FV sizes range should be different with different diseases because the various pathological changes in the CC structure.
In this research, we proposed a modified method to invest the FV which followed a non-normal distribution. The proportion of sizes interval (e.g., FV1125%) was specific for pathological changes in the CC structure. The CC perfusion and CT of PCV significantly decreased after AVI treatment.
