Comparison of high-resolution magnetic resonance imaging and micro-computed tomography arthrography for in-vivo assessment of cartilage in non-human primate models

Kevin Tse Ve Koon1^, Denis Grenier1, Fabrice Taborik2, Anne-Laure Perrier3^, Laurent Mahieu-Williame1^, Luc Magnier4, Thomas Chuzel4, Hugues Contamin2, Emmanuel Chereul4^, Olivier Beuf1^

1Univ. Lyon, INSA-Lyon, Université Claude Bernard Lyon 1, UJM-Saint Etienne, CNRS, Inserm, CREATIS UMR 5220, U1294, Lyon, France; 2CYNBIOSE, Marcy-l'Étoile, France; 3Univ. Grenoble Alpes, Univ. Savoie Mont Blanc, CNRS, LOCIE, Chambéry, France; 4VOXCAN, Marcy-l'Étoile, France

^ORCID: Kevin Tse Ve Koon, 0000-0001-9780-8337; Anne-Laure Perrier, 0000-0002-4698-2375; Laurent Mahieu-Williame, ORCID: 0000-0003-3990-8131; Emmanuel Chereul, 0000-0002-9309-9665; Olivier Beuf, 0000-0002-4516-4565.

Correspondence to: Kevin Tse Ve Koon. Univ. Lyon, INSA-Lyon, Université Claude Bernard Lyon 1, UJM-Saint Etienne, CNRS, Inserm, CREATIS UMR 5220, U1294, CREATIS Bâtiment Léonard de Vinci, 21 Avenue Jean Capelle Ouest, 69616 Villeurbanne Cedex, F69621 Lyon, France. Email: kevin.tsevekoon@creatis.univ-lyon1.fr.

Background: Non-human primate (NHP) could be an interesting model for osteoarthritis (OA) longitudinal studies but standard medical imaging protocols are not able to acquire sufficiently high-resolution images to depict the thinner cartilage (compared to human) in an in vivo context. The aim of this study was thus to develop and validate the acquisition protocols for knee joint examination of NHP using magnetic resonance imaging (MRI) at 1.5 T and X-ray micro-computed tomography arthrography (µCTA).

Methods: The first phase of the study focused on developing dedicated in vivo HR-MRI and µCTA protocols for simultaneous acquisitions of both knee joints on NHP. For MR, a dedicated two-channel receiver array coil and acquisition sequence were developed on a 1.5 T Siemens Sonata system and tuned to respect safety issues and reasonable examination time. For µCTA, an experimental setup was devised so as to fulfill similar requirements. The two imaging protocols were used during a longitudinal study so as to confirm that repeated injections of loxaglic acid (contrast agent used for µCTA) didn’t induce any bias in cartilage assessment and to compare segmentation results from the two modalities. Lateral and medial cartilage tibial plateaus were assessed using a common image processing protocol leading to a 3D estimation of the cartilage thickness.

Results: From HR-MRI and µCTA images, thickness distributions were extracted allowing for proper evaluation of knee cartilage thickness of the primates. Results obtained in vivo indicated that the µCTA protocol did not induce any bias in the measured cartilage parameters and moreover, segmentation results obtained from the two imaging modalities were consistent.

Conclusions: MR and µCTA are valuable imaging tools for the morphological evaluation of cartilage in NHP models which in turn can be used for OA studies.

Keywords: Cartilage; non-humane primate model; magnetic resonance imaging (MRI); X-ray micro-computed tomography; arthrography


Submitted Jan 14, 2020. Accepted for publication Oct 23, 2020.

doi: 10.21037/qims-20-116


Introduction

Osteoarthritis (OA) is a disease with increasing prevalence with ageing populations in western countries (1). Destruction and loss of articular cartilage are thought to be major elements involved in the pathophysiology of OA (2), however, it is still not clear whether this precedes, accompanies or is a consequence of changes in other tissues such as subchondral bone. One difficulty in detecting these changes in articular cartilage is the lack of nerves within and therefore damages can be painless (3) rendering early detection and treatments even more difficult. Actually, no therapeutic options are available apart from symptomatic relief through either exercise prescriptions (4) or drugs with questionable long-term effects (5).

Symptomatic knee OA in particular affects about 6% of adults above 30 years old (2) and more than 13% of persons under 60 years (6), with an estimated lifetime risk of developing it of nearly 50% (7) and rising with higher BMI and age. Detection is mainly carried out through imaging the knee joint (8-10) with recognized radiographic markers being joint space narrowing, presence of osteophytes, subchondral cysts and sclerosis. Among the different imaging modalities, conventional radiography is the most widespread but is limited mainly due to positioning issues, lack of direct visualization of articular cartilage (forbidding access to the physiopathology of OA), 2D images display multiple overlapping structures and last but not least the lack of sensitivity of the technique which hinders early detection. NMR techniques are major alternatives to conventional radiography (11-16) and magnetic resonance imaging (MRI) in particular due to its exquisite contrast, spatial resolution, 3D anatomical images and morphometric assessments. Moreover, multiple MRI-based techniques (T1-rho, T2 mapping) give access to different information on structure and content of cartilage related to the progress of OA (16). Any potential medical treatment is bound to be more successful if taken during the earlier stages. However, this is hard to be applied to humans since early detection of OA is a major issue. Subsequently, works have focused on animal models such as mice (17), rats (18-20), guinea pigs (21), rabbits (22,23) and non-human primates (NHPs) (24-29) whereby OA could be induced.

Small animal models of OA do not mimic perfectly the complex conditions occurring in human OA which is the case for OA in NHP thus representing a useful model. However thinner cartilage in NHP requires higher image resolution for detection of radiographic OA, an essential step before considering more advanced imaging techniques. In the case of MRI, this can be done at the cost of increased scan times leading to a trade-off between scan times and signal to noise ratio (SNR). Use of dedicated coils for knee imaging of NHP can greatly contribute to this end but no such commercial coil suited for NHP is available which has possibly hindered further studies on this model. Another possible imaging modality is X-ray micro-computed tomography which can provide even higher spatial resolution and enables both cartilage and bone assessment. However, knee cartilage imaging requires injection of a contrast agent before application and this injection procedure may generate either a damage to the cartilage and/or a bias in the cartilage thickness determination in the acquired images which therefore needs to be looked into specially in an in vivo context.

A recent study (30) has tackled multimodal imaging (MRI and high-resolution peripheral quantitative computed tomography) of cadaveric knees but to the best of our knowledge none has tackled knee or cartilage characterization through in vivo imaging of a NHP model although this model is a very interesting one with respect to OA. The present study was geared towards:

  • Developing a protocol (setup and sequence) that will yield reproducible high-resolution MR images of knee joints in NHP models and thus help in the development of more advanced MRI studies.
  • Developing a protocol (setup and contrast agent protocol) to acquire micro-computed tomography arthrography (µCTA) images of the knee joints in the same NHP models and cross-checking the absence of impact of the procedure on cartilage characterization.
  • Evaluating the potentialities of µCTA by comparing cartilage layer thicknesses quantified through both imaging modalities.

Methods

The first phase of this study focused on the development of a HR-MRI protocol for knee joint examination of NHP on a 1.5 T Siemens-Sonata system. It enabled simultaneous acquisition of high-resolution images of both knee joints within a time frame respectful of animal ethics. Upon validation, six primates were enrolled in this preliminary longitudinal study where HR-MRI and X-ray µCTA were performed to assess the eventual impact of the µCTA protocol (repeated injection of loxaglic acid) on the morphologic evaluation of cartilage parameters of the medial and lateral tibial plateaus. This evaluation was carried out through a double segmentation (manual followed by an automatic regional) procedure of the acquired images, yielding segmented medial and lateral tibial cartilage regions of interests (ROIs). Inside these ROIs, the quantification of cartilage thickness was performed using the method developed by Hildebrand et al. (31) giving 3D thickness parameter distributions characterizing each ROI. These distributions were then statistically tested (one-way ANOVA run on XLSTAT) for differences of their means. Obtained mean thicknesses of the lateral and medial tibial cartilages have also been compared using Bland-Altman analyses.

MRI acquisition protocol

To obtain suitable MR images, a homemade receiver coil was developed targeting maximum SNR with the best signal uniformity. In its final version (32) the coil was made up of two channels each consisting of a rectangular copper track coil having internal dimensions 30 mm × 35 mm and etched on a flexible 508 µm thick substrate (RogersTM RT/Duroid 5880) which was in turn etched on a rigid cylindrical tube fitting the NHP knee as shown on Figure 1A. CT and CM are two CMS capacitors with respective values of 620±20 pF and 100±2 pF while the PIN diode was a DH80055 one. Optimal coil overlapping was sought so as to minimize coupling between the two elements as shown in Figure 1B (|Snm| parameter <–20 dB). A coil configuration file was created to drive the MR system interface in array mode. Experimental characterization (signal uniformity and SNR) was performed on cylindrical phantoms filled with 1.25 g/L of NiSO4 and 5 g/L of NaCl solution. SNR was calculated by taking the ratio between mean signal intensity inside the coil volume in the ROI corresponding to cartilage region and standard deviation (SD) outside. Signal uniformity is taken to be the SD of the signal intensity inside the coil in the ROI as shown in Figure 2. This homemade coil was compared to the Siemens small loop coil (FLS) which was the only available commercial solution for our purpose at our facility.

Figure 1 (A) Coil geometry and (B) reflection and transmission (S) parameters of the two channel array coils in experimental configuration.
Figure 2 MRI images of a water phantom used for SNR characterization of the developed receiver coils. MRI, magnetic resonance imaging; SNR, signal to noise ratio.

During acquisitions on primates, one dual-channels array coils was used per knee, using two flex interfaces from Siemens. The primates were in supine position with both legs positioned inside a foam having a susceptibility similar to tissue values (33). Unless this foam was used, the shimming process did not yield proper results (34). Both dual array coils were placed on top of patella to encompass the whole knee joint (Figure 3). A minimum distance of 100 mm between both knees was kept to ensure at least 20 dB decoupling between the two elements located at medial sides of each coil. HR-MRI was performed in the sagittal plane using a 3D water excitation FLASH sequence: 25° flip angle, TR/TE =27/11.7 ms, 70 Hz/Pixel receiver bandwidth. A total of 120 partitions (220 µm thick) were acquired with a FOV of 50×50 mm and an in-plane pixel of 112×131 µm2. Scan time was 20 min for sequential acquisitions of both knees.

Figure 3 Experimental setup for MRI acquisitions. MRI, magnetic resonance imaging.

µCTA acquisition protocol

To clearly distinguish the cartilage, injection of a contrast agent was mandatory; 2 mL loxaglic acid (320 mgI/mL) with 40/60 dilution in PBS was injected in the synovial capsule using a 23G needle. µCTAs were performed on a GE Locus µ-CT at standard voltage (80 kV) and amperage (450 µA) parameters with an isotropic resolution of 90 µm. Simultaneous acquisition of both knees was done in 15 minutes. Figure 4 shows the positioning of the knees inside the µCT scanner requiring a specific seating setup.

Figure 4 Experimental setup for µCTA acquisitions. µCTA, micro-computed tomography arthrography.

Study protocol

All animal studies and experiments were performed under project license N° 1077 granted by the Institutional Animal Care and Use Committee (IACUC) of VetAgro-Sup in compliance with the European regulation on animal experimentation (Directive 2010/63/EU) and its national transposition. Every effort was done to minimize animal suffering and reduce the number of animals used in the experiments.

A total of six young (average age of 4 years at the beginning of the study, weights ranging between 3.2 and 4.3 kg at the end of the study) female cynomolgus monkeys (Macaca fascicularis) were examined during this phase of the study. Animals were acclimated for at least 10 days prior to the first day of study, and were housed collectively on a natural bedding with the following ambient parameters: ventilation with >10 air changes/hour, and no air recirculation, 12-hour light/12-hour dark photoperiod, room temperature of 22±4 °C, and a humidity of 55%±20%. Animal room and enclosure cleaning was performed on a daily basis. They were fed with standard diet (Ssniff Pri V3944-000); food ration was adapted for each individual according to its body weight (100 g per animal per day under 5 kg; 200 g over 5 kg). One fruit was provided daily to each animal. Delicacies were also given in the bedding at the end of the day to allow foraging, as part of the testing facility environmental enrichment program.

The primates were assessed using both HR-MRI and µCTA imaging of the knee joints (lateral and medial tibial plateaus). The latter modality requires injection of a contrast agent in the synovial capsule (10 knee flexions-extensions were performed post-injection). One of the goals of the study was thus to assess the eventual impact of repeated injection of loxaglic acid. Only the right knee underwent µCTA imaging while HR-MRI (MR acquisitions of the right knee were carried out after µCTA acquisitions) was applied to both knee joints and several examinations were scheduled at baseline, 30, 60, 90 and 180 days. The primates were fasted at least 12 hours for food and 2 hours for water before starting the anaesthetic procedure. For HR-MRI exam, induction of anaesthesia was performed by intramuscular (IM) injection of ketamine (15 mg/kg) and midazolam (1.25 mg/kg). Around 1 hour after the first injection, maintenance of anaesthesia was performed by IM injection of ketamine (7.5 mg/kg) and midazolam (0.63 mg/kg). If necessary, a third injection (same agents and same doses as previously) could be used to increase acquisition time. For µCTA exam, induction of anaesthesia was performed by IM injection of ketamine (10 mg/kg) and midazolam (1 mg/kg). An endotracheal tube was inserted into the trachea and anaesthesia was maintained with isoflurane (0.5%) in oxygen (100%, 1 L/min). For both protocols, physiological vitals of the animals were monitored (temperature, breathing rate, blood pressure and heart rate).

Two of the primates presented missing data since HR-MR images presented severe artifacts due to unknown reasons. This rendered segmentation impossible (both for left knee at D180). Otherwise, for all other primates the image processing procedure could be applied at all time steps.

3D thickness parameter extraction procedure

So as to suppress an inter-observer variability, images from both modalities were processed by the same operator using the GE Locus µ-CT Microview software version ABA2.2:

  • Image pre-processing step: image smoothing using an anisotropic filtering (adaptive threshold for each modality but identical for all monkeys within each modality) enabled noise attenuation in the images and better cartilage frontier visualization.
  • Segmentation step: acquired stacks of slices were sampled; about 1 out of every 4–5 slices. These were processed to obtain 3D thicknesses of the lateral and medial cartilage tibial plateaus. A manual contour segmentation was performed to roughly isolate the cartilage in the ROIs, followed by a regional automatic global segmentation extracting accurately the morphology of both medial and lateral cartilage ROIs. The thresholds used in this automatic procedure were modality dependent but the same for all animals. A manual correction was sometimes applied if the automatic segmentation was not appropriate. When this was not possible for a given slice, an extrapolation was carried out using the two adjacent slices.
  • Quantification step: inside the segmented cartilage ROIs, the quantification of cartilage thicknesses was performed following the method described by Hildebrand et al. (31). For each pixel p found inside the 3D segmented region Ω, the local thickness τ(p) is calculated as the diameter of the largest sphere inscribed inside Ω and containing p:

    τ(p)=2.max({ r|psph(x,r)Ω,xΩ })

x and r are respectively the center and radius of the spheres which had sizes quantized by steps of 90 µm (the voxel size in µ-CT).

Morphological results were compared in terms of distribution of the 3D thickness parameters obtained for each cartilage compartment. The spread of the thickness distribution as well as mean and maximum-values characterize the cartilage compartment. The mean thickness of the structure is defined as:

τ ¯ = 1 Vol( Ω ) τ( p ) d 3 p;Vol( Ω )= d 3 p

where the triple integral is taken over the 3D segmented region Ω.

The term mean thickness will be used when describing the term defined in Eq. [2] while the term average will be used when considering an average over multiple measurements (at different time points or different primates). The maximum thickness of a cartilage compartment is defined as the diameter of the biggest sphere obtained through the described procedure.

Mean thicknesses of the lateral and medial tibial cartilage have also been compared using Bland-Altman analyses:

  • Comparisons on the left knee at different time points will give us an insight on the reproducibility of the MRI acquisition protocol and image processing;
  • Data on the right knee obtained through MRI will enable evaluation of the eventual impact of the injections of the µCTA contrast agent on the cartilage thickness;
  • Comparisons of µCTA data at different time points enable evaluation of the reproducibility of the µCTA acquisition protocol and image processing;
  • And finally mean thicknesses obtained through MRI and µCTA will enable comparison of the two modalities.

The results of the Bland-Altman comparisons are summarized in terms of confidence intervals (CIs) of the biases and CIs of the differences between paired values. A CI of the bias including zero and in the same manner, a CI for the differences under 90 µm are signs of concordance between measurements.

It is also interesting to compare the different distributions obtained in a similar manner to what has been done with mean thicknesses. To do so, one-way ANOVAs with a significance level set to 0.05 where the null hypothesis is that the distributions have equal means (hereby mean refers to the mean of the distribution which is different to the mean thickness) and Tukey’s post-hoc analysis were performed. It should be noted that here the mean of the distribution is related to but not equal to the mean thickness defined by Eq. [2]. Three different cases will be distinguished: (I) a P value above the significance level which points to an absence of difference between the means of the distributions, (II) a P value under the significance level but with a CI for the difference of the means under 90 µm which will be considered as an absence of difference since in the quantification procedure, the bin size is equal to 90 µm. (III) a P value under the significance level but with a CI above or equal to 90 µm.


Results

MR images

Comparative SNR tests were carried out on the NaCl phantom between the Siemens small loop coil (FLS) and our homemade double channel coil (DC). The FLASH sequence used during the whole protocol displayed an SNR of DC 4.7 times higher than that of the FLS for a decrease in signal uniformity (SD inside the ROI) of about 1.4. In vivo acquisitions on knee joints of primates using the HR-MRI protocol yielded high spatial resolution images of the cartilage (Figure 5A,B).

Figure 5 Acquired images: Sagittal HR-MR images acquired on the right knee of a primate (A) medial and (B) lateral side and (C) coronal image or the right knee obtained from µCTA acquisitions. µCTA, micro-computed tomography arthrography.

µCTA images

An example of µCTA images obtained is shown in Figure 5C, where the cartilage appears as a hyposignal region surrounded by the subchondral bone and the inside of the synovial capsule in hypersignal intensity. The slice-sampling previously mentioned enabled the operator to avoid the rare slices where the contrast agent had not properly diffused inside the synovial capsule.

Segmentation results and reproducibility of MRI protocol

Figure 6 shows an example of manual and automatic segmentations that have been carried out on the MR images (top row) and µCTA images (bottom row). From the segmented images, quantifications are carried out yielding 3D thickness parameter distribution from MR images of both left tibial cartilage compartments and specifically, Figure 7A,B are those obtained on all six primates at D0. Only the tibial plateau was studied because in spite of the dedicated setup, the femoral plateau was too thin with respect to our image resolution, to be considered for image processing. It can be noticed that two of the primates (SG1VP8 and SG1XF8) display higher maximum thicknesses in both compartments.

Figure 6 Results of manual (left column) and automatic (right column) segmentations of the tibial cartilage from MRI (top row) and µCTA (bottom row) images of the knee. MRI, magnetic resonance imaging; µCTA, micro-computed tomography arthrography.
Figure 7 3D thickness parameter distributions obtained through the quantification procedure: (A) left medial and (B) left lateral cartilage compartment, using segmented HR-MR images obtained on all primates at D0.

From the obtained thickness distributions, standard measures such as mean {Eq. [2]} and maximum thicknesses of each tibial compartment were extracted. In Figure 8, the time-based average of the mean thickness of left and right, medial and lateral tibial cartilage of all primates are reported for both imaging modalities. The displayed error bars correspond to the calculated SDs obtained from data over the five-time steps. Maximum relative SD for the left compartment was of 10%.

Figure 8 Time-based average of the mean thickness of left and right tibial compartments for all primates obtained by MRI and µCTA. Error bars correspond to the SDs of the calculated mean thickness over the five-time steps. MRI, magnetic resonance imaging; µCTA, micro-computed tomography arthrography; SD, standard deviation.

To assess the reproducibility of the determined mean thicknesses at different time points on each primate, Bland-Altman analyses were carried out by comparing the obtained values for the left knee at different time points through MRI. An example obtained at D0 and D90 is shown in Figure 9 whereby the full blue line represents the estimated mean bias, the dashed blue line the 95% CI for the bias and the dashed red line the 95% CI for the differences between paired values. To summarize the ten Bland-Altman plots (five time points were acquired), in Table 1 is given the 95% CIs for the bias (*) and the differences between paired values (#). As can be seen nine out of the ten CI for the bias include zero and only the comparison between D60 and D90 yields a CI excluding zero. As for the CI for the difference three of them display CI above 0.09 mm which is the bin size of the quantification procedure.

Figure 9 Bland-Altman and scatter plot of the mean thicknesses of lateral and medial cartilage obtained at day 0 (D0) and day 90 (D90).
Table 1
Table 1 Summary of Bland-Altman comparison of mean lateral and medial left tibial cartilage thicknesses obtained on all primates at different times steps through MRI
Full table

It is interesting to assess the reproducibility of the MR protocol using the distributions obtained. As an example, in Figure 10A,B are plotted the thickness distribution of both left tibial compartments obtained at all time steps for one primate. As can be seen, the resulting distributions are well super-imposed. Figure 11A,B display the resulting means of lateral and medial distributions at all the time steps and their associated 95% CIs obtained by running one-way ANOVAs at all time steps and applying Tukey’s post-hoc analysis on data from this single primate. The span of the vertical axis is set to 0.09 mm equal to bin sizes used in the quantification procedure. Twelve out of 20 of the comparisons yielded P value <0.05 indicating significantly different distribution means. This procedure was repeated for each primate and the results of the 104 tests (for two primates, acquisitions at D180 were not exploitable) are resumed in Table 2 (second line). Three categories were distinguished as follows: 30% of the comparisons yielded a P value above 0.05 (no statistically significant difference), 66% a P value under 0.05 but a 95% CI for the difference of the means under 0.09 mm and for only 4% were the P value under 0.05 and had a CI above 0.09 mm (columns 2–4 in Table 2). To put these results in perspective the same statistical tests were run at each time step but primate-wise. The results of the 132 inter-primate comparisons are also resumed in Table 2 (3rd line) whereby for the same classification we had respectively 11%, 39% and 51% (the sum exceeds 100% due to round-off).

Figure 10 3D thickness parameter distributions obtained through the quantification procedure: (A) left medial and (B) left lateral tibial compartment obtained by MRI for a single primate (SG1XF8) at all time steps. MRI, magnetic resonance imaging.
Figure 11 Plot of the means of the left (A) lateral and (B) medial tibial distributions obtained by MRI for one primate over the five-time steps. Vertical bars correspond to the CIs obtained by running Tukey’s post-hoc analysis following a one-way ANOVA. MRI, magnetic resonance imaging; CI, confidence interval.
Table 2
Table 2 Summary of the one-way ANOVAs with Tukey’s post-hoc analysis carried out on different distributions obtained
Full table

Evaluation of the impact of the µCTA protocol

Since the µCTA protocol requires contrast agent injection, it is important to assess whether this procedure induces a bias on the obtained results. The results obtained through MRI on the right knee (only this knee underwent the µCTA protocol) at different time steps were first quantified. The resulting distributions were then compared using the same statistical test, thus yielding 120 two-by-two comparisons for the difference of the mean. These are summarized in Table 2 (4th line). Using the same classification, we obtained respectively 18% comparisons with a P value above 0.05, 77% with a P value under 0.05 but a CI under 0.09 mm and only 5% a CI above 0.09 mm.

The time-based averages of the mean thickness of right medial and lateral compartments through MRI were computed and displayed in Figure 8. In this case, the maximum relative SD obtained was of 15%.

Bland-Altman analyses were also carried out on the mean thicknesses of lateral and medial tibial cartilages of the right knee through MRI. A summary of the obtained CIs for the bias (with *) and the differences of paired values (with #) is given in Table 3. One of the comparisons yielded a CI for the bias excluding zero (D60 vs. D90) while seven had a CI for the differences between paired values above 0.09 mm.

Table 3
Table 3 Summary of Bland-Altman comparisons of mean lateral and medial right tibial cartilage thicknesses obtained on all primates at different times steps through MRI
Full table

Evaluation of results obtained by µCTA

The final objective of this study was to assess µCTA for cartilage morphology imaging. The first task is to evaluate the reproducibility of data obtained through µCTA. The obtained distributions for one primate is shown in Figure 12. Similar statistical tests carried out on the resulting distributions for all primates across the different time-steps yielded the results summarized line 5 in Table 2. Eleven percent comparisons with a P value above 0.05, 83% had a P value under 0.05 but a CI under 0.09 mm and only 6% a CI above 0.09 mm. The time-based averages of the mean thickness of right medial and lateral compartments through µCTA were computed and displayed in Figure 8. In this case, the maximum relative SD obtained was of 7%.

Figure 12 Thickness distribution of (A) right medial and (B) right lateral tibial compartment obtained by µCTA for a single primate (SG1VP8) at all time steps. µCTA, micro-computed tomography arthrography.

Bland-Altman analyses carried out on the mean thicknesses of lateral and medial tibial cartilages of the right knee through µCTA are summarized in Table 4. One of the comparisons yielded a CI for the bias excluding zero while five had a CI for the differences between paired values above 0.09 mm.

Table 4
Table 4 Summary of Bland-Altman comparison of mean lateral and medial right tibial cartilage thicknesses obtained on all primates at different times steps through µCTA
Full table

MRI and µCTA distributions of the right compartments were then compared. For each primate, MR distributions obtained at a given time step were statistically tested (t-test with Welch’s correction to account for different variances of distributions) with the equivalent µCTA distribution. Sixty two-by-two comparisons were carried out and the subsequent results which are summarized in Table 5 show that only 2% of the comparisons yielded a P value above the significance level to be removed from the manuscript with an additional 50% having a P value under the significance level and a CI of the difference of the means under 0.09 mm. Of the remaining 48% having a CI above 0.09 mm, 45% had a CI ranging between 0.09 and 0.18 mm and 3% above 0.18 mm.

Table 5

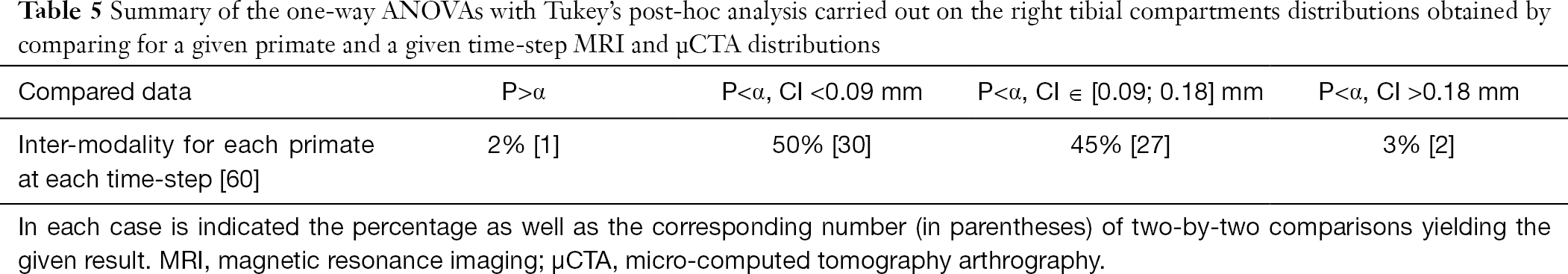

Table 5 Summary of the one-way ANOVAs with Tukey’s post-hoc analysis carried out on the right tibial compartments distributions obtained by comparing for a given primate and a given time-step MRI and µCTA distributions
Full table

Finally, the mean thicknesses of lateral and medial tibial cartilages of the right knee obtained through µCTA and MRI at similar time-steps are compared with Bland-Altman analyses and the resulting CIs for the bias (with *) and the difference of the paired values (with #) are summarized in Table 6. None of the five comparisons yielded a CI for the bias which didn’t include zero. However, all displayed a CI for the difference of paired values which exceeded 0.09 mm.

Table 6
Table 6 Comparison of mean lateral and medial right tibial cartilage thicknesses obtained on all primates at similar times steps obtained through µCTA and MRI
Full table

Discussion

MRI protocol

The development of the home-made coil was a starting point towards enabling the application of the MRI protocol on the NHP knees. Indeed, in addition to providing high-resolution images, it also allowed for a reasonable scan time which is an important factor to take into consideration if one wants to follow ethical guidelines. The use of the susceptibility matching foam was also of equal importance since without it shimming on both knees was nearly impossible and thus simultaneous acquisitions of both NHP knees would have been impossible. Both factors played an important role in rendering the acquisitions possible within the set time frame.

Considering results obtained on the 3D thickness parameter distributions, Figure 7A,B report the thickness distributions of both left compartments for all primates at baseline. Two sub-groups appear considering maximum cartilage thickness in either compartment. The same can be deduced from Figure 8 and is weight-related; SGIVP8 and SG1XF8 had the highest weights. This is also pointed out when considering the inter-primate statistical tests (line 3, Table 2). Among the 67 comparisons yielding P>0.05 and CI¯ >0.09 mm, 58 are due to differences between SG1VP8 and SG1XF8 and the rest of the group.

On an individual basis, the resulting distributions at different time-steps for the left compartments have comparable shapes as can be seen in Figure 10A,B. Statistical analysis carried out confirms this visual impression: Figure 11 shows the difference of the means of the distributions are all well below the resolution of the quantification procedure (0.09 mm) and in-plane pixel size of MR images although statistical tests point out a significant difference. Extending to all primates resulted in the same trend (Table 2, line 2) since a vast majority (96%) of the tests yielded either P>α or CI¯ <0.09 mm.

Bland-Altman analyses (Table 1) carried out on the mean of left lateral and medial tibial thicknesses also follow the same trend. With only mean values at D60 and D90 having a CI for the bias excluding zero. Considering the CI of paired values, three comparisons had a limit above 0.09 mm which was the bin size of our segmentation procedure. However, considering that the actual voxel size of the MR images was 112×131×220 µm3, then it is reasonable to assume that 0.09 mm is too restrictive and that 0.18 mm would be a more adapted threshold. In this case none of the CIs had a limit exceeding this value.

We can thus conclude that our results present very little intra-individual variability also meaning that primates as from 4 years old have stable cartilages within the following 6 months (and probably after). The reproducibility of our procedure was also highlighted by the relative SD obtained which is less or equal to 10%. The protocol can hence be said to deliver sufficiently reliable results to be used for further investigation.

Evaluation of the impact of the µCTA protocol

An examination of results obtained on the right knee through MRI can allow us to have a very good insight on the impact of the µCTA protocol. The later requiring injection of a contrast agent, it was necessary to check that neither the injection procedure nor the contrast agent produce side-effects to the visible cartilage structure. MRI on the right knee was carried out after µCTA at all the time steps. ANOVAs on the obtained distributions (Table 2, line 4) indicate that there was no difference in results compared to the left knee; only 5% (6 out of the 120 comparisons) exhibited significant differences of the means of the distributions (for the left knee it was 4%).

This is reinforced when comparing the time-based average of the mean thicknesses of left and right tibial compartments measured by MRI and shown in Figure 6. Left and right values although unequal are all independently consistent as can be seen with the small SDs which are generally equivalent in both compartments. Bland-Altman analyses display only one CI for the bias excluding zero. Coincidentally it concerned the same two time points (D60 and D90) as for the left compartment but this cannot be accounted for at present. None of the CIs for the difference of paired values had a limit exceeding 0.18 mm similarly to the left knee. This indicates that there is no increased variability on the right knee due to the µCTA protocol. SG1HJ8 is an outlier with average values of left and right medial tibial cartilage well apart (respectively 0.92 and 1.19 mm). This difference has not yet been accounted for.

Evaluation of µCTA

In the previous section, it was shown that the µCTA injection protocol was bias-free. Comparing the distributions and mean cartilage thicknesses obtained at different time-steps through µCTA will test reproducibility of µCTA on NHP for tibial cartilage imaging. This was verified when considering for example Figure 12 which shows µCTA thickness distributions of the right compartments at different time-steps for one primate. Overall qualitative impression is that of well super-imposed distributions leading us to believe that the µCTA imaging procedure produced consistent results. This is quantitatively supported by the one-way ANOVAs carried out and whose results are shown in Table 2 (line 5). Although the means of the distributions are statistically significantly different, the differences are well under the set 90 µm level. An overwhelming majority (94%) do not display significant differences of the means above 90 µm. This is comparable to MRI results with respectively 96% and 95% for the left and right compartments.

Considering the mean thickness of each compartment calculated from µCTA images, time-based average for each primate (Figure 8) displayed SDs comparable to the MRI-values; in the medial compartment, maximum SD was of 0.059 mm for MRI and slightly higher to 0.072 mm for µCTA. On the lateral compartment, it was the opposite with 0.076 and 0.028 mm respectively for MRI and µCTA. In any case, the SDs can be accounted for by the quantification procedure. Bland-Altman analyses (Table 4) also support this statement since 9 out of 10 comparisons had a CI for the bias including zero. It should be noted that the one which didn’t fall into this category was again D60 vs. D90. As for the CI for differences between paired values, none had limits above 0.18 mm.

Comparing results obtained through the two modalities, the time-based averages obtained for individual primates showed some discrepancies. For instance, in the medial compartment, the maximum difference was of 0.15 mm (SG1XF8) whereas in the lateral compartment, it was of 0.12 mm (SG1HC8). Bland-Altman comparisons (Table 6) display CIs for the bias which all include zero however the limits are higher than in all the other three situations (timewise left MRI, right MRI and right µCTA). Moreover, there is a slight tendency for theses CI to be centered on negative values particularly for the earlier time steps but of course the small number of samples doesn’t enable further conclusions. Time-based averages of µCTA values for the mean cartilage thickness in the tibial compartment tend to be smaller than MR values (Figure 8) as has been also observed in another study on cadaveric knees (32). As for the CIs for the difference between paired values obtained through Bland-Altman analyses (Table 6), one can notice that among the five comparisons, two have limits which exceed 0.18 mm.

A further analysis of MRI and µCTA distributions of the right compartments (Table 5) show that nearly half (48%) had CIs above the 90 µm. One of the potential reasons might be the timing of µCTA with respect to the injection of the contrast agent. Since the contrast agent can diffuse inside the cartilage structure, this can lead to a reduced measured cartilage thickness. Another possible explanation comes from the unequal resolutions of MRI and µCTA acquisitions. Voxel sizes in MRI are bigger than that of µCTA and the quantification procedure was carried out with a common bin size equal to that of µCTA acquisitions. It is plausible that in this context, the quantification procedure for MRI images will lead to distributions with higher means. It can also be argued that if the threshold was set to 0.18 mm which is reasonable with respect to the bin sizes and voxels sizes of MRI images, the proportion of statistical comparisons pointing to a difference between µCTA and MRI distributions decreases drastically to a mere 3% as can be seen from Table 5.

Finally, it is also interesting to take note of some characteristic values of the tibial cartilage of primates. The maximum thickness measured in the medial compartment is equal to 2.1 mm (MRI) and 2.2 mm (µCTA) whereas in the lateral compartment it is equal to 1.0 mm (MRI) and 1.2 mm (µCTA). Mean thicknesses measured are equal to 1.0 mm for the medial section and 0.4 mm for the lateral section (MRI and µCTA). This places the mean tibial cartilage thickness of NHP in between those of small animals like mice, rats or guinea pigs (mean thicknesses are respectively of the order of 30, 200 and 300 µm) and that of humans where the mean thickness is around 2 mm. These values represent tangible targets for all imaging protocols carried out on NHP.


Conclusions

In this study, a dedicated MR protocol using standard imaging to acquire high spatial resolution (112×131 µm2/220 µm thickness) images of knee cartilage of NHPs in a reasonable scan time (20 minutes) was developed and validated. Key points in enabling this was the use of a dedicated homemade coil and susceptibility matching foam for knee positioning. A second imaging protocol using µCTA enabled fast (15 minutes) and relevant (90 µm isotropic resolution) acquisitions of the NHP knees also allowing to study its 3D cartilage layer.

Tibial cartilage images from those two modalities were then compared on six NHP models during a 180 days protocol with five examinations (D0, D30, D60, D90 and D180) for both knees (MRI for both knees and µCTA for the right). From the acquired images, it was possible to segment tibial cartilage and deduce bin distributions characterizing them and then deduce mean cartilage thicknesses of lateral and medial tibial compartments. These were used to statistically test the reproducibility of the MR and µCTA protocols, whether the µCTA protocol was bias-free and lastly the consistency of MR and µCTA based values.

The first three points were clearly positive meaning that both modalities together with their developed experimental setup were valuable to measure cartilage morphology in NHP models. For the last question, results from MR and µCTA were coherent but a slight tendency for smaller µCTA based values compared to MRI was observed but can only be confirmed using additional subjects.

In any case, this work shows the possibility of using NHP in designing follow-up studies focusing on OA by for example inducing it. On the MRI side, using these models, it would be interesting to develop and test sequences such as T2 mapping, T1rho or dipolar contrast to assess their sensitivity to earlier signs of cartilage degradations.
