MR-guided blood-brain barrier opening induced by rapid short-pulse ultrasound in non-human primates

Hui Zhou1,2, Yang Liu3, Xiaojing Long3, Yangzi Qiao1, Jo Lee1, Xin Liu1,4, Hairong Zheng1, Chao Zou1,4

1Paul C. Lauterbur Research Center for Biomedical Imaging, Shenzhen Institutes of Advanced Technology, Chinese Academy of Sciences, Shenzhen, China; 2The Shenzhen College of Advanced Technology, University of Chinese Academy of Sciences, Shenzhen, China; 3Research Center for Medical AI, Shenzhen Institutes of Advanced Technology, Chinese Academy of Sciences, Shenzhen, China; 4Key Laboratory for Magnetic Resonance and Multimodality Imaging of Guangdong Province, Shenzhen, China

Correspondence to: Dr. Chao Zou; Dr. Hairong Zheng. Paul C. Lauterbur Research Center for Biomedical Imaging, Shenzhen Institutes of Advanced, Technology, Chinese Academy of Sciences, 1068 Xueyuan Avenue, Shenzhen University Town, Shenzhen, China. Email: chao.zou@siat.ac.cn; hr.zheng@siat.ac.cn.

Background: Opening the blood-brain barrier (BBB) with focused ultrasound and microbubbles (MBs) has potential use in non-invasive targeted therapy for central nervous system (CNS) diseases. Rapid short-pulse (RaSP) ultrasound with a microsecond sequence has been proposed as a minimally disruptive and efficient method for opening the BBB. This work aimed to test the feasibility and safety of BBB opening in a non-human primate model using combined RaSP ultrasound sequence and MBs.

Methods: The BBB of 2 rhesus macaques were opened with RaSP and the commonly used 10 millisecond long pulse (LP), combined with microbubble (SonoVueTM, 0.2 µL/g) injection in a bolus. The transducer’s central frequency was 300 kHz, and the acoustic pressure was set to 0.56 MPa calibrated in water. The BBB opening procedure was guided and evaluated with contrast-enhanced magnetic resonance imaging. The relative signal enhancement was compared between RaSP and LP sonication. T2-weighted fast-spin echo (FSE) and T2*-weighted gradient echo (GRE) sequences were scanned to evaluate edema and micro-bleeding at the end of the procedure.

Results: The relative signal enhancement was significantly higher (P<0.01) in the focal area compared to a similar area of the opposite hemisphere at all time points after sonication in each monkey, indicating the successful opening of the BBB. The relative signal enhancement in RaSP reached more than 60% of that with LP in our experiment, while the energy deposition was only 6% of LP. No edema or hemorrhage was found on magnetic resonance images after RaSP.

Conclusions: Combined RaSP ultrasound and MBs for the BBB opening is a practical method in large animal models.

Keywords: Magnetic resonance imaging (MRI); rapid short-pulse ultrasound (RaSP ultrasound); blood-brain barrier opening (BBBO); non-human primates


Submitted Sep 08, 2020. Accepted for publication Jan 15, 2021.

doi: 10.21037/qims-20-1047


Introduction

The blood-brain barrier (BBB) is a selectively permeable boundary separating the parenchyma of the central nervous system (CNS) from systemic circulation (1). The BBB keeps the microenvironment of the CNS stable while limiting the passage of most small pharmaceutical molecules and nearly all large molecules, such as monoclonal antibodies, gene-therapy drugs, and recombinant proteins (2). Various diagnostic agents and drugs have been developed to treat CNS diseases; however, the intact BBB can prevent these agents, whether taken intravenously or orally, from reaching the CNS in effective amounts. Therefore, methods to permit the passage of desired substances in effective amounts through the BBB are needed.

Several methods have been studied to overcome the BBB, including lipophilic chemical modification of agents or the use of biological transporters. However, these measures have low spatial specificity unless intra-arterial infusion or direct transcranial administration are used, which are not ideal for targeted drug delivery (3). Temporarily opening the BBB for drug delivery with low-intensity pulsed ultrasound (4-6) combined with microbubbles (MBs) has shown promise in preclinical studies in animal models and even in human subjects (5,7-14). Ultrasound parameters, MB types, and the dose applied are the key determinants of BBB opening’s safety and effectiveness (1,9,15,16). Magnetic resonance imaging (MRI) is widely adopted for feasibility and safety verification in these studies. Hynynen et al. (7) and McDannold et al. (8) applied low-intensity focused ultrasound in conjunction with intravenously administered MBs (Optison, diameter: 2.0–4.5 μm, 0.05 mL/kg) for targeted BBB opening in rabbits under the guidance of MRI. The acoustic pressures varied from 1 to 4.7 MPa at 1.63 MHz, and burst length varied from 10 to 100 ms with 1 Hz repetition in these studies, and the BBB recovered within 24–48 hours with no neuronal damage below 1 MPa. Brain tissue damage was found above 2.3 MPa, while the rabbits did not show any neurological symptoms. Samiotaki et al. (9) and Downs et al. (10) conducted quantitative studies with MRI on focused ultrasound-induced BBB opening in mice (acoustic pressures 0.30–0.60 MPa at 1.5 MHz, 67 µs burst length, 10 Hz repetition; MBs diameter: 1–8 µm, concentration 1 mL/kg) and in the long-term estimation of safety in non-human primates (acoustic pressures 200–400 kPa at 500 kHz, 10 ms burst length, 2 Hz repetition; MBs diameter: 4–5 μm, concentration 0.1 mL/kg). The authors found that the BBB remained open for 24 hours or sometimes for several days in mice due to the possible vascular damage under higher acoustic pressures or larger MBs. In the primate study with a cognitive task, primates’ task-reaction time increased significantly on the day of sonication, without long-term negative physiological or neurological effects, and returned to baseline within 4–5 days. Chai et al. (17) opened the BBB of rats with a 400 kHz ultrasound transducer and measured the kinetics of permeability changes with dynamic contrast-enhanced MRI. The kinetics recovered to baseline within 24 hours. Recently, BBB opening with MR-guided focused ultrasound was investigated in patients being treated for neurological diseases (11-13).

Despite the BBB opening reports with the combination of ultrasound and MBs, the potential for side-effects, such as neuronal damage, red blood cell extravasation, and neuroinflammation, should be assessed before this technique is applied clinically (12,13,16,18). Efforts have been made to improve these methods' safety by optimizing the acoustic and MB parameters to shorten the recovery time of the BBB and reduce albumin infiltration into the brain. Sonication with short pulses (<1 ms) is reported to be sufficient for BBB opening with much less energy deposition. Choi et al. disrupted the BBB of mice using a 33 µs burst length at 1.5 MHz with 10 Hz repetition (19). O'Reilly et al. (20) induced BBB disruption in rats with a single 3 µs pulse burst (at 1.18 MHz with 1 Hz repetition under 0.54 MPa). Samiotaki et al. (21) found that 67 μs pulse length with 10 Hz repetition could also cause BBB opening in mice under 0.45 MPa acoustic pressure, and the permeability change, opening volume, and reversal time were comparable to those of long pulses (LP) (>1 ms) under lower acoustic pressure.

Recently, Morse et al. (22) reported that a rapid short-pulse (RaSP) ultrasound sequence (5 µs bursts per 0.8 ms, continuously repeated 13 times every 2 seconds, acoustic power 0.35 MPa) with SonoVue MBs (5 µL/g injections in vein) was efficient for drug delivery with minimal BBB disruption in mice. Their study showed that the drugs were more uniformly delivered into the brain than the traditional 10 ms LP (LP10). The duration of the permeability change was reduced to less than 10 minutes by RaSP. The amount of albumin released into the brain was 3.4-fold less than LP10, while the dextran delivery dosage was not significantly reduced. Although drug delivery efficiency in the long-term period of RaSP needs further optimization, the features of a uniform delivery profile and shorter BBB recovery time of RaSP are attractive to diagnosing and treating neurological diseases.

To the best of our knowledge, RaSP induced-BBB opening has only been reported in rodent studies. This work aims to verify the feasibility and safety of BBB opening with RaSP in a non-human primate model. Contrast-enhanced MRI was used to evaluate BBB opening quantitatively in both RaSP and LP trials. Traditional T2-weighted (T2w) and T2*w images were used to detect edema and hemorrhage. The results showed that RaSP achieved the desired opening of the BBB without adverse side effects under current ultrasound and MB parameters in a monkey model.


Methods

Animal preparation

The Institutional Ethical Committee approved all animal procedures of Animal Experimentation of Shenzhen Institutes of Advanced Technology, Chinese Academy of Sciences. The experiments (Certificate number: original-SIAT-IRB-170425-YGS-ZHR-A0094-2, amended-SIAT-IACUC-20200417-ZKYSZXJJSYJY-YB-ZHR-2-04) were carried out strictly following governmental and international guidelines on animal experimentation. All efforts were made to minimize the number of animals used and their suffering during experiments, according to the request of Biosafety and Animal Ethics. Two male rhesus macaques (M21-monkey 21; M22-monkey 22) weighing 5.8 and 6.9 kg were used. The animals were allowed only water 12 h before the experiments. Before the experiments, the study animal was intramuscularly injected with atropine (0.02–0.04 mg/kg) in their cage. Ten minutes later, telazol (5 mg/kg) was administered by intramuscular injection for temporary anesthesia. After the monkey was fully anesthetized, it was transported to the animal preparation room, and its head was shaved. The monkey was fixed by 2 ear bars in a stereotaxic frame on the MR scanning table and intubated for anesthesia during the experiment. The animal was covered by a blanket with circulating warm water to maintain its body temperature. Vital signs were monitored with an MRI-compatible patient monitor (Precess 3160, In-vivo, Philips) and manually recorded. The interval between experiments was approximately 2 weeks for each monkey. The experimental setup is shown in Figure 1.

Figure 1 Experimental setup. The animal was prone on an MR-compatible stereotaxic frame and fixed by 2 ear bars. The ultrasound transducer (300 kHz) was fixed on a positioning system with 5 degrees of freedom (1 and 2 for rotational motions and 3, 4, 5 for translational motions) and coupled to the animal with degassed water. A single-element radiofrequency coil was inserted between the transducer and the animal’s head to receive MR signals. MRI, magnetic resonance imaging.

Ultrasound system

A custom-built, single-element, spherical focused ultrasound transducer with a diameter of 50 mm and a geometric focal length of 55 mm was used for sonication. The central frequency of the transducer was 300 kHz. The transducer was implanted in an ultrasound coupler filled with degassed water and fixed on the positioning system with 5 degrees of freedom (2 rotational motions and 3 translational motions). The transducer’s acoustic pressure was calibrated by hydrophone (Precision Acoustics Ltd., Dorchester, UK) in water, as illustrated in Figure S1. The transducer was driven by a custom-built power amplifier with a fixed gain of 50 dB, as illustrated in Figure S2.

Sonication protocol

The timing diagrams of the schemes of the 2 kinds of RaSP sequences and an LP sequence were compared, as presented in Figure 2. The pulse repetition frequency (PRF) of the ultrasound was 1 Hz, the burst length was 10 ms for the LP (LP10), and 300 µs (RaSP 30) or 600 µs (RaSP 60) for the RaSP sequences. The 10 ms burst length in LP was further partitioned into 10 periods, and only 10 or 20 pulses were applied (equal to 30 µs or 60 µs pulse length) during each 1 ms period, making the total duty cycle 3% or 6% of LP sequences. The total duration of the ultrasound was 180 s, and the peak negative acoustic pressure was set to 0.56 MPa calibrated in water for both sequences. The relative mechanical index (MI) was 1.02 in water.

Figure 2 Ultrasound sequences. A 10 ms length pulse (LP10) was partitioned into 10 periods of 1 ms each. Each period contained only 10 (RaSP30) or 20 (RaSP60) pulses of sine waves with 300 kHz. The pulse repetition frequency of sonication was 1 Hz, the peak negative acoustic pressure of all sequences was 0.56 MPa calibrated in water, and the corresponding mechanical index (MI) was 1.02 in water. N, the number of ultrasound waves.

BBB opening procedure

The BBB opening procedure was guided and evaluated with a 3.0 T MRI scanner (uMR790, Shanghai United Imaging Healthcare, Shanghai, China). Before sonication, T1, T2, and T2*w images (imaging protocol is presented in Table 1) were obtained for treatment planning and used as a baseline. The prepared animal was sonicated with the pulsed ultrasound for 3 min after the MBs (SonoVueTM, Bracco International, Amsterdam, The Netherlands), with mean diameters approximately 2.5 μm and concentration 1×108 to 5×108 MBs/mL, were injected through the femoral vein. At the end of sonication, 1 mL (0.15–0.17 mL/kg per monkey) gadopentetate dimeglumine (Gd-DTPA) was injected, and a series of T1w fast-spin echo (FSE) images with spectral attenuated inversion recovery (SPAIR) were acquired continuously to demonstrate the contrast enhancement of BBB opening. MBs and Gd-DTPA injection were followed by 1 ml saline to flush the agent out of the retention needle. Finally, the T2w FSE and T2*w gradient echo (GRE) sequences were scanned to evaluate edema (23) and micro-bleeding (24) at the end of the procedure. T1w fluid-attenuated inversion recovery (T1-FLAIR) was also used in some cases to identify the distribution of contrast enhancement with cerebral spinal fluid suppression. The experiments were classified into 5 groups (Figure 3) according to the ultrasound protocols: G1, RaSP for 300 µs; G2, RaSP for 600 µs; G3, LP for 10 ms; G4, sequential RaSP for 300 µs and RaSP for 600 µs; G5, sequential 300 µs RaSP and 10 ms LP ultrasound. Each animal received all 5 experimental protocols. In G4 and G5 studies, the sonication and T1w FSE acquisition were repeated once.

Table 1

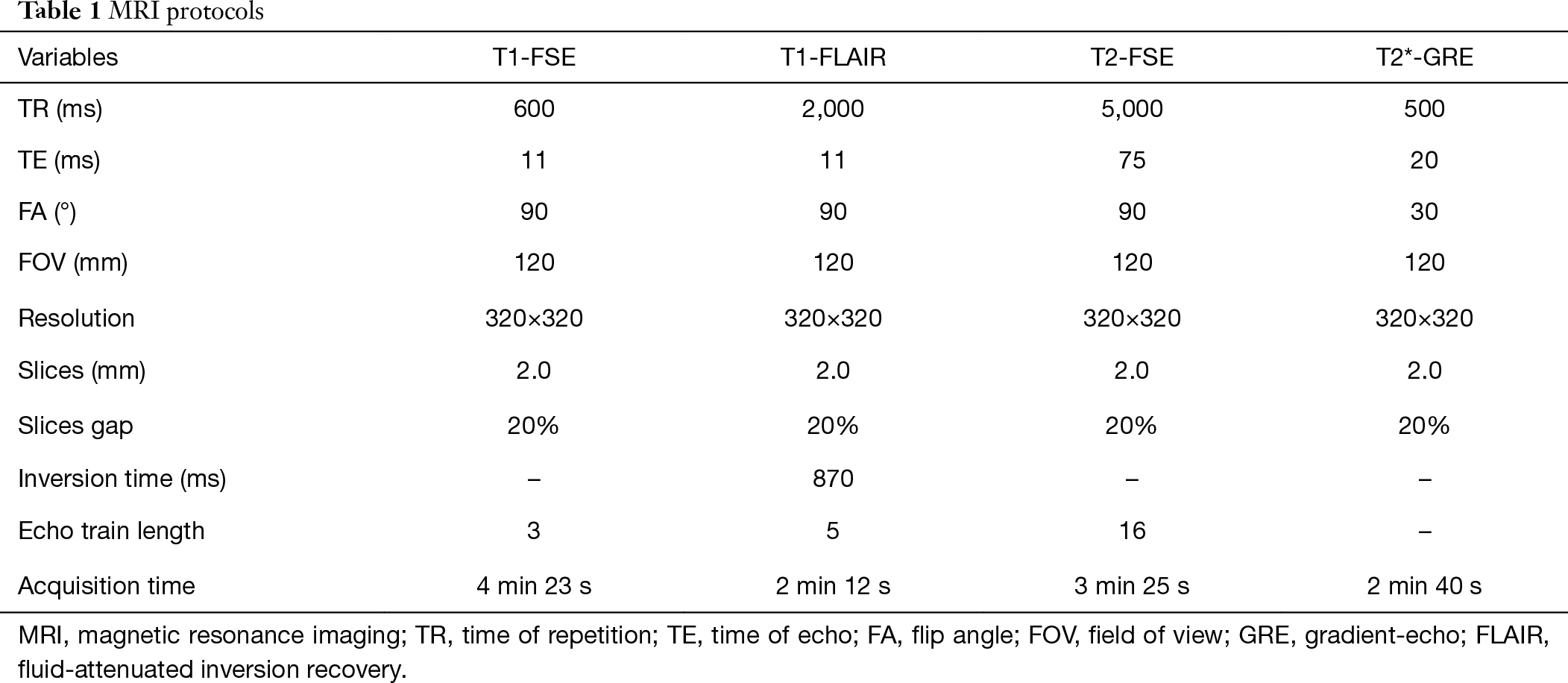

Table 1 MRI protocols
Full table
Figure 3 Procedures for the study groups. The ultrasonic protocols in G1, G2, and G3 were RaSP30, RaSP60, and LP10, respectively. In G4, RaSP30 was followed by RaSP60. In G5, RaSP30 was followed by LP10. MB, microbubbles; US, ultrasound; Gd, gadopentetate dimeglumine.

Data processing

A reference region of interest (ROI) was drawn in the coupling water area, and the averaged signal intensity over the reference ROI was used to normalize the whole image to avoid signal fluctuation:

S N ( t )= S( t ) N( t )

where S (t) is the T1w image acquired at time t, N (t) is the averaged signal intensity over the reference ROI, and S N(t) is the resultant normalized T1w image at time t.

Signal enhancement maps at each time point were defined by the relative signal change against the image acquired before Gd-DTPA was injected:

Δ S N ( t )= S N ( t ) S N ( 0 ) S N ( 0 )

Statistical analysis

Two ROIs were drawn on the T1w images. One was arranged around the ultrasound focal area (ROIF), and the other was positioned on the opposite hemisphere for comparison (ROIc). The temporal course of the relative signal enhancement was analyzed. The Student’s t-test was performed on the relative signal enhancement between the 2 ROIs at different time points in each trial. The statistical analysis was performed to determine whether the contrast enhancement appeared in the sonicated area to check that the BBB was opened in each trial.


Results

RaSP-induced BBB opening

The feasibility of BBB opening by RaSP was demonstrated by contrast enhancement around the targeted focal area after ultrasound sonication in all experiments. The relative signal enhancement maps overlapped on the T1w images. Figure 4A shows the relative signal enhancement maps before and after RaSP60 sonication. The dotted rectangle in the relative enhancement map after RaSP60 demonstrated observable signal change due to sonication. Figure 4B compares the relative signal enhancement maps under RaSP30, RaSP60, and LP10 protocols in both monkeys. The contrast agent enhanced the area around the ultrasound focus, whereas no relative signal enhancement was evident in the opposite area in all protocols. The enhancement intensity and volume were larger under LP10.

Figure 4 Relative signal enhancement maps overlapped with T1w images. (A) Relative signal enhancement maps for control (only Gd injection before RaSP60 sonication with MBs) and BBB opened (after RaSP60 sonication with MBs). Enhancement is indicated in a focal area (dotted rectangle). (B) Relative signal enhancement maps of M21 and M22 in all 3 protocols. The intersection of 3 red lines (representing the beam path) marks the geometric focus. The colorbar of the relative enhancement map is shown on the lower right-hand side for all images. BBB, blood brain barrier; M21, monkey numbered 21; M22, monkey numbered 22; RaSP30, rapid short pulse with 30 μs burst sonication; RaSP60, rapid short pulse with 60 μs burst sonication; LP10, 10 ms long pulse sonication.

Temporal course of the relative signal enhancement after BBB opening

The representative relative signal enhancement curves in ROIF and ROIC of M21 are presented in Figure 5. Signal intensities slightly increased to a steady-state in the ROIC, closely following Gd-DPTA injection, whereas they continuously increased in the ROIF up to 90 min after the Gd-DTPA injection in all protocols. For example, in the RaSP60 trial, as shown in Figure 5B, the relative signal enhancement in ROIC slightly increased to 5–8% during the whole observation time window, while the relative signal enhancement in ROIF continuously increased from 15% to 30% within 90 minutes. The student’s t-test was performed between pixels of the 2 ROIs at different time points after sonication with MBs. The relative signal enhancement was significantly different in ROIF and ROIC (P<0.01) at all time points after sonication in each monkey, indicating the successful opening of the BBB in these trials.

Figure 5 The relative signal enhancement curves after BBB opening with RaSP30, RaSP60, and LP10 in M21. The standard deviations of the relative signal enhancement inside the ROI are shown as the error bars at each time point. The differences between relative signal enhancement after sonication were all significant (*, represents P<0.01 in Student’s t-test) between pixels of ROIF and ROIC in the 3 protocols. RaSP30, Rapid short pulse with 30 μs burst sonication; RaSP60, Rapid short pulse with 60 μs burst sonication; LP10, 10 ms long pulse sonication; MB, microbubble; Gd, gadopentetate dimeglumine (Gd-DTPA); ROIF, region of interest at focus; ROIC, region of interest at the opposite hemisphere for comparison.

Signal enhancement comparison

To quantitatively compare the differences in BBB opening induced by the various protocols, we evaluated the relative signal enhancement in ROIF and ROIC for the 5 experimental groups. Three time points at which the 3 largest mean values occurred in ROIF were found for all curves. The average of the mean and standard deviation of these 3 time points are summarized in Table S1. The relative signal enhancement in ROIF after BBB opening was significantly higher than that in ROIC for all experimental groups (P<0.01). In all the study groups, the differences between relative signal enhancement in ROIF and ROIC were positively correlated with the burst length of pulses in each sonication protocol. The relative signal enhancement of the same protocol showed good consistency between different experimental groups in each animal, as illustrated in Table S1 and Figure 6. For example, in the 3 RaSP30 trials in G1/G4/G5 on M21, the signal enhancement was 12.7%±3.0%, 13.2%±3.3%, and 13.3%±3.2%, respectively. The relative signal enhancement in RaSP30 and RaSP60 reached more than 30% or 60% of that with LP10 sonication in our experiment, respectively. Furthermore, the energy deposition in RaSP30 and RaSP60 was only 3% and 6% of LP10, respectively. The relative signal enhancement in ROIF was 2–4 folds higher compared to ROIC in RaSP sonications.

Figure 6 Bar plots of the relative signal enhancement for each protocol in the 2 monkeys. The colored bars and the hatch-filled bars represent the relative signal enhancement of ROIF and ROIC, respectively. *, represents P<0.01. G1-G5 represent different experimental groups, controls represent the relative signal enhancement at the opposite hemisphere for each group. RaSP30, rapid short pulse with 30 μs burst sonication; RaSP60, rapid short pulse with 60 μs burst sonication; LP10, 10 ms long pulse sonication; M21, monkey numbered 21; M22, monkey numbered 22.

Edema and hemorrhage detection

T2 FSE and T2* GRE images were acquired with the same position, resolution, and slices as for the T1 FSE sequence to detect edema and micro-bleeding. There were no observable changes in the T2w/T2*w MRI images for RaSP30 and RaSP60. However, in the G5 experiment (RaSP30 followed by LP10 at the same location within 2 hours), hemorrhage in the sulcus caused by LP10 sonication was present in monkey M21, which was indicated by the hypointensity signal on T2*w imaging after LP10 (hypointensity signal was not present before LP10 sonication in Figure 7A and appeared after LP10 as per the arrow in Figure 7B). The hypointensity disappeared 2 weeks later (arrow in Figure 7C). No enhancement was evident in the contrast-enhanced T1w images acquired 2 weeks after G5 sonication (Figure 7D).

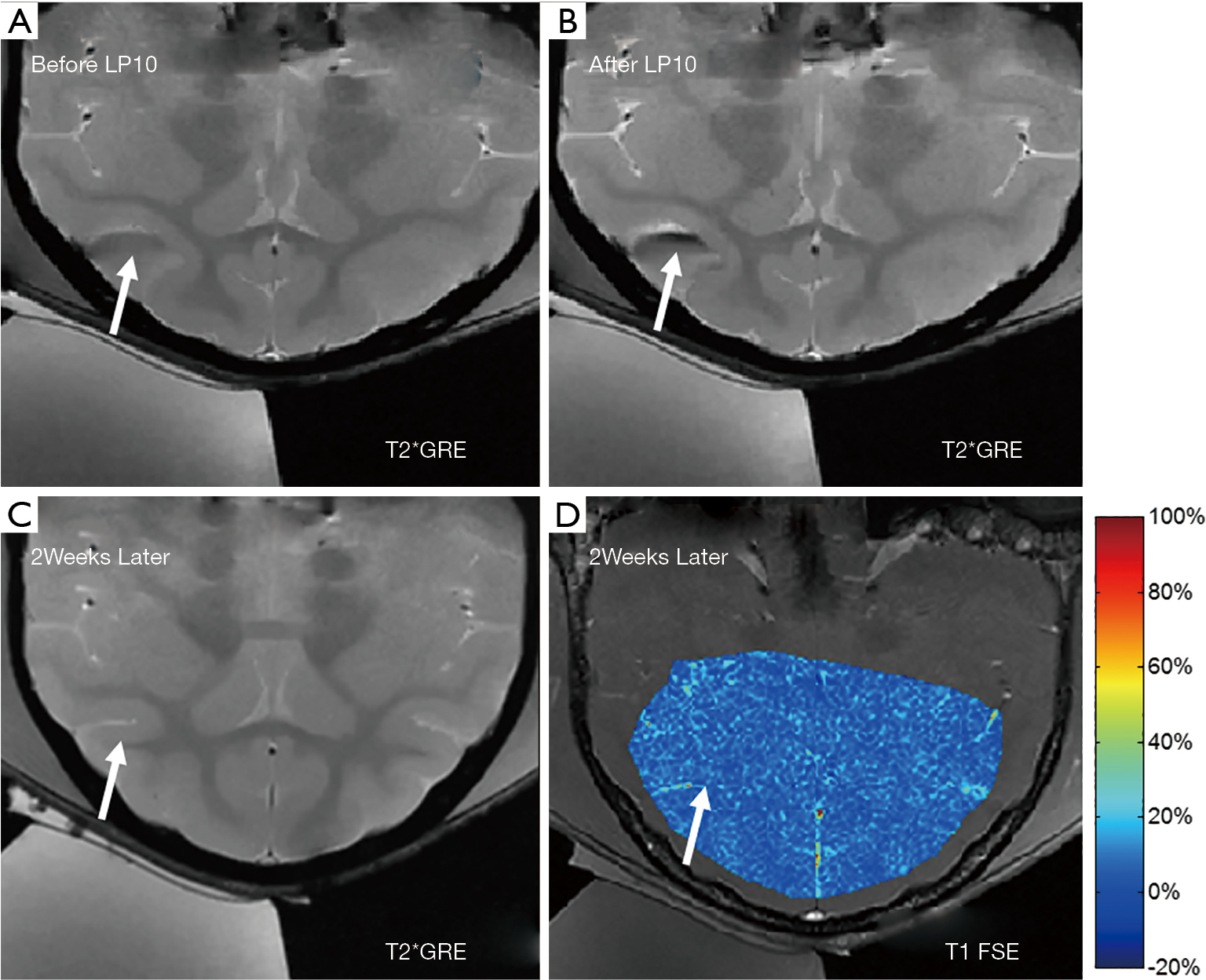

Figure 7 Hemorrhage detected in T2*w GRE images after LP10 sonication in the G5 protocol in M21. (A) T2*w GRE image acquired after RaSP30 and before LP10. (B) T2*w GRE image acquired after LP10. Hypointensity in the sulcus (white arrow) indicates the presence of hemorrhage. (C) T2*w GRE image acquired 2 weeks later, showing that the hypointensity disappeared. (D) Contrast-enhanced T1w image after Gd-DTPA injection (without ultrasound), with no local enhancement present, indicating that the BBB recovered to baseline. LP10, 10 ms long pulse sonication; FSE, fast-spin echo; GRE, gradient echo.

Discussion

Studies over the past decades have found that 10 to 100 ms LP ultrasound combined with MBs can open the BBB without irreversible brain tissue damage in models from mice to non-human primates in vivo (5,7,8,10-13). Also, BBB opening with negligible disruption has been achieved with microsecond-level RaSP ultrasound in mice (22). However, the safety of ultrasound for BBB opening remains a concern for clinical application. Here, we documented the feasibility and safety of BBB opening with RaSP ultrasound in monkeys.

Contrast-enhanced T1w MRI is a commonly used (15,25-28) acceptable method for identifying BBB opening in large animals, such as monkeys. In these referenced reports, 10% relative signal enhancement was used to confirm the local BBB opening. Our study documented the feasibility of opening the BBB in non-human primates with RaSP. The relative signal enhancement was approximately 13% in RaSP30 and exceeded 23% in RaSP60 in the sonicated area. The relative signal enhancement was positively correlated with the pulse length, which is consistent with previous studies (20). The concordance between the results obtained with the same ultrasound protocols across various experimental groups (G1 and G4/G5-RaSP30, G2 and G4-RaSP60, G3 and G5-LP10) indicated high consistency of the experiments in each monkey. However, there was a difference between the 2 monkeys for the same group of ultrasound variables, which may be due to differences in the skull geometry (27).

In monkeys, the BBB is restored within 2 to 4 days after being opened with LP (29). Shortened BBB recovery time is an attractive feature of RaSP compared with traditional LP. For example, in mice, permeability returned to control levels in less than 10 minutes with RaSP ultrasound (22). In our experiments in non-human primates, the duration of BBB opening may have been longer than desirable. In one experiment, the animal was injected again with Gd-DTPA (without ultrasound sonication) 90 minutes after a RaSP60 sonication. The relative signal enhancement continued to increase in the focal area, while it was unchanged in the contralateral control area, indicating that the BBB was still open (Figure S3). According to Samiotaki et al. (21,30), BBB opening’s reversal time is linearly correlated with the opening volume caused by a single foci sonication. O'Reilly et al. (31) claim that the key factors determining BBB recovery time are the acoustic pressure profile and MB parameters. We speculate that the shortening of BBB recovery time was not achieved due to the relatively higher acoustic pressure (0.56 MPa in water under 300 kHz) used in our study compared to Morse et al.’s work (0.35 MPa under 1 MHz) (22). The acoustic pressure profile of the focus was relatively broad in our study (focal area 6.9 mm × 6.9 mm × 30 mm according to Figure S1). Moreover, the MBs (100 μL, 5 μL/g SonoVue) was injected intravenously over 30 seconds in their study, while MBs (1 mL, 0.2 μL/g SonoVue) were injected intravenously in a bolus in our study, The different MB administration modes may also contribute to the differences in the experimental results. In future work, acoustic parameters (including transducer geometry, acoustic pressure, PRF, burst period/length, etc.) and MB parameters (bubble size, dosage, and administration) need further optimization to achieve shorter recovery time, especially in large animal models.

We were unable to more thoroughly study the exact recovery time of BBB opening because of institutional review board regulations on animal care (the minimal interval allowed for the MR scan on one monkey was 14 days). However, we conducted the Gd-DTPA enhancement scans (without ultrasound) 2 weeks after opening to ensure that the BBB had recovered from the sonication, and no relative signal enhancement was present (Figure 7D). In the future, we will aim to shorten the interval for MRI scanning in 1 or 2 monkeys to obtain a more precise measure of the recovery time.

The 300 kHz transducer was chosen after considering the skull penetration efficiency of the acoustic power in monkeys. One of the adverse effects of using low-frequency ultrasound is that the cavitation threshold is also lowered. Measuring passive acoustic emissions is a widely used method of monitoring MB-induced cavitation (12,13,32-34). Although we did not monitor passive cavitation in our experiments, the acoustic parameters (300 kHz, 0.56 MPa, and 1.02 MI in water) and MBs (0.20 mL/kg; SonoVue) were carefully selected following a study of BBB disruption in non-human primates with feedback control of MB cavitation (14). In this previous study, mild BBB opening was achieved under acoustic pressure 697 kPa (500 kHz; MI =0.99 calibrated in free water). Harmonic components in the relative spectrum were observed, while broadband and sub-harmonic components were not significant in the passive cavitation detector (PCD), indicating that the MBs underwent stable cavitation. T2w images with no hemorrhage evidence also confirmed that the BBB opened safely under this acoustic pressure in their study. Our MI (1.02 in free water) was very close to this previously reported MI for mild BBB opening (697 kPa, MI =0.99 calibrated in free water), and our MB dose (0.20 mL/kg; SonoVue) was slightly lower (0.30 mL/kg; SonoVue). We also confirmed that no hemorrhage occurred on the T2w images after RaSP. Combining all these results and comparisons, it is more likely that the MBs mainly presented stable cavitation in our RaSP experiments. However, considering the lower frequency used in our study, we believe that the acoustic pressure and MB parameters can be further optimized in future explorations when sufficient animal models are available.

The monkeys’ blood oxygen levels, respiration rates, and heart rates were stable in all experiments. With MRI detection, hemorrhage was occasionally present after LP10. Under the same acoustic pressure, the LP10 has a higher risk of adverse effects such as hemorrhage or edema. Interestingly, hemorrhage was only found in the G5 group (LP10 after RaSP30) but not in the G3 group (LP10 only), suggesting that repeated ultrasound sonication at the same location to induce BBB opening in a short time interval has a higher risk. Adverse effect accumulation may explain the hemorrhage. The exact reason for this finding is unknown and will be explored in future studies.

We acknowledge that our study has limitations. First, the number of trials and experimental animals were relatively limited. Only 10 trials on 2 monkeys were performed in this study. However, based on the observations from the 2 monkeys, these results are comparable and consistent between the trials with the same ultrasound protocol for each monkey. Second, the focal area of our transducer was relatively large for targeted BBB opening. Using a transducer with a higher frequency, electronic steering for skull correction using a phased array will be considered in future studies to avoid the focal point distortion. Third, only the ultrasound burst length varied, while other ultrasound and MB parameters were kept the same. Studies are needed with varying acoustic power, burst lengths, and MB parameters, including size and dose, to find the optimized parameters for shorter BBB recovery time. Fourth, the duration of BBB opening after RaSP and drug delivery efficiency in primates, need further quantitative studies.


Conclusions

This work demonstrated the feasibility and safety of RaSP ultrasound to open the BBB in a non-human primate model. The relative signal enhancement in RaSP30 and RaSP60 reached more than 30% or 60% of that with LP sonication in our experiments, respectively. Furthermore, the energy deposition in RaSP30 and RaSP60 was only 3% and 6% of LP, respectively. The results suggest that opening the BBB using RaSP is preferable to opening with traditional LPs. Measures to shorten the duration of BBB opening after RaSP ultrasound should be investigated in future experiments.
