Optical imaging of stimulation-evoked cortical activity using GCaMP6f and jRGECO1a

Kicheon Park1, Anuki C. Liyanage1, Alan P. Koretsky2, Yingtian Pan1, Congwu Du1

1Department of Biomedical Engineering, Stony Brook University, Stony Brook, NY, USA; 2Laboratory of Functional and Molecular Imaging, National Institute of Neurological Disorders and Stroke, National Institutes of Health, Bethesda, MD, USA

Correspondence to: Congwu Du, PhD. Professor, Department of Biomedical Engineering, State University of New York at Stony Brook, Life Science Bldg, Rm. 002, Stony Brook, NY 11794-5281, USA. Email: Congwu.Du@stonybrook.edu.

Background: Genetically encoded calcium indicators (GECIs), especially the GCaMP-based green fluorescence GECIs have been widely used for in vivo detection of neuronal activity in rodents by measuring intracellular neuronal Ca2+ changes. More recently, jRGECO1a, a red shifted GECI, has been reported to detect neuronal Ca2+ activation. This opens the possibility of using dual-color GECIs for simultaneous interrogation of different cell populations. However, there has been no report to compare the functional difference between these two GECIs for in vivo imaging. Here, a comparative study is reported on neuronal responses to sensory stimulation using GCaMP6f and jRGECO1a that were virally delivered into the neurons in the somatosensory cortex of two different groups of animals, respectively.

Methods: GCaMP6f and jRGECO1a GECI were virally delivered to sensory cortex. After 3–4 weeks, the animals were imaged to capture the spatiotemporal changes of neuronal Ca2+ and the hemodynamic responses to forepaw electrical stimulation (0.3 mA, 0.3 ms/pulse, 0.03 Hz). The stimulation-evoked neuronal Ca2+ transients expressed with GCaMP6f or jRGECO1a were recorded during the baseline period and after an acute cocaine administration (1 mg/kg, i.v.).

Results: Histology confirmed that the efficiency of jRGECO1a and GCaMP6f expression into the cortical neurons was similar, i.e., 34%±3% and 32.7%±1.6%, respectively. Our imaging in vivo showed that the hemodynamic responses to the stimulation were the same between jRGECO1a and GCaMP6f expressed groups. Although the stimulation-evoked fluorescence change (∆F/F) and the time-to-peak of the neuronal Ca2+ transients were not significantly different between these two indicators, the full-width-half-maximum (FWHM) duration of the ∆F/F rise in the jRGECO1a-expressed group (0.16±0.02 s) was ~50 ms or 46% longer than that of the GCaMP6f group (0.11±0.003 s), indicating a longer recovery time in jRGECO1a than in GCaMP6f transients (P<0.01). This is likely due to the longer off rate of jRGECO1a than that of GCaMP6f. After cocaine, the time-to-peak of Ca2+ transients was delayed and their FWHM duration was prolonged for both expression groups, indicating that these are cocaine’s effects on neuronal Ca2+ signaling and not artifacts due to the property differences of the GCEIs.

Conclusions: This study shows that both jRGECO1a and GCaMP6f have sufficient sensitivity for tracking single-stimulation-evoked Ca2+ transients to detect neuronal activities from the brain. Since these GECIs are emitted at the different wavelengths, it will be possible to use them together to characterize the activity of different cell types (e.g., neurons and astrocytes) to study brain activation and brain functional changes in normal or diseased brains.

Keywords: Cocaine; GCaMP fluorescence imaging; jRGECO1a fluorescence imaging; Ca2+ transient


Submitted Jul 29, 2020. Accepted for publication Sep 24, 2020.

doi: 10.21037/qims-20-921


Introduction

Fluorescence Ca2+ indicators have played an important role in understanding cellular signaling, especially in the brain. These indicators have made it possible to optically detect cellular Ca2+ concentration changes and to track cellular activity across multiple spatial scales from a single synapse to a neuronal population (1-3). In general, there are two types of Ca2+ indicators: chemical Ca2+ indicators and protein based genetically encoded Ca2+ indicators (GECIs) (4). For brain functional studies, the GECIs are now preferred because specific delivery to targeted cell types can be controlled (1,3). For example, GCaMP6, a green fluorescence GECI, has been widely used for measuring neuronal activity (1,5-7) because of its high sensitivity to detect neuronal Ca2+ transients, and under some conditions even to detect a single Ca2+ transient arising from a single action potential (8). However, the excitation and emission of the GCaMP GECIs are all within blue and green wavelength range, where both scattering and absorption of biological tissue are relatively high (8,9). The property differences among the GECIs such as different kinetics (e.g., different Ca2+ on-and-off rates) always raise the question of whether the Ca2+ changes are to some extent influenced by their properties; therefore, it is necessary to compare the results using different GECIs. Furthermore, many GFP-based transgenic rodent models (8) share the same green fluorescence emission with the green GECIs (e.g., GCaMP serials), which makes difficult to use such green GECIs for Ca2+ imaging for these animals. There are many occasions where it would be important to concurrently track the activities of different cell types from the same animal, for example to image the Ca2+ activities from neurons and astrocytes in response to a brain stimulation.

Different color GECIs, such as jRGECO1a, red GECI, have been developed to increase the utility of GECIs (8). While the chemical property and the fluorescent characteristics of jRGECO1a have been described (8), there is no report on side-by-side comparison between red and green GECIs for Ca2+ transients in vivo. The goal of this study was to compare the performance of a green GECI (GCaMP6f) with a red GECI (jRGECO1a) for brain functional imaging. Specifically, jRGECO1a and GCaMP6f were virally delivered into the somatosensory cortex to express the neurons in two different groups of rats, respectively. After 3–4 weeks, optical imaging was conducted over the cortex of each animal during which the synchronized neuronal Ca2+ transients and the hemodynamic responses to a sensory stimulation (i.e., electrical stimulation of the forepaw) were acquired. The results between the jRGECO1a and GCaMP6f animal groups were analyzed to characterize their differences.

Cocaine produces neural deficits (10) when abused repetitively in humans. For example, Lee et al. 2003 (11) showed that the maximal response of brain to visual stimulation frequency shifted from 4 to 8 Hz between controls and cocaine abusers, suggesting that due to cocaine-induced deficits more intense ‘stimuli’ were needed for a cocaine abuser to ‘trigger’ the brain to function ‘normal’. It has been reported recently that cocaine abusers have widespread disruption in brain fMRI activation patterns in response to a working memory task (12). In addition, animals with extended access to cocaine show cortical deficits along with the compulsivity (13). Here, we applied these two GECIs to study the cocaine’s effects on neuronal activities from the cortex in vivo. The Ca2+ fluorescence transient (neuronal response) to the forepaw stimulation mimics a sensory stimulus in humans. Studying the high temporal resolution of these Ca2+ signals will help us to understand the mechanisms that underlie the abnormal brain function due to the neuronal deficits induced by cocaine.


Methods

Animals

Male Sprague Dawley (SD) rats (n=7) were used in the study. The genetically-encoded Ca2+ indicators, AAV.Syn.GCaMP6f.WPRE.SV40 (n=4) and AAV.Syn.NES-jRGECO1a.WPRE.SV40 (n=3) were virally delivered into the somatosensory cortex (A/P: +0.5, M/L: +3.0, Depth: 1.2) of rats in Dr Koretsky’s laboratory at NIH. Three weeks after viral injection, the rats were shipped to Stony Brook University for in vivo imaging studies. All experiment procedures were approved by the Institutional Animal Care and Use Committees (IACUC) of NIH and Stony Brook University and were performed in accordance with the National Institutes of Health Guide for the Care and Use of Laboratory Animals.

Experimental preparation and surgical procedure

After 3–4 weeks of viral incubation, animals were used for optical imaging studies. Before imaging, the animal was intubated and mechanically ventilated (CWE, SAR-830/P) and anesthesia was maintained with 2–3% isoflurane in a mix of 70% oxygen: 30% air. The physiology of the animal, including body temperature, respiration, blood pressure, and partial pressure of carbon dioxide (pCO2) were continuously monitored to ensure normoxia. The left femoral artery was cannulated for blood pressure monitoring (Small Animal instrument Inc. SA monitoring System, Model 1025) and periodical blood gas sampling (Radiometer America, ABL80 FLEX), whereas the left femoral vein was catheterized for drug administration (e.g., α-chloralose anesthetic). The rat was then positioned in a stereotaxic frame (Kopf 900, Tujunga, CA, USA) and a cranial window (~4×5 mm2, Figure 1A) was created on the right somatosensory cortex (A/P: +0.5 mm, M/L: +3.0 mm). The dura was carefully removed, and a thin glass coverslip was cemented after 1.25% agarose gel was applied on cortical surface. After the surgery, the animal was transferred to the imaging platform and two electrodes were inserted under the skin of the left forepaw in the space between digits 2 to 3 and between digits 4 to 5 (Figure 1A). Anesthesia was switched from isoflurane to α-chloralose for functional brain imaging using an initial bolus of 50 mg/kg, followed by a continuous infusion of 25 mg/kg/hr through the femoral vein. The paradigms of light source and imaging acquisition are illustrated in Figure 1B, the illumination and detection were synchronized by using home-developed LabVIEW program. For sensory stimulation, electrical stimuli (A-M System 2100, Sequim, WA, USA) were delivered through a pair of electrodes implanted under the skin of the forepaws with a 0.03 Hz/3 mA single-stimulus (Figure 1C). Stimuli were synchronized with image acquisition using a custom LabVIEW program.

Figure 1 A Sketch to illustrate the optical imaging setup and the experimental protocol. (A) Multimodality imaging platform (MIP) to image the neuronal Ca2+ fluorescence and hemodynamic changes in response to forepaw electrical stimulation. (B) Fluorescence imaging approach for GCaMP6f or jRGECO1a detection (i) and reflection imaging to detect Hemodynamic changes (ii). (C) Paradigm for on the forepaw stimulation during the experiment.

In vivo time-lapse optical imaging

A custom multimodality optical imaging platform (Figure 1A) was used for imaging neuronal Ca2+ fluorescence (λEx=488 nm for GCaMP6f, λEx=550 nm for jRGECO1a), and the blood volume/total hemoglobin (HbT) (14) from rat cortex over a large field of view (~4×5 mm2). A multi-channel light engine (Spectra Light Engine, Lumencor), synchronized with a sCMOS camera (Zyla4.2, Andor, pixel size =6.5 µm), was coupled into a fiber bundle to sequentially deliver multispectral light to illuminate rat brain through the cranial window. For imaging of forepaw stimulation, fluorescent Ca2+ transients were captured at 80 frames per second [fps, Figure 1B (i)] and multichannel images of λ1=570 nm and λ2=620 nm were captured at 12.5 fps [Figure 1B (ii)] to detect the hemodynamic changes evoked by the sensory stimulation (15,16). The emission filter set EM1 (≥510 nm) was used for GCaMP6f Ca2+ fluorescence imaging and hemodynamic detection via time-sharing LED illuminations, whereas the emission filter EM2 (≥570 nm) was used for jRGECO1a Ca2+ fluorescence imaging.

The regions of interests (ROIs) for Ca2+ fluorescence and hemodynamic responses were selected within the activated brain regions in the somatosensory cortex. The hemodynamic changes, ΔHbT in response to the stimulation were determined based on the multichannel images reflected at λ1=570 nm and λ2=620 nm. The detailed quantification, which was described previously (15,16), can be given as

[ ΔH bO 2 ΔHbR ]= [ ε H bO 2 λ 1 ε HbR λ 1 ε H bO 2 λ 2 ε HbR λ 2 ] 1 ×[ ln( R λ 1 (0) R λ 1 (t) )/ L λ 1 (t) ln( R λ 2 (0) R λ 2 (t) )/ L λ 2 (t) ] [1]

where ε H bO 2 λ 1 ,  ε HbR λ 2 ,  ε H bO 2 λ 2 ,  ε HbR λ 1 are the molar extinction coefficients for oxygenated-(HbO2) and deoxygenated-(HbR) hemoglobin; Rλ1, Rλ2 are diffuse reflectances at the wavelengths of 570 and 620 nm, respectively; Lλ1, Lλ2 are path lengths of light propagation (17). Then, ΔHbT can be determined as the sum of ΔHbO2 and ΔHbR,

ΔHbT=ΔHb O 2 +ΔHbR [2]

The relative changes in Ca2+ fluorescence change (ΔF/F) were obtained after correcting the local HbT changes due to the light absorbance changes within the tissue via ratiometric analysis (16,18,19).

Cocaine administration

To assess the cocaine’s effects on neuronal Ca2+ signaling, the animal received an acute cocaine challenge (1 mg/kg, i.v.) after the baseline stimulation experiments. At ~8 min post cocaine administration, forepaw stimulations were repeated and the stimulation evoked Ca2+ transients in the cortex were recorded and compared with those obtained during the baseline period.

Ex vivo imaging to evaluate the efficiency of viral expression

After in vivo imaging, the animals were perfused with 0.1 M PBS (pH 7.4) followed by fixation in 4% paraformaldehyde. Through immunostaining, neurons were identified using a mouse anti-NeuN primary antibody. The total neurons were visualized with a goat anti-mouse Alexa Fluor 488 or Alexa fluor 594 secondary evaluation of GCaMP6f and jRGECO1a expressions, respectively. The ratio of jRGECO1a- and GCaMP6f- expressing neurons over the total neurons (e.g., NeuN positive cells) within the cortex were assessed by confocal fluorescence microscopy.

Quantification and statistics

All data are presented as means ± SEM. To compare the fluorescence Ca2+ transients between jRGECO1a- and GCaMP6f-expressing neurons, the following two parameters of the Ca2+ signals were assessed: the full-width-half-maximum (FWHM) duration and the time to peak (from stimulation onset to time point of the maximum) of the Ca2+ transient responses. For quantifying hemodynamic response (∆HbT), the parameters of latency (delay of response form stimulation onset) and the FWHM duration of the ∆HbT changes evoked by stimulation were computed. Comparison of two different groups (e.g., GCaMP6f- and jRGECO1a-expressing animal groups) was analyzed using Student’s t-test. In all tests, P<0.05 was considered statistically significant.


Results

Expression of GCaMP6f and jRGECO1a into Neurons

To compare the fluorescence Ca2+ transients of neurons expressed with GCaMP6f or jRGECO1a, a viral injection approach was used to deliver them into the somatosensory cortex of two groups of animals as shown in Figure 2A. A 0.4 µL of AAV.Syn.GCaMP6f.WPRE.SV40 or AAV.Syn.NES-jRGECO1a.WPRE.SV40 was injected into forepaw somatosensory cortex of group 1 or group 2 of animals. Figure 2B shows in vivo fluorescence images obtained from the cortices of GCaMP6f- and jRGECO1a-expressed animals, respectively. Figure 2C shows fluorescence images of the brain sections from these two animal groups confirming the viral expressions in the somatosensory cortex. Figure 2D shows the distributions GCaMP6f- or jRGECO1a-expressing neurons as a function of cortical depth of the brains obtained from the GCaMP6f and jRGECO1a animals, which indicates the neuronal uptakes of Ca2+ indicators were mostly in the layers IV-V. Figure 2E compares the quantification of neuronal uptakes of GCaMP6f (32.7%±1.6%, n=4) and jRGECO1a (34%±3%, n=3). This result shows no significant difference in the expression efficiency into the neurons in the somatosensory cortex between GCaMP6f and jRGECO1a animals (P=0.65).

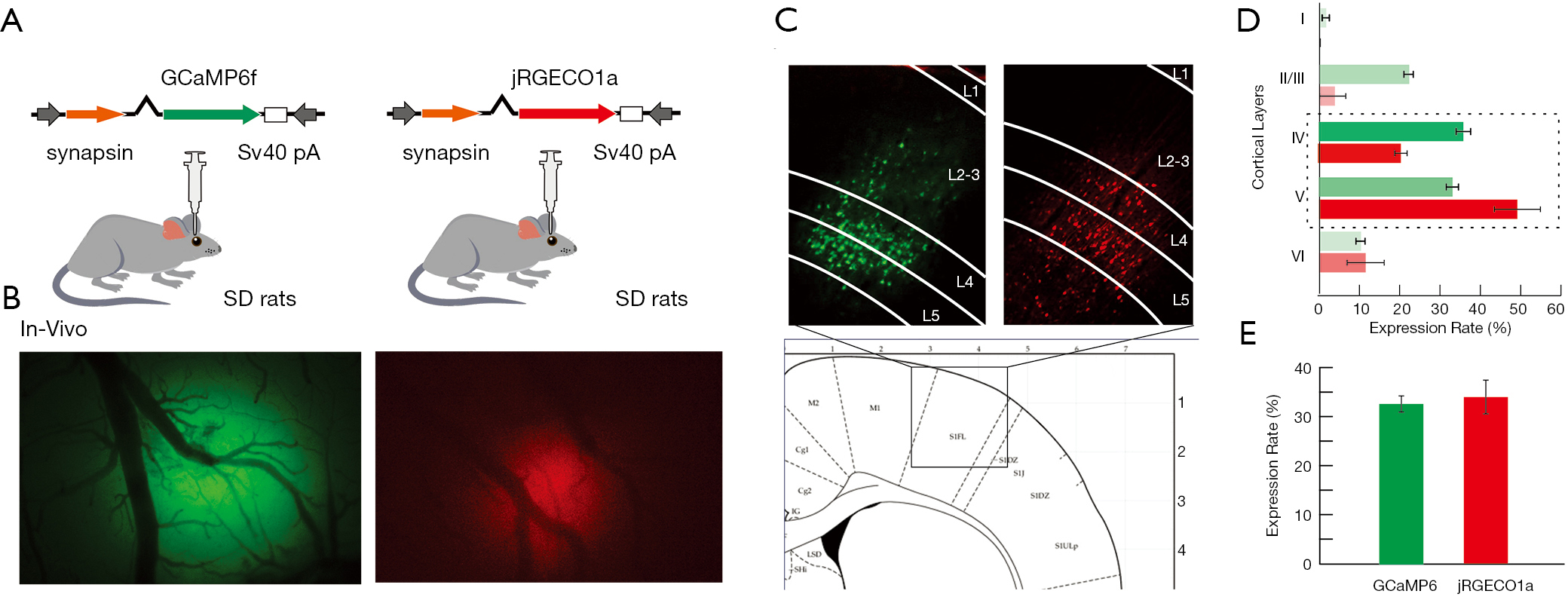

Figure 2 GCaMP6f-, jRGECO1a- expression in neurons within the somatosensory cortex. (A) Viral injection procedure to express jRGECO1a or GCaMP6f in neurons within somatosensory cortex; (B) in vivo image of neuronal Ca2+ fluorescence from rat cortex with GCaMP6f and jRGECO1a, respectively; (C) ex vivo confocal fluorescence images, showing the neurons expressing GCaMP6f or jRGECO1a in the cortex; (D) distribution of jRGECO1a- or GCaMP6f-expressing neurons in different cortical layers as the ratio between fluorescence expressed neuron counts versus the total neuron counts in each cortical layer; (E) comparison of percentage of jRGECO1a- or GCaMP6f-expressing rates in the cortex, showing no significant difference in their expression efficiency.

Spatiotemporal Ca2+ transients and hemodynamic responses to forepaw stimulation

Figure 3 represents stimulation-evoked spatiotemporal Ca2+ transients of GCaMP6f-expressing neurons and the hemodynamic (i.e., HbT) changes in the somatosensory cortex evoked by forepaw electrical stimulation pulse train (3 mA/0.03 Hz/0.3 ms). As illustrated in Figure 3A,B, the sensory stimulation was repeated nine times during the imaging period, and the stimulation-evoked Ca2+ transients and ∆HbT responses were synchronized with the stimulation pulses, thus indicating that our imaging setup has sufficient sensitivity to detect single stimulation-evoked neuronal and hemodynamic activations from the brain in vivo. Figure 3C shows the time-lapse images of a Ca2+ fluorescence transient evoked by the stimulation at t=0s. Figure 3D plots the Ca2+ transients to single stimuli (dashed green traces) synchronized to the stimuli onsets at t=0 s (vertical line) and their average trace (bold green trace), which shows that the ∆F/F increased after the stimulation and the time to peak was at 35±2.1 ms. The peak fluorescence increase was ∆F/F=12.34%±1.1% and the FWHM duration of the Ca2+ transient was 101±6.8 ms (gray shadow area) for GCaMP6f-expressing neurons. The hemodynamic response to the stimulation (i.e., ∆HbT) is illustrated in Figure 3E, in which the latency to stimulation was 1.61±0.11 s, the time to peak was 5.58±0.17 s, and the FWHM duration was 4.44±0.25 s. These results were consistent with the facts that the hemodynamic response is much slower than the Ca2+ response due to the complexities of neurovascular coupling and that the surface venous vascular compartment dominates the HbT measurement (19-24).

Figure 3 Ca2+ transients of GCaMP6f-expressing neurons and the hemodynamic responses to sensory electrical stimulation. (A) Fluorescence Ca2+ transients (∆F/F) evoked by a forepaw electrical stimulation train (3 mA/0.3 ms/0.03 Hz); (B) the corresponding hemodynamic changes (∆HbT); (C) time-lapse images of Ca2+ fluorescence changes evoked by a sensory stimulation; (D) temporal profile of transient Ca2+ response to single forepaw stimuli in which the dashed traces were individual transients (n=1, m=7) synchronized with the stimuli at t=0 s and the solid trace was their average; (E) temporal profile of the ∆HbT response (dashed traces, n=4, m=16) and their average (solid trace), in which the latency, time to peak and FWHM duration of ∆HbT are illustrated. Black-lines in A and B illustrate stimulation pulses.

Figure 4 represents stimulation-evoked spatiotemporal Ca2+ transients of jREGCO1a-expressing neurons and the hemodynamic responses to sensory stimulation pulse train. Figure 4A,B shows the stimulation-evoked Ca2+ transients and ∆HbT responses synchronized with the stimulation pulses. Figure 4C shows the time-lapse images of a Ca2+ fluorescence transient evoked by the stimulation at t=0 s. Figure 4D plots the Ca2+ transients to single stimuli (dashed red traces) superimposed on the stimuli onsets at t=0 s (vertical line) and their average trace (bold red trace), which shows that the ∆F/F increased after the stimulation and the time to peak was at 42±2.2 ms. The peak fluorescence change was ∆F/F=12.25%±0.38% and the FWHM duration of the Ca2+ transient was 148±4.4 ms (gray shadow area) for the jREGCO1a-expressing neurons. Figure 4E shows the ∆HbT responses evoked by the single stimuli, in which the latency to stimulation was 1.88±0.14s, the time to peak was 5.22±0.17 s, and the FWHM duration was 4.44±0.25 s. A comparison with the results in Figure 3 indicates that both red GCaMP6f and red jRGECO1a GECIs enables detection and quantification of neuronal activities evoked by a single sensory stimulation.

Figure 4 Ca2+ transients of jRGECO1a-expressing neurons and the hemodynamic responses to sensory electrical stimulation. (A) Fluorescence Ca2+ transients (∆F/F) evoked by a forepaw electrical stimulation train (3 mA/0.3 ms/0.03 Hz); (B) the corresponding hemodynamic changes (∆HbT); (C) time-lapse images of Ca2+ fluorescence changes evoked by a sensory stimulation; (D) temporal profile of transient Ca2+ response to single forepaw stimuli in which the dashed traces were individual transients (n=1, m=8) synchronized with the stimuli at t=0 s and the solid trace was their average; (E) temporal profile of the ∆HbT response (dashed traces, n=3, m=14) and their average (solid trace), in which the latency, time to peak and FWHM duration of ∆HbT are illustrated. Black-lines in A and B illustrate stimulation pulses.

Figure 5 summaries the comparison of the sensory stimulation evoked Ca2+ transients (∆F/F) and the hemodynamic responses (∆HbT) between the GCaMP6f-expressed rats (n=4) and the jRGECO1a-expressed rats (n=3). The superposed ∆HbT changes and Ca2+ fluorescence transients (∆F/F) in response to the stimuli were illustrated in Figure 5A and E, respectively. As expected, no significant differences were found in the ∆HbT responses between the two group as shown in Figure 5B,C,D. The latency between GCaMP6f and jRGECO1a animals was 1.62±0.12 vs. 1.88±0.14 s (P=0.16), the FWHM duration was 4.81±0.17 vs. 4.44±0.25 s (P=0.29), and the time to peak was 5.58±0.2 vs. 5.22±0.2 s (P=0.23). For neuronal Ca2+ transients, however, the FWHM duration (Figure 5F) in the jRGECO1a animals was 0.16±0.02 s, which was significantly longer than that of 0.11±0.003 s in the GCaMP6f animals (P<0.01). The time to peak in jRGECO1a and GCaMP6f animals (Figure 5G) was 0.05±0.007 vs. 0.049±0.003 s (P=0.6), the peak Ca2+ transient amplitude was 13.8%±2.4% vs. 19.8%±8.8% (P=0.48), both of which were not significantly different.

Figure 5 Comparison of single sensory stimulation evoked Ca2+ transients in GCaMP6f-expressed rats (n=4) and jRGECO1a-expressed rats (n=3) and the hemodynamic responses. (A) Superposed ∆HbT responses to the stimuli between GCaMP6f- and jRGECO1a-expressed animals; (B,C,D) latency, full-width-half-maximum duration, and time to peak of ∆HbT in GCaMP6f- (blue) and jREGCO1a- (white) rats; (E) superposed Ca2+ fluorescence transients (∆F/F) in response to the stimuli between GCaMP6f- and jRGECO1a-expressed animals; (F,G,H) FWHM duration, time to peak, and peak ∆F/F of fluorescence Ca2+ transients in GCaMP6f- (green) and jREGCO1a- (red) rats.

Cocaine induced neuronal Ca2+ dynamic responses in GCaMP6f vs. jREGCO1a animals

Figure 6 summarizes the effects of acute cocaine administration (1 mg/kg, i.v.) on stimulation-evoked neuronal Ca2+ transients in GCaMP6f- vs. jRGECO1a-expressing rats, respectively. Specifically, Figure 6A,B show the temporal profiles of sensory stimulation evoked Ca2+ transients at baseline (solid traces) and after cocaine (dashed traces), which were delayed and prolonged by cocaine in both groups. Statistical analyses on the cocaine’s effects are summarized in Figure 6C,D. The results indicate that the FWHM duration and the time-to-peak of Ca2+ transients were significantly increased from 0.11±0.003 to 0.13±0.003 s (P=0.01, n=4) and from 0.05±0.007 to 0.09±0.008 s (P=0.04, n=4) for the GCaMP6f rats. Similarly, the FWHM duration and the time-to-peak of Ca2+ transients were significantly increased from 0.159±0.01 to 0.26±0.03 s (P=0.03, n=3) and from 0.05±0.007 to 0.10±0.016 s (P=0.04, n=3) for the jREGCO1a rats.

Figure 6 Cocaine’s effect on stimulation-evoked Ca2+ transient in GCaMP6f and jRGECO1a rats. (A,B) Stimulation-evoked Ca2+ transients in GCaMP6f (green) and jREGCO1a (red) expressing neurons before (solid traces) and after cocaine administration (dashed traces); (C,D) FWHM duration and time to peak of neuronal Ca2+ transients before (green/red) and after (white) cocaine. Cocaine significantly increased FWHM duration from 0.11±0.003 to 0.13±0.003 s (P=0.01) and time to peak from 0.049±0.003 to 0.09±0.008 s (P=0.04) in GCaMP6f rats, and in jREGCO1a rats from 0.159±0.01 to 0.26±0.03 s for HWHM duration (P=0.03) and from 0.05±0.007 to 0.10±0.016 s for time to peak (P=0.04).

Discussion and conclusions

In this study, we used optical imaging to assess neuronal Ca2+ transients from the somatosensory cortex of rats in response to forepaw electrical stimulations. From the experiments, we were able to systematically analyze the differences of stimulation evoked neuronal Ca2+ fluorescence signaling expressed with two different GECIs, i.e., GCaMP6f and jRGECO1a. In addition, we compared stimulation-evoked neuronal Ca2+ transients before and after an acute cocaine challenge. In order to examine the neuron counts expressing GCaMP6f or jRGECO1a, ex-vivo confocal fluorescence microscopy was conducted on brain slides from the same animals after the in vivo imaging studies. Our results showed no significant difference in the expressing rates uptaken by the neurons between these two groups of animals (Figure 2E). To test whether the invasive procedure of a viral injection would influence on the brain responses to sensory stimulation, we recorded the hemodynamic changes (i.e., changes in total hemoglobin concentration, ∆HbT) in the somatosensory cortex to response to sensory stimulations (3 mA/0.03 Hz/0.3 ms). Figures 3E and 4E showed that ∆HbT responded to each stimulus, suggesting that the effects of viral injection on the brain to respond to sensory stimulation were negligible. The results to readily detect ∆HbT response to each single stimulation also illustrate the high sensitivity of our optical system to capture the hemodynamic changes evoked by weak stimulations. The comparison of stimulation-induced ∆HbT changes between jRGECO1a-expressed rats (n=3) and GCaMP6f-expressed rats (n=4) was summarized in Figure 5, showing no significant differences between the two groups. This indicates the equivalency of the animal model and the physiological responses between the two animal groups. However, for detection of Ca2+ signaling, the jRGECO1a-expressed neuronal Ca2+ fluorescence exhibited a longer transient time as measured by the FWHM duration than that of the GCaMP6f-expressed neuronal Ca2+ (Figure 5F) although no significant differences were found in the time to peak (Figure 5G) and the peak transient amplitude (Figure 5H) between them. Indeed, it has been reported that jRGECO1a has a longer half decay time than GCaMP6f (8), which is in agreement with our findings here.

Thanks to the development of high sensitivity and fast GECIs for brain function studies, our optical imaging enables capturing Ca2+ transient from neurons in response to single stimulus in both GCaMP6f and jRGECO1a groups (Figures 3A,4A). To ensure the Ca2+ fluorescence signals approximately from the same cortical depth within the brain, we used the same viral injection protocol to control the viral delivering into the neurons in a similar location. Specifically in this study, the viral vehicle was inserted to 1.2mm beyond the skull of the cortex (25), which made approximately reached to Layer 4-Layer 5 (LIV-LV) within the cortex (Figure 2C,D).

The comparisons before and after an acute cocaine administration (Figure 6) show that cocaine delayed and prolonged neuronal Ca2+ transient responses evoked by sensory stimulations in both GCaMP6f and jRGECO1a rats. Specifically, the FWHM duration and the time-to-peak in both groups were increased by cocaine (Figure 6C,D). Prior microelectrode recording reported that cocaine suppressed the short-latency excitation of cortical neurons in the first 10–25 ms after the electrical stimulation of the whisker pad followed by a postexcitatory inhibition within 25–120 ms after the stimulation (26). However, the long-latency excitation of the cortical neurons was enhanced in 120–300 ms after stimulation in the somatosensory cortex by cocaine. The cocaine-induced redistribution of the latency of neuronal activation might underlie the shifting of ∆F/F signaling (40–50 ms delay of time to peak after cocaine) and the increase (20–100 ms) of FWHM duration observed in GCaMP6f and jRGECO1a animals. In addition, it has been also reported that acute cocaine depressed cortical activity, including a prolonged membrane depolarization (27). Indeed, we have observed the decrease of cortical spontaneous firing rates resulting from cocaine in anesthetized animals (28-30). However, to the best of our knowledge, this is the first report of the measurement of cocaine’s effects on Ca2+ transients to single stimulation from a synchronized neuronal ensemble.

Red-shifted GECIs such as jRGECO1a red fluorescence probe could be used with green probes such as GCaMP6f to image the activity and interactions of different cell types such as neurons and astrocytes simultaneously. To do so, these two GECIs need to be virally delivered to a target region of the brain (e.g., the prefrontal cortex or sensory cortex, etc.). For example, if the astrocyte is to be labeled by GCaMP6f, and then the neuron should be labeled with jRGECO1a. The viruses of AAV.Syn.NES-jRGECO1a.WPRE.SV40 and AAV.CAG.FLEX.GCaMP6f.WPRE.SV40 can be delivered into the brain of a GFAP-cre dependent mouse at the same time. After few weeks for expression, the animal can be imaged. A custom-designed emission filters will be needed to synchronize with the excitation of GCaMP and jRGECO1a, respectively, and the images of the green Ca2+ fluorescence from astrocytes and red Ca2+ signal from neurons in the same field of view of the cortex can be detected.

It has been noted that the hemodynamic changes within the brain might influence on Ca2+ fluorescence measurements (18,31) due to the absorbance changes in the biological tissue. To eliminate this artifact, various strategies have been developed, including to conduct the correction in frequency domain (32,33) and in time domain (16,19). However, as we reported recently (19), the single-pulse stimuli sparsely delivered every 30s in between the resting periods, the light absorption change induced by hemodynamic fluctuation was so small that its effect on the Ca2+ signal was negligible (e.g., <1% before and after the correction).

In summary, our study demonstrates the capability of optical imaging detection of Ca2+ transients by using either jRGECOa1 or GCaMP6f GECI in response to brain stimulation. Our results indicate that both these two GECIs have sufficient sensitivity for tracking single Ca2+ transients to measure the cellular activities from the brain in vivo. Since these GECIs are emitted at the different wavelengths, green for GCaMP6f and red for jRGECO1a, they can be used simultaneously to characterize the activities of different cell types (e.g., neurons and astrocytes or subtype neurons) to study the brain activation and brain functional changes induced by drugs or diseases.


Acknowledgments

We thank Kevin Clare and Gloria Kim for helping on ex vivo imaging, and Kathryn Sharer for helping with viral injection. The authors would also like to thank the NIDA drug supply program for providing the cocaine used in this study.

Funding: This research was supported in part by National Institutes of Health grants 2R01 DA029718 (CD & YP), RF1DA048808 (YP & CD), R21DA042597 (CD & YP), and by the NIH NINDS Intramural Program (APK).


Footnote

Provenance and Peer Review: With the arrangement by the Guest Editors and the editorial office, this article has been reviewed by external peers.

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at http://dx.doi.org/10.21037/qims-20-921). The special issue “Advanced Optical Imaging in Biomedicine” was commissioned by the editorial office without any funding or sponsorship. The authors have no other conflicts of interest to declare.

Ethical Statement: All experiment procedures were approved by the Institutional Animal Care and Use Committees (IACUC) of NIH and Stony Brook University and were performed in accordance with the National Institutes of Health Guide for the Care and Use of Laboratory Animals.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
