Optimization of hepatobiliary phase imaging in gadoxetic acid-enhanced magnetic resonance imaging: a narrative review
Review Article

Optimization of hepatobiliary phase imaging in gadoxetic acid-enhanced magnetic resonance imaging: a narrative review

Chao Wang1#^, Xiao-Dong Yuan2#^, Ning Wu2^, Wei-Rong Sun2, Yuan Tian2

1Department of Magnetic Resonance Imaging, Cangzhou Central Hospital, Cangzhou, China; 2Department of Radiology, the 8th Medical Center of PLA General Hospital, Beijing, China

Contributions: (I) Conception and design: C Wang, XD Yuan; (II) Administrative support: XD Yuan;(III) Provision of study materials or patients: C Wang, N Wu, WR Sun; (IV) Collection and assembly of data: C Wang, XD Yuan, Y Tian; (V) Data analysis and interpretation: C Wang, XD Yuan; (VI) Manuscript writing: All authors; (VII) Final approval of manuscript: All authors.

#These authors contributed equally to this work and are joint corresponding authors.

^ORCID: Chao Wang, 0000-0003-3446-9045; Xiao-Dong Yuan, 0000-0003-1964-5098; Ning Wu, 0000-0002-9307-3115.

Correspondence to: Chao Wang, MD. Department of Magnetic Resonance Imaging, Cangzhou Central Hospital, No. 16 Xinhua West Road, Cangzhou 061001, China. Email: wang5680595chao@163.com; Xiao-Dong Yuan, MD, PhD. Department of Radiology, the 8th Medical Center of PLA General Hospital, 17 Heishanhu Road, Haidian District, Beijing 100091, China. Email: yuanxiaodongzj@163.com.

Background and Objective: Gadolinium ethoxybenzyl-diethylenetriamine pentaacetic acid (Gd-EOB-DTPA)-enhanced magnetic resonance imaging (MRI) is widely used in clinical practice. Its unique hepatobiliary phase (HBP) has been used to improve the detection and identification of hepatic lesions and has also been used to evaluate hepatic function and fibrosis. At the early stage of its clinical practice, the HBP was typically collected empirically with a delay of 20 minutes after intravenous administration to image the liver with sufficient enhancement for diagnosis. However, numerous methods and consensus statements for optimizing HBP acquisition have been proposed. This review details the methods and consensus statements on optimizing HBP collection.

Methods: The electronic literature search was performed using the databases PubMed, MEDLINE, Cochrane, and Embase without limit on publication period to identify published reports on optimizing HBP imaging in Gd-EOB-DTPA-enhanced MRI. Articles with low relevance to the topics were excluded.

Key Content and Findings: Recently, an increasing number of investigations suggest that collecting HBP after 20 min is too drawn-out for patients with normal liver function but is too short for patients with cirrhosis. Previous studies demonstrated that liver enhancement is closely related to liver function in Gd-EOB-DTPA-enhanced MRI. Therefore several reports have proposed various HBP delay times at different liver function levels. These delay times could be evaluated by laboratory indicators, such as prothrombin (PT) activity, total bilirubin, direct bilirubin, and the model for end-stage liver disease. Other investigations have found that the initial visualization time of the intrahepatic bile duct (IHD) in Gd-EOB-DTPA-enhanced MRI to also be related to liver enhancement and function. Therefore, initial visualization of the IHD is considered necessary for adequate HBP and has been employed in HBP acquisition in recent reports.

Conclusions: Optimizing HBP acquisition according to individual hepatic function is a good strategy and was followed in most of the investigations included in our review. Obtaining adequate HBP in the shortest possible time is the target condition in Gd-EOB-DTPA-enhanced MRI. However, a more concise and efficient HBP acquisition strategy is still expected to be developed in the future.

Keywords: Magnetic resonance imaging (MRI); gadolinium ethoxybenzyl-diethylenetriamine pentaacetic acid (Gd-EOB-DTPA); hepatobiliary phase (HBP); optimization; delay time

Submitted Sep 02, 2022. Accepted for publication Jan 04, 2023. Published online Feb 10, 2023.

doi: 10.21037/qims-22-916


Gadolinium ethoxybenzyl-diethylenetriamine pentaacetic acid (Gd-EOB-DTPA), a liver-specific contrast agent with the highest imaging efficiency of its kind, has been widely used in clinical practice. In addition to providing the same dynamic contrast enhancement as conventional extracellular space contrast agents, Gd-EOB-DTPA-enhanced magnetic resonance imaging (MRI) can provide an additional hepatobiliary phase (HBP) for the detection and identification of hepatic lesions and the evaluation of liver function and fibrosis (1-4). Hepatic cells begin to uptake Gd-EOB-DTPA at about 1.5 min after intravenous administration and then reach a peak of uptake around 20 min after administration (5,6). Therefore, an adequate HBP can be typically achieved with a delay of 20 min after intravenous injection. However, 20 min delay time is considered too drawn-out in patients with normal liver function and too short in patients with cirrhosis. Some studies demonstrated that liver uptake and excretion of Gd-EOB-DTPA are closely related to liver function (7,8). Therefore, researchers have employed personalized delay times for HBP acquisition based on patients’ liver function in order to optimize the HBP acquisition. These investigations and findings have contributed to the consensus on the HBP acquisition in Gd-EOB-DTPA-enhanced MRI from the International Forum for Liver Magnetic Resonance Imaging (IFFLMRI). However, liver function should be evaluated sufficiently before the MRI is performed according to the IFFLMRI consensus. Other investigations found that the initial visualization time of the intrahepatic bile duct (IHD) in Gd-EOB-DTPA-enhanced MRI was also related to liver enhancement and function (9). Therefore, initial visualization of the IHD is considered to be 1 of the 2 necessary conditions for adequate HBP in the consensus on the clinical application of Gd-EOB-DTPA from the European Society of Gastrointestinal and Abdominal Radiology (ESGAR) (10). Another necessary condition of the adequate HBP suggested by the ESGAR is a signal intensity (SI) of the hepatic parenchyma higher than that of the intrahepatic vessel, which depends on the observer’s personal judgment. Therefore, optimization of HBP imaging in Gd-EOB-DTPA-enhanced MRI is still a topic that needs to be reviewed and investigated further. We present the following article in accordance with the Narrative Review reporting checklist (available at https://qims.amegroups.com/article/view/10.21037/qims-22-916/rc).

Methods of the study

The electronic literature search was not restricted by publication date and was performed using the PubMed, MEDLINE, Cochrane, and EMBASE databases to identify published reports on optimizing HBP imaging in Gd-EOB-DTPA-enhanced MRI. The search terms we used in the investigation were “Gd-EOB-DTPA”, “gadoxetic acid disodium”, “gadolinium ethoxybenzyl-diethylenetriamine pentaacetic acid”, “hepatobiliary phase”, “hepatocyte phase”, and “consensus” (Table 1). The language of all publications was limited to English. Three authors, Chao Wang, Ning Wu, and Wei-Rong Sun, reviewed the above literature independently. The number of literatures retrieved from the above databases is 962, 380, 384, 132. We excluded articles that were not related to Gd-EOB-DTPA-enhanced MRI HBP acquisition, Finally, a total of 12 articles and the Liver Imaging Reporting and Data System (LI-RADS) version 2018 on the clinical application of liver-specific contrast agents Gd-EOB-DTPA were obtained (Tables 2,3) (10-22).

Table 1

The search strategy summary

Items Specification
Date of search April 9, 2022
Databases and other sources searched PubMed, MEDLINE, Cochrane, Embase
Search terms used (including MeSH and free text search terms and filters) (“Gd-EOB-DTPA” [MeSH]) AND “hepatobiliary phase” [MeSH]
(“gadoxetic acid disodium” [MeSH]) AND “hepatobiliary phase” [MeSH]
(“gadolinium ethoxybenzyl-diethylenetriamine-pentaacetic acid” [MeSH]) AND “hepatobiliary phase” [MeSH]
(“Gd-EOB-DTPA” [MeSH]) AND “hepatocyte phase” [MeSH]
(“gadoxetic acid disodium” [MeSH]) AND “hepatocyte phase” [MeSH]
(“gadolinium ethoxybenzyl-diethylenetriamine-pentaacetic acid” [MeSH]) AND “hepatocyte phase” [MeSH]
(“Gd-EOB-DTPA” [MeSH]) AND “consensus” [MeSH]
(“gadoxetic acid disodium” [MeSH]) AND “consensus” [MeSH]
(“gadolinium ethoxybenzyl-diethylenetriamine-pentaacetic acid” [MeSH]) AND “consensus” [MeSH]
Timeframe January 1, 1999–April 9, 2022
Inclusion and exclusion criteria Inclusion criteria: original article, review, consensus statement. Exclusion criteria: animal trial, literature not published in English, and other literature not related to the topic
Selection process Three authors (Chao Wang, Ning Wu, and Wei-Rong Sun) conducted an independent literature search and finally determined the relevant published reports
Any additional considerations, if applicable The LI-RADS version 2018 was used in the review

MeSH, Medical Subject Headings; Gd-EOB-DTPA, gadolinium ethoxybenzyl-diethylenetriamine pentaacetic acid; LI-RADS, Liver Imaging Reporting and Data System.

Table 2

Consensus reports/statements from the International Forums for Liver MRI using Gd-EOB-DTPA

Sequence Years Venues Technical optimization of HBP imaging (yes/no) Consensus statements of HBP delay time
First (11) 2007 Dublin, Germany Yes Optimal time: 20 min
Some patients: 10 min
Patients with diffuse liver disease: 40 min
Second (12) 2008 Kyoto, Japan Yes Noncirrhotic patients: 10 min
Cirrhotic patients: 20 min or later
Third (13) 2009 Frascati, Italy Yes Optimal time: 20 min
Noncirrhotic patients: 10–15 min
The delay time of HBP may be influenced by bilirubin level; additional data are required to better understand this topic
Fourth (14) 2010 Seoul, Korea No
Fifth (15) 2011 Munich, Germany Yes The delay time of HBP should be selected approximately 10–20 min after intravenous administration, depending on liver function
Sixth (16) 2012 Vancouver, Canada No
Seventh (17) 2013 Shanghai, China Yes While a 20-min delay is acceptable in most patients, a shorter delay time may be feasible for hepatic parenchymal enhancement in some patients. A longer delay time may be helpful for patients with impaired liver uptake and biliary system visualization
Eighth (18) 2017 Basel, Switzerland Yes The minimum protocol in noncirrhotic oncological patients: 10–15 min. The minimum protocol in cirrhotic patients for screening and presurgical evaluation/staging: 20 min
Ninth (19) 2019 Singapore No

MRI, magnetic resonance imaging; Gd-EOB-DTPA, gadolinium ethoxybenzyl-diethylenetriamine pentaacetic acid; HBP, hepatobiliary phase.

Table 3

Other consensuses for HBP imaging

Other consensus Technical optimization of HBP imaging (yes/no) Consensus statements of HBP delay time
Consensus statements from a multidisciplinary expert panel [2012], (20) Yes Current recommendations: 20 min
However, there is increasing evidence supporting acquisition as soon as 10 min after injection in patients with normal liver function
Patients with cirrhosis are advised to have HPB collected longer than the conventional 20-min delay time
Chinese consensus [2019], (21) Yes The best HBP delay time: 20 min reach the peak absorption of the Gd-EOB-DTPA
Normal liver function: 10 min
Chronic liver disease: prolonged to 30 min
ESGAR [2016], (10) Yes Adequate HBP:
Gd-EOB-DTPA is detected in the bile ducts
SIliver >> SIintrahepatic vessels
However, depending on hepatic physiological and pathophysiological function, an optimal hypointense signal of the hepatic vessels cannot always be achieved
LI-RADS version [2018], (22) Yes Adequate HBP:
SIliver >> SIintrahepatic vessels. It is suboptimal otherwise
Drawback: visible excretion of Gd-EOB-DTPA into the bile duct does not indicate adequate HBP

HBP, hepatobiliary phase; ESGAR, European Society of Gastrointestinal and Abdominal Radiology; LI-RADS, Liver Reporting and Data System; Gd-EOB-DTPA, gadolinium ethoxybenzyl-diethylenetriaminepentaacetic acid; SI, signal intensity; SIliver, the signal intensity of liver; SIintrahepatic vessels, the signal intensity of intrahepatic vessels.

Optimizing the delay time of HBP based on different liver functions

Gd-EOB-DTPA is specifically absorbed by the hepatocyte after intravenous injection. However, impaired liver function results in reduced specific absorption of Gd-EOB-DTPA by hepatocytes. Certain studies have shown that a 10-minute delay in detecting liver metastases is sufficient to obtain adequate HBP in patients without chronic liver disease (CLD) (23-25). For example, Caton et al. (26) recently verified that a 15-minute delay time is time-saving for patients with neuroendocrine tumors.

In reports on optimizing the HBP delay time for patients with different liver functions, most studies have concluded that a delay of 15 min is sufficient to obtain adequate HBP in patients with mildly impaired liver function (27). However, another report demonstrated that a 10-minute HBP delay time in patients with Child-Pugh (C-P) A grading is sufficient for identifying hepatocellular carcinomas (HCCs) (28). The suitable delay time of HBP for patients with severe liver function impairment is also controversial. It was reported that extending the delay to 30 min can improve the enhancement of liver parenchyma with cirrhosis, thus improving the conspicuity of hepatic focal lesions, but some investigators deem that further extending the acquisition time in patients with severe cirrhosis is meaningless for obtaining adequate HBP (20,27,29). Whether a delayed HBP acquisition will benefit patients with severe cirrhosis is also controversial. In clinical practice, we tend to postpone HBP collection time in patients with cirrhosis (21).

Methods of optimizing the delay time for HBP and predicting adequate and reasonable HBP

A larger flip angle (FA) can improve the contrast-to-noise ratio, and further studies have indicated that a 5-minute transition phase with 30° FA or 10-minute HBP with 30° FA can replace the 20-minute HBP with a standard 10° FA (30-32). Despite this finding, the absorption of Gd-EOB-DTPA by liver parenchyma on HBP with a 5-minute delay was not sufficient in our clinical practice. Liver enhancement is influenced by clinical laboratory indicators (33-35). In a multicenter study, Okada et al. (36) showed that the enhancement of liver parenchyma is significantly correlated with biochemical indexes. Then, the delay time could be shortened to obtain adequate HBP when prothrombin (PT) activity was at least 86.9%. In order to avoid giving more expensive drugs to patients who cannot benefit from HBP, Kobi et al. (37) showed that a model for end-stage liver disease score, direct bilirubin, and total bilirubin could accurately predict suboptimal HBP to optimize HBP acquisition. Another report showed that suboptimal HBP could be predicted by combining the albumin-bilirubin grading with the liver-to-spleen ratio (LSR) during the 3-minute transition phase (38). The combination of MR elastography and serological examination of liver function using the Bayesian method can also predict applicable HBP to help radiologists and MRI technicians assess the benefits of GD-EOB-DTPA and prevent diagnostic pitfalls (39).

Subsequently, other studies have proven that the liver-portal vein contrast ratio can be used as a surrogate for LSR to evaluate HBP; these studies provided a cutoff value of 1.5, which assisted us in obtaining sufficient HBP to improve the detection of hepatic lesions (40-42). The subjective visual criterion based on the portal vein is also applicable to the estimate of the HBP image and can replace LSR, enriching the means of HBP evaluation (43). In addition, the liver-inferior vena cava ratio (LVCR) can also be used as an objective indicator to evaluate the adequacy of HBP in patients without CLD; when the LVCR reaches 2.0, the delay time can be reduced in 38% of patients without CLD (44). However, most of the above-mentioned methods for predicting HBP are still based on liver function. Some techniques for predicting HBP adequacy based on the MRI still need to be performed manually.

With the rise of artificial intelligence, a convolutional neural network (CNN) has been used to automatically evaluate the adequacy of HBP and optimize the acquisition time. The application of the CNN algorithm may shorten the delay time of HBP and help radiologists identify technically unsatisfactory images and avoid diagnostic pitfalls, shortening HBP acquisition time in almost 48% of patients with liver disease (45). The method based on CNN to evaluate the adequacy of HBP is automated and time-saving. However, CNN, as an emerging technology, still faces great challenges in its generalization because of the requirements on professional knowledge and low robustness in clinical settings (46,47).

Consensus on optimizing HBP delay time

Consensus statements and reports of the IFFLMRI

The consensus statement of the First International Primovist User Meeting held in Dublin on September 22–23, 2007, recommended a delay time of 20 min for HBP. For some patients, a delay of 10 min is sufficient; however, for patients with CLD, an extension of 40 min is necessary (11). Subsequently, optimization of the Gd-EOB-DTPA-enhanced protocol in the Second and Third International Forum for Liver MRI both recommended that a delay time of 10 to 15 min is sufficient for patients without cirrhosis, while the delay time may be extended to 20 min for patients with cirrhosis (12,13). In the Consensus Report of the Fourth International Forum for Gd-EOB-DTPA-enhanced MRI, the role of HBP in detecting small liver lesions was emphasized, and the progress of organic anion-transporting polypeptide 8 transporters was also discussed, without much elaboration on the technical aspects of optimizing HBP (14). Standardization of the Gd-EOB-DTPA-enhanced MRI protocol in the Consensus Report of the Fifth International Forum for Liver MRI recommended an appropriate HBP delay time between 10 and 20 min, depending on liver function (15). However, T1 mapping demonstrated that the T1 relaxation time in liver parenchyma is not shortened after a 13-minute delay time in patients with and without liver function damage, which may indicate that an excessive delay time is meaningless (48). Since the SI of liver parenchyma is related to the shortening of the T1 relaxation time by Gd-EOB-DTPA, a consensus statement was reached on the use of 40° FA in HBP to improve liver lesion conspicuity in the Consensus Report From the Sixth International Forum for Liver MRI Using Gd-EOB-DTPA held in Vancouver, Canada in September 2012, however, the optimal HBP delay time was not explained (16). The consensus report of the Seventh Liver International Forum on the technical optimization of HBP acquisition also suggests that a larger FA would increase the visibility of liver lesions (17,49). If the HBP acquisition time is prolonged appropriately, the visualization of the intrahepatic lesions can be optimized, however reducing patient comfort. The principle for determining when to collect HBP in Gd-EOB-DTPA-enhanced MRI is a trade-off between patient comfort and visualization of the intrahepatic lesions. The 20-min delay time for HBP is often suitable for most individuals. A delay time of less than 20 min may be feasible for some patients, and a delay time greater than the traditional 20 min may be significant for improving liver parenchyma enhancement in patients with cirrhosis (17). The shortened MRI protocols of Gd-EOB-DTPA-enhanced MRI in the Consensus Report from the Eighth International Forum, held in October 2017 in Basel, Switzerland, advised that the minimum delay time of HBP is 20 min in cirrhotic patients, while the minimum delay time of HBP for a patient with normal liver function is 10–15 min (18). Recently, at the Ninth International Forum for Liver MRI held in Singapore in 2019, the significance of abbreviated MRI (AMRI) sequences for detecting HCCs and liver metastases was mentioned, in which HBP in the AMRI sequences were all obtained at a 20-min delay time (19). Based on the comprehensive analysis of the previous consensus reports from the International Forum for Liver MRI, we can conclude that a delay of 10 to 15 min is sufficient for patients with normal liver function, while a conventional delay of 20 min is required for patients with cirrhosis, and a longer delay time is beneficial for the visualization of the biliary and liver parenchyma enhancement in severely cirrhotic patients (Table 2; Figure 1).

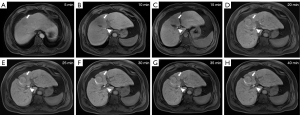

Figure 1 An MRI technician collected 8 HBP from 5 to 40 min in a 54-year-old male with RN (white arrow) after intravenous injection. The contrast between the liver parenchyma and the intrahepatic vessels and the conspicuity of the RN gradually increased. (A) A 5-min HBP, with the biliary tract not being visualized. (B) A 10-min HBP with initial visualization of the biliary tract (white arrowhead). (C) A 15-min HBP. (D) A 20-min HBP. (E) A 25-min HBP. (F) A 30-min HBP. (G) A 35-min HBP. (H) A 40-min HBP. MRI, magnetic resonance imaging; HBP, hepatobiliary phase; RN, regenerated nodule.

Consensus statements on the delay time of HBP from a multidisciplinary expert panel

A multidisciplinary expert panel established in June 2012 recommended an appropriate HBP delay of 20 min. A delay time of more than 20 min was recommended for patients with cirrhosis. However, there is increasing evidence that a delay of 10 min is sufficient for patients with normal liver function (20,50,51).

Chinese consensus on the delay time of HBP

Gd-EOB-DTPA was launched in China in early 2011; however, it is not yet widely used in Chinese hospitals. Moreover, there is a lack of consensus on the use of Gd-EOB-DTPA. Based on this background, a consensus on the clinical application of Gd-EOB-DTPA was proposed in China in 2019. The Chinese consensus on the clinical application of Gd-EOB-DTPA mentioned the scanning protocol to optimize HBP imaging; that is, the general delay time for HBP is 20 min after intravenous injection. Specifically, HBP can be obtained at a 10-min delay time in patients with normal liver function. A longer delay time can increase liver parenchyma enhancement. In patients with cirrhosis, the delay time can be extended to 30 min to further satisfy the enhancement of liver parenchyma (21,52).

Both the multidisciplinary expert panel and Chinese consensus statements determine the reasonable HBP delay time based on liver function. A 10-min delay time is considered feasible for patients with normal liver function, and the HBP collection time can be appropriately extended for patients with cirrhosis (Table 3).

ESGAR consensus statement on the delay time of HBP

ESGAR provides consensus and up-to-date advice on liver MRI and the clinical use of Gd-EOB-DTPA. ESGAR defines an adequate HBP as when the intrahepatic vascular SI is lower than the hepatic parenchyma SI during IHD opacity (10).

Adequate HBP in the LI-RADS version 2018

The technical section of the LI-RADS version 2018 describes how to judge the adequacy of HBP. There is a misconception that biliary imaging represents the adequate enhancement of the hepatic parenchyma (22). LI-RADS version 2018 emphasized the importance of liver enhancement over intrahepatic vessels to obtain an adequate HBP.

Compared with the delay time of individualized adequate HBP based on liver function, if we use ESGAR or LI-RADS version 2018 to determine the adequacy of HBP, we often need to track the changes of multiple structural SIs in the liver for multiple phases (Table 3; Figure 1).

The delay time of HBP acquisition for the evaluation of the liver reserve function

As a liver-specific contrast agent, Gd-EOB-DTPA could be taken up by hepatocytes through the same passageway as bilirubin, resulting in unique HBP imaging. Therefore, Gd-EOB-DTPA-enhanced MRI has been used for hepatic lesion detection and also for liver function reserve evaluation. Reports demonstrated that hepatocytes begin to uptake Gd-EOB-DTPA at about 1.5 min after intravenous administration. However, the early-stage imaging of its liver enhancement, such as the arterial phase, the portal vein phase, and even the transitional phase, is not suitable for evaluating hepatic functional reserve. This is because, at this stage, a large amount of the agents is distributed among the extracellular spaces, which contributes much more to the SI of MRI than do the agents from the intracellular spaces. Theoretically, the amount of the agents accumulated in the intracellular spaces of hepatocytes reflects the hepatic functional reserve. The HBP acquired between 15 and 20 min after intravenous administration has demonstrated good contrast between liver parenchyma and intrahepatic vessels, suggesting that there is more agent in the intracellular spaces than in the extracellular spaces. Therefore, a 15–20-min HBP may be suitable for evaluating the hepatic functional reserve. However, a recent investigation demonstrated the liver-spleen contrast on a 60-min delay HBP has a strong positive correlation with the receptor index (LHL15) calculated from 99mTc-GSA liver scintigraphy (53). Therefore, a much longer delayed acquisition time should be recommended for hepatic functional reserve evaluation than that for hepatic lesion detection.


The value of imaging is not confined to image interpretation. Every initiative that helps the imaging process benefit patients will maintain value beyond image interpretation (54). The image quality, time requirement, and the patients’ comfort in the MRI protocol are all important considerations in the strategies for optimizing HBP acquisition. The importance of the former is self-evident, while the latter two represent a value beyond image interpretation. Due to technical limitations, MRI examination takes a long time, and the noise during the examination is relatively high. The patient’s tolerance to an MRI examination is not very good. Therefore, if the study time is to be extended, especially in Gd-EOB-DTPA-enhanced MRI, we should inform and comfort the examinee to ensure cooperation in the examination. With the in-depth investigation of adequate HBP acquisition, several HBP acquisition protocols have been proposed for different clinical settings. If the relevant laboratory indicators are accessible and liver function grading is achieved prior to the MRI examination, the IFFLMRI consensus can be used to formulate the adequate HBP acquisition protocol. Otherwise, the ESGAR consensus can be used to determine the adequate HBP during the MRI process, which will be the end of the examination. However, it could be time-consuming and laborious for radiologists to judge whether an HBP is adequate.
