Free-breathing simultaneous water-fat separation and T1 mapping of the whole liver (SWALI) with isotropic resolution using 3D golden-angle radial trajectory

Yajie Wang1, Haikun Qi2, Yishi Wang3, Ming Xiao4,5, Canhong Xiang5, Jiahong Dong5, Huijun Chen1

1Center for Biomedical Imaging Research, Department of Biomedical Engineering, School of Medicine, Tsinghua University, Beijing, China; 2School of Biomedical Engineering, ShanghaiTech University, Shanghai, China; 3Philips Healthcare, Beijing, China; 4Department of Hepatobiliary Surgery, The Second Hospital of Shandong University, Jinan, China; 5Hepato-Pancreato-Biliary Center, Beijing Tsinghua Changgung Hospital, School of Clinical Medicine, Tsinghua University, Beijing, China

Contributions: (I) Conception and design: All authors; (II) Administrative support: C Xiang, J Dong, H Chen; (III) Provision of study materials or patients: All authors; (IV) Collection and assembly of data: Yajie Wang, M Xiao; (V) Data analysis and interpretation: Yajie Wang, H Chen; (VI) Manuscript writing: All authors; (VII) Final approval of manuscript: All authors.

Correspondence to: Huijun Chen, PhD. Center for Biomedical Imaging Research, Department of Biomedical Engineering, School of Medicine, Tsinghua University, Beijing 100084, China. Email: chenhj_cbir@mail.tsinghua.edu.cn.

Background: Conventional liver T1 mapping techniques are typically performed under breath-holding conditions; they have limited slice coverage and often rely on multiple acquisitions. Furthermore, liver fat affects the accuracy of T1 quantification. Therefore, we aim to propose a free-breathing technique for simultaneous water-fat separation and T1 mapping of the whole liver (SWALI) in a single scan.

Methods: The proposed SWALI sequence included an inversion recovery (IR) preparation pulse followed by a series of multiecho three-dimensional (3D) golden-angle radial acquisitions. For each echo time (TE), a series of images containing a mix of water and fat were reconstructed using a sliding window method. For each inversion time (TI), water and fat were separated, and then water and fat T1 estimation was conducted. The fat fraction (FF) was calculated based on the last TI image. The FF and water T1 quantification accuracy were compared with the gold standard sequences in the phantom. The in vivo feasibility was tested in 9 healthy volunteers, 2 patients with fatty liver, and 3 patients with hepatocellular carcinoma (HCC). The reproducibility was evaluated in the patients with fatty liver and in the healthy volunteers.

Results: The mean FF and the mean water T1 values obtained by the SWALI sequence showed good agreements with chemical shift-encoded magnetic resonance imaging (CSE-MRI; r=0.998; P<0.001) and fat-suppressed (FS) IR-spin echo (SE; r=0.997; P<0.001) in the phantom. For the patients with fatty liver and the healthy volunteers, the SWALI sequence showed no significant difference with CSE-MRI in FF quantification (P=0.53). In T1 quantification, comparable T1 values were obtained with the SWALI sequence and modified Look-Locker inversion recovery (MOLLI; P=0.10) in healthy volunteers, while the water T1 estimated by the SWALI sequence was significantly lower than the water-fat compound T1 estimated by MOLLI (P<0.001) in patients with fatty liver. In the reproducibility study, the intraclass correlation coefficients (ICCs) for the estimated FF and water T1 were 0.997 and 0.943, respectively. Water T1 of the patients with HCC calculated using the SWALI sequence showed a significant reduction after the contrast administration (P<0.001).

Conclusions: Free-breathing water-fat separation and T1 mapping of the whole liver with 2.5 mm isotropic spatial resolution were achieved simultaneously using the SWALI sequence in a 5-min scan.

Keywords: Water-fat separation; fat fraction (FF); T1 mapping; liver


Submitted Jul 17, 2022. Accepted for publication Dec 01, 2022. Published online Jan 03 2023.

doi: 10.21037/qims-22-748


Introduction

In recent years, T1 mapping—especially the T1 change before and after magnetic resonance (MR) contrast administration of the liver—has been used for the diagnosis of liver disease (1,2), assessing liver fibrosis (3-6) and inflammation (6,7), and for evaluating liver function (8-10). To quantify the T1 of the liver, previous studies often used the variable flip angle technique (4,7-10) or the modified Look-Locker inversion recovery (MOLLI) sequence (1-3,5,6,8). However, these conventional liver T1 mapping techniques are usually performed under breath-holding conditions and have limited slice coverage or rely on multiple acquisitions (1-3,5,9,10). Therefore, a single-scan, free-breathing, whole-liver T1 quantitative technique is needed.

In addition, due to the different resonance frequencies between water and fat protons (~3.5 ppm), the accuracy of T1 quantification can be affected by the presence of fat in the liver, especially for patients with fatty liver. A possible way to solve this problem is to suppress the fat signal using fat saturation, inversion recovery (IR), or water excitation techniques (11-13). However, the fat signal also has diagnostic values under certain circumstances (14-16). Another idea is to separate water and fat by postprocessing the chemical shift-encoded (CSE) data (17-19). Recently, based on the Dixon method, a variety of improved methods for water-fat separation have been developed (20-24). Water-fat separation methods can eliminate the effects of the fat in T1 mapping and also allow the quantification of fat, which is useful for diagnosing fatty liver disease (14-16).

Several previous techniques were proposed that aimed to achieve water-fat separation and T1 quantification simultaneously. The MR fingerprinting technique (25,26) and the PROFIT1 (simultaneous proton density fat-fraction and R2* imaging with water-specific T1 mapping) technique (27) have been used to estimate multiparameters of the liver. However, these techniques were performed under breath-holding conditions with limited slice coverage (25-27). An imaging sequence for joint myocardial T1 mapping and fat–water separation was proposed (28). It can be performed under free-breathing conditions using a pencil beam navigator to track respiratory motion; however, using the navigator reduces the acquisition efficiency (28). The Multiecho Magnetization-Prepared Golden-Angle Radial Sparse Parallel (MP-Dixon-GRASP) technique using IR-prepared stack-of-stars acquisition was proposed for fat-water-separated T1 mapping of the liver (29). Moreover, multitasking multiecho (MT-ME) magnetic resonance imaging (MRI) has been proposed to assess the liver water-specific T1 and fat fraction (FF) (30). However, limited spatial resolution in the slice direction is a common problem faced by the stack-of-stars trajectory used in MP-Dixon-GRASP and MT-ME techniques (29,30).

Here, we propose a free-breathing technique that simultaneously achieves water-fat separation and T1 mapping for the whole liver with isotropic spatial resolution and present the results from testing its clinical feasibility in volunteers and patients.


Methods

Sequence design

The proposed simultaneous water-fat separation and T1 mapping of the whole liver (SWALI) sequence is implemented on a 3.0T MR scanner (Ingenia CX, Philips Healthcare, Best, the Netherlands). An IR preparation pulse is used to generate the T1 contrast (Figure 1A). After a short time Tgap, a series of excitation pulses are performed, and a series of multiecho radial spokes are acquired (Figure 1A). At the end of each shot, a time Tex is used to allow further recovery of the longitudinal magnetization (Figure 1A).

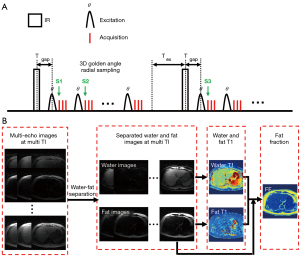

Figure 1 A diagram showing the proposed SWALI sequence and the quantification process of T1 and the FF. (A) After an IR preparation pulse, a series of multiecho 3D golden-angle radial spokes were acquired. Spokes in the adjacent shots acquired with the same TI (S1 and S3) followed the consecutive 3D golden-angle distribution. (B) Multiecho images at each TI were processed to generate the separated water and fat images, which was followed by water and fat T1 estimation. FF was calculated on the last TI image using the estimated water or fat T1 value. IR, inversion recovery; 3D, three-dimensional; TI, inversion time; FF, fat fraction; SWALI, simultaneous water-fat separation and T1 mapping of the whole liver.

Radial spokes in the adjacent shots with the same inversion time (TI; S1 and S3 in Figure 1A) follow the consecutive three-dimensional (3D) golden-angle distribution (31). The azimuthal angle and polar angle increments (∆α and ∆β) between S1 and S3 (Figure 1A) are as follows:

Δα(S1,S3)=2πϕ2

Δβ(S1,S3)=arccos(ϕ1)

ϕ1 and ϕ2 are two-dimensional (2D) golden-angle means, where ϕ1=0.4656 and ϕ2=0.6823 (31).

The azimuthal angle and polar angle increments between the adjacent radial spokes after the same IR (S1 and S2 in Figure 1A) are as follows:

Δα(S1,S2)=2π[Mϕ2]

Δβ(S1,S2)=arccos([Mϕ1])

M is the total number of shots, […] indicates that only a fractional part is kept.

Spokes after the same excitation pulse acquired at different echo times (TEs) share the same acquisition trajectory.

Assuming the longitudinal magnetization before IR is Mss, then the longitudinal magnetization before the first excitation pulse Mθ (1) is the following:

Mθ(1)=M0(M0+Mss)Egap

M0 is the equilibrium magnetization, and Egap=exp(Tgap/T1).

The longitudinal magnetization before the kth excitation pulse Mθ (k) is as follows:

Mθ(k)=Mθ(1)(E1cos(θ))k1+M0(1E1)1(E1cos(θ))k11E1cos(θ)

where E1= exp (−TR/T1). After experiencing a series of the excitation pulses and the time Tex, the longitudinal magnetization before the next IR is as follows:

Mz(Tex)=Mθ(N+1)Ee+M0(1Ee)

Ee=exp(Tex/T1)

N is the number of excitation pulses in 1 shot (turbo field echo factor).

After several shots, the steady-state can be achieved, with Mz (Tex) = Mss. Thus, Mss can be calculated as follows:

Mss=M0(1Ee)+M0Ee[(1Egap)(E1cos(θ))N+(1E1)1(E1cos(θ))N1E1cos(θ)]1+EgapEe(E1cos(θ))N

The MR signal acquired after each of the kth excitation pulses Mxy (k) can be calculated as follows:

Mxy(k)=Mθ(k)sin(θ)eTE/T2*

The scan parameters of the proposed SWALI sequence are as follows: field of view (FOV) =200×200×200 mm3 (2-fold oversampling), spatial resolution =2.5×2.5×2.5 mm3, matrix size =160×160×160, repetition time (TR) =10 ms, 3 unipolar echoes, first TE/ΔTE =1.02/1.40 ms, flip angle =8°, turbo field echo factor =175, Tgap =10 ms (minimum value allowed on the scanner), inversion recovery repetition time (IRTR) =2,000 ms, Tex =240 ms [IRTR − (Tgap + turbo field echo factor × TR)], the total number of shots =150, and scan duration =5 min.

Image reconstruction

The reconstruction was implemented in MATLAB (MathWorks, Inc., Natick, MA, USA). For each TE, a series of T1-weighted water-fat mixed images were reconstructed using a sliding window method with a temporal width of 25 spokes (temporal resolution =250 ms) (32-34). The reconstruction method with low-rank modeling and sparsity constraints was applied to further improve the image quality (35-37).

Water-fat separation and T1 mapping

The quantification process of T1 and FF is shown in Figure 1B. First, for the reconstructed multiecho images at each TI, water and fat are separated based on a multipeak fat model (24):

s(tn)=ei2πfBtn(MW+MFp=1Pαpei2πfptn),n=1,2,...,N

Where s (tn) is the MR signal at TE tn (n=1, 2, …, N); fB is the frequency shift caused by B0 field inhomogeneity; MW and MF are the amplitudes of the water and fat components, respectively; P is the number of fat spectrum peaks; fP is the frequency difference of the p th fat spectral peak relative to water (p=1, 2, …, P); αP is the relative amplitude for the p th fat spectral peak; and p=1Pαp=1. In this study, the values of P, fP and αP were taken from the literature (20). s (tn) was obtained from the reconstructed multiecho images, and fB, MW and MF were fitted using a graph cut algorithm (20,38).

After separating the water and fat images at each TI, separated water and fat T1 mapping of the liver are estimated by fitting the signal intensities extracted from a series of T1-weighted water or fat images to the theoretically calculated signal {Eqs. [5-10]} using the nonlinear least squares algorithm (39).

Then, the equilibrium magnetization of the water (M0W) and fat (M0F) are calculated on the last TI image by treating water or fat T1 as the known values in Eqs. [5-10]. FF is defined as 100× M0F /(M0W + M0F). The magnitude discrimination method is used to reduce the noise bias at a low FF (40).

Phantom study

A total of 13 in-house water-fat phantoms with different T1 values (range, 100–1,000 ms) and FFs (range, 0–100%) were made with distilled and deionized water, agar (2.0% w/v), gadolinium diethylenetriamine pentaacetic acid (Gd-DTPA; concentration range, 1.85–0.07 mmol/L to produce different T1 values; Magnevist, Bayer Schering Pharma, Berlin, Germany), peanut oil, and sodium dodecyl sulfate (Sinopharm Chemical Reagent Co., Ltd., Shanghai, China) (41,42). Phantoms were scanned on a 3.0T MR scanner (Ingenia CX, Philips Healthcare). Apart from the proposed SWALI sequence, the commercial CSE-MRI method (mDIXON, Philips Healthcare) and 2D fat-suppressed (FS) IR-spin echo (SE) sequences were used as the gold standard of the FF and water T1 quantification. The scan parameters of CSE-MRI were FOV =380×264 mm2, spatial resolution =2.5×2.5 mm2, slice thickness =5 mm, TR =5.80 ms, 6 bipolar echoes, first TE/ΔTE =1.01/0.70 ms, flip angle =3°, and scan duration =10 s. FS IR-SE were scanned using the following parameters: FOV =200×140 mm2, spatial resolution =2.5×2.5 mm2, slice thickness =5 mm, TR/TE =10,000/9.0 ms, TI = (100, 200, 300, 400, 500, 600, 700, 800, 900, 1,000, 1,500, 2,000) ms, and scan duration =9 min 40 s per TI. The total scan time of the gold standard sequences was 1 h 56 min and 10 s. In addition, to investigate the effect of fat on T1 quantification, the MOLLI (43) sequence was performed to estimate the water-fat compound T1 of the phantom with the following scan parameters: FOV =300×300 mm2, spatial resolution =2×2 mm2, slice thickness =10 mm, TR/TE =1.98/0.89 ms, flip angle =20°, no fat suppression, and scan duration =11 s.

In vivo study

The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). The study was approved by the institutional review board of Tsinghua University, and informed consent was obtained from all individual participants. The study recruited 9 healthy volunteers, 2 patients with fatty liver, and 3 patients with hepatocellular carcinoma (HCC). All scans were performed on a 3.0-T MR scanner (Ingenia CX, Philips Healthcare) using a 16-channel torso coil and a 16-channel posterior coil. Healthy volunteers and patients were instructed to breathe normally during the SWALI sequence acquisition.

Because the total scan time of FS IR-SE is too long and can be easily affected by respiratory motion, only CSE-MRI and MOLLI (43) sequences were used for FF and T1 quantification comparison in healthy volunteers and patients with fatty liver. The CSE-MRI sequence was performed under breath-holding conditions with the same parameters as those used in the phantom study. Three axial slices at different locations were imaged using 3 MOLLI sequences. Each MOLLI sequence was performed in 1 breath-hold under the following scan parameters: FOV =380×380–400×400 mm2, spatial resolution =2×2 mm2, slice thickness =5 mm, TR/TE =1.98/0.89 ms, flip angle =20°, no fat suppression, and scan duration =11 s. Three square regions of interest (ROIs; ~100 mm2 each) were manually drawn on each MOLLI image, resulting in 9 liver ROIs for each participant. Corresponding liver ROIs were also manually drawn on SWALI and CSE-MRI images on the slices at the same location as MOLLI. To evaluate the reproducibility of the proposed SWALI sequence, a repeated SWALI scan was acquired in 5 healthy volunteers and 2 patients with fatty liver using the same imaging protocol.

Patients with HCC underwent a gadolinium ethoxybenzyl diethylenetriamine pentaacetic acid (Gd-EOB-DTPA)-enhanced MR scans. During the MR scan, 0.025 mmol/kg of Gd-EOB-DTPA (Primovist; Bayer Schering Pharma) was injected at a rate of 2 ml/s. The SWALI sequence was performed precontrast and 15 min after the contrast administration. The difference between the pre- and postcontrast water T1 (ΔT1) was calculated as 100 × (T1preT1post)/T1pre pixel by pixel, which could reflect the liver function (9). Nine square ROIs (~100 mm2 each) were drawn on liver parenchyma, and the mean precontrast FF and T1, the mean postcontrast FF and T1, and the mean ΔT1 within each ROI were averaged.

Statistical analysis

In the phantom study, the mean and standard deviation of the FF and water T1 of each phantom estimated by SWALI were calculated and compared with those obtained using the CSE-MRI and FS IR-SE using Pearson or Spearman correlation and linear regression analysis.

For healthy volunteers and patients with fatty liver, a paired t-test or Wilcoxon signed-rank test was used to compare the mean FF or the mean T1 within each ROI estimated by the SWALI sequence with that estimated using CSE-MRI or MOLLI. Pearson or Spearman correlation and linear regression analyses were also performed to compare the SWALI and reference sequences. In the reproducibility study, the FF and water T1 from the second scan were compared with those from the first SWALI scan using the intraclass correlation coefficient (ICC). For patients with HCC, the differences between the pre- and postcontrast FF and the pre- and postcontrast T1 were compared using a paired t-test or Wilcoxon signed-rank test, as appropriate.

A P value less than 0.05 was considered statistically significant. All statistical analyses were performed in SPSS 23.0 (IBM Corp, Armonk, NY, USA).


Results

Phantom study

The FF and water T1 maps of the phantom estimated with the gold standard sequences and the proposed SWALI sequence are shown in Figure 2. The mean FF and water T1 values within each tube estimated by the SWALI sequence show good agreement with those estimated with CSE-MRI [correlation coefficient (r) =0.998; P<0.001; R2=0.99] and FS IR-SE (r=0.997; P<0.001; R2=0.99). In tubes with high FFs, the water-fat compound T1 estimated using MOLLI was longer than the water T1 estimated using FS IR-SE (Figure 2B).

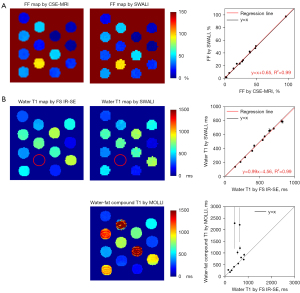

Figure 2 Quantitative mapping results of the water-fat phantom. (A) FF maps were estimated using CSE-MRI and the proposed SWALI sequence with quantitative comparison (correlation with the mean and standard deviation). To show the phantom with a low FF, the FF of the background was set as 150%. (B) Water T1 maps were estimated using FS IR-SE and the proposed SWALI sequence with quantitative comparison (correlation with the mean and standard deviation). Water T1 of the tube with pure peanut oil could not be calculated (red circle). The water-fat compound T1 was estimated using MOLLI and was compared to water T1 estimated using FS IR-SE. FF, fat fraction; CSE-MRI, chemical shift-encoded magnetic resonance imaging; SWALI, simultaneous water-fat separation and T1 mapping of the whole liver; FS, fat-suppressed; IR, inversion recovery; SE, spin echo; MOLLI, modified Look-Locker inversion recovery.

In vivo study

All 9 healthy volunteers (7 males and 2 females, age 34.7±10.8 years) and 2 patients with fatty liver (2 males, age 25.5±3.5 years) underwent MR acquisitions. The separated water and fat images, FF maps, and T1 maps of 1 healthy volunteer are shown in Figure 3. Similar FF and T1 distributions were found when using the SWALI and compared sequences (Figure 3). Figure 4 shows the separated water and fat images and quantitative maps of 1 patient with fatty liver (mean FF =18.9%). The water T1 map estimated using the SWALI sequence was different from the water-fat compound T1 map estimated using MOLLI (Figure 4).

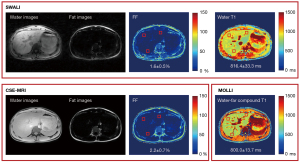

Figure 3 Quantitative mapping results of 1 healthy volunteer (female, 28 years old). The separated water image, fat image, FF map, and water T1 map estimated by the proposed SWALI sequence are compared with the separated water image, fat image, and FF map estimated using the CSE-MRI sequence and the water-fat compound T1 estimated using the MOLLI sequence. The red squares show 3 ROIs (~100 mm2 each) that were manually drawn. The mean FF and water T1 were calculated within each ROI. SWALI, simultaneous water-fat separation and T1 mapping of the whole liver; FF, fat fraction; CSE-MRI, chemical shift-encoded magnetic resonance imaging; MOLLI, modified Look-Locker inversion recovery; ROI, region of interest.

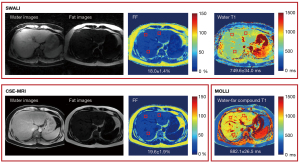

Figure 4 Quantitative mapping results of 1 patient (male, 28 years old) with fatty liver. The separated water image, fat image, FF map, and water T1 map estimated using the proposed SWALI sequence compared with the separated water image, fat image, and FF map estimated using the CSE-MRI sequence and the water-fat compound T1 estimated using the MOLLI sequence. The red squares show 3 ROIs (~100 mm2 each) that were manually drawn. The mean FF and water T1 were calculated within each ROI. SWALI, simultaneous water-fat separation and T1 mapping of the whole liver; FF, fat fraction; CSE-MRI, chemical shift-encoded magnetic resonance imaging; MOLLI, modified Look-Locker inversion recovery; ROI, region of interest.

For all healthy volunteers and patients with fatty liver, the comparison of FF and water T1 between the proposed SWALI sequence and the reference sequences are shown in Table 1. Results from the SWALI sequence showed no significant difference from those estimated using CSE-MRI in FF quantification (P=0.53) with a r of 0.989 (P<0.001) in the correlation analysis and an R2 value of 0.98 in the linear regression analysis. The mean FF calculated using the SWALI and CSE-MRI techniques were 2.6%±1.3% vs. 2.5%±0.7% in healthy volunteers (n=9). The mean FF calculated using the SWALI and CSE-MRI techniques were 27.5%±9.5% vs. 27.0%±8.7% in patients with fatty liver (n=2). In T1 quantification, a slightly higher T1 was obtained by the proposed SWALI sequence than that by MOLLI without a significant difference (775.9±71.0 vs. 768.4±61.5 ms; P=0.10) in healthy volunteers (n=9), with a r of 0.821 (P<0.001) in the correlation analysis and an R2 value of 0.68 in the linear regression analysis. The water T1 estimated using the SWALI sequence was significantly lower than the water-fat compound T1 estimated by MOLLI (778.1±53.8 vs. 1,093.9±230.1 ms; P<0.001) in patients with fatty liver (n=2).

Table 1

Comparison of the FF and water T1 between the proposed SWALI sequence and the reference sequences in the in vivo study

Participants FF (%) Water T1 (ms)
SWALI CSE-MRI P SWALI MOLLI P
Healthy volunteers 2.6±1.3 2.5±0.7 0.53 775.9±71.0 768.4±61.5 0.10
Patients with fatty liver 27.5±9.5 27.0±8.7 778.1±53.8 1,093.9±230.1 <0.001

Data are expressed as mean ± SD. FF, fat fraction; SWALI, simultaneous water-fat separation and T1 mapping of the whole liver; CSE-MRI, chemical shift-encoded magnetic resonance imaging; MOLLI, modified Look-Locker inversion recovery; SD, standard deviation.

In the subset of 7 participants (5 healthy volunteers and 2 patients with fatty liver) who underwent repeated SWALI scans, the ICCs for the estimated FF and water T1 between the first and the second scan were 0.997 [95% confidence interval (CI): 0.995–0.998; P<0.001] and 0.943 (95% CI: 0.906–0.965; P<0.001), respectively.

The 3 recruited patients with HCC (2 males and 1 female, age 52.7±6.7 years) completed the pre- and postcontrast SWALI acquisitions. Figure 5 shows the FF map, T1 map, and T1 map estimated from pre- and postcontrast SWALI sequences of 1 patient. The HCC region shows different T1 distributions compared to those of the liver parenchyma on pre- and postcontrast T1 maps and T1 maps (Figure 5). For all patients, the FF estimated by the pre- and postcontrast SWALI showed no significant difference (2.1%±0.8% vs. 1.8%±0.5%; P=0.08). Water T1 of the patients showed a significant reduction after contrast administration (277.7±23.6 vs. 816.7±37.7 ms; P<0.001). The mean ∆T1 of the patients was 66.0%±2.5%.

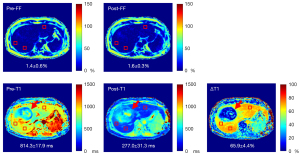

Figure 5 Quantitative mapping results of a patient with HCC (female, 60 years old). The FF map and water T1 map were estimated using the proposed SWALI sequence before and 15 min after the Gd-EOB-DTPA injection. ΔT1 map was calculated as 100×(T1preT1post)/T1pre. The red arrow shows the HCC lesion. The red squares show the 3 square ROIs (~100 mm2 each) that were manually drawn. The mean FF, water T1, and ΔT1 were calculated within each ROI. FF, fat fraction; HCC, hepatocellular carcinoma; SWALI, simultaneous water-fat separation and T1 mapping of the whole liver; Gd-EOB-DTPA, gadolinium ethoxybenzyl diethylenetriamine pentaacetic acid; ROI, region of interest.

Discussion

In this study, free-breathing water-fat separation and T1 mapping of the whole liver were achieved simultaneously within 1 scan using the proposed SWALI sequence. Compared to commonly used T1 techniques in the liver, such as MOLLI and variable flip angle sequences, the advantages of the proposed sequence included free-breathing, a single scan for the whole liver coverage, and isotropic spatial resolution, and the obtained images and quantitative maps were naturally coregistered. The proposed SWALI sequence showed good FF and T1 quantification accuracy when compared with the gold standard sequences in the phantom study. The clinical feasibility of the SWALI sequence was demonstrated by the volunteer and patient study.

A free-breathing technique is valuable, especially for patients who have difficulties holding their breath. The 3D golden-angle radial trajectory used in the proposed sequence was robust to motion. The results of our study demonstrated that, even though no respiratory motion correction algorithm was applied, the proposed free-breathing technique did not show severe motion artifacts on the reconstructed images or in the estimated FF and T1 maps. In contrast to the stack-of-stars trajectory used in the MT-ME technique (30), which needs perpendicular center k-space line acquisition every 8 readouts, there was no need to acquire the additional repeated k-space data for the 3D golden-angle radial trajectory because each of the k-space lines went through the k-space center. The temporal motion information could be directly extracted from the acquired k-space data itself (30,44,45). In the future, self-respiratory motion correction algorithms can be applied to reduce the image blur caused by respiratory motion and can further improve the quantification accuracy, especially in those with large respiratory motions (30,44,45).

In addition to FS IR-SE, MOLLI was also used for T1 comparison in this study. However, fat suppression or water selection could not be applied to the MOLLI sequence; thus, MOLLI was used to measure the water-fat compound T1. Therefore, finding a significant difference between the water T1 measured by the proposed SWALI sequence and the water-fat compound T1 measured by the MOLLI sequence in patients with high liver FFs was reasonable. In this study, the TE of the MOLLI sequence was set as 0.89 ms, which was close to the out-of-phase time of water and fat at 3.0 T. Under this scan parameter, the signal recovery could be calculated by the difference between the water and fat recovery weighted by their relative fractions. Thus, the presence of fat slowed down the recovery of the water signal, resulting in a longer water-fat compound T1 obtained by MOLLI compared to water T1, as shown in the previous study and the phantom and in vivo experiments of our study (46). Although no gold-standard in vivo water T1 quantification sequence was applied in this study, the water T1 of the liver in healthy volunteers estimated by the proposed SWALI sequence was 775.9 ms, which was similar to that reported by previous studies (29,30).

This study still has some limitations. First, 3 echoes were used, and the effect of T2* was not considered in the water-fat separation of the SWALI sequence. Although T2* effect can be ignored when TE is short and in patients with normal T2*, the comparison between the SWALI sequence and the gold-standard CSE-MRI, which used 6 echoes for T2* correction, may have some underlying biases. In addition, the proposed SWALI sequence may not be suitable for patients with hepatic iron overload who have short T2* of the liver. In the future, more echoes should be applied in the SWALI sequence to estimate T2* paired with fat quantification. Second, FS IR-SE and MOLLI sequences were used in the phantom study, but only MOLLI was performed in the in vivo study because FS IR-SE has a long scan time and is sensitive to motion. T1 quantified by MOLLI will be affected by the presence of fat; therefore, other water T1 reference sequences, such as the water-fat separated variable flip angle technique, can be applied for in vivo comparison in the future. Third, the scan time of the proposed sequence was 5 min, which may still be too long for clinical application. More in vivo studies are required to explore the clinical value of the proposed technique.


Conclusions

In this study, free-breathing water-fat separation and T1 mapping quantification of the whole liver were achieved within 1 scan using the proposed SWALI sequence. The quantitative accuracy and the in vivo feasibility of the proposed sequence were demonstrated in phantom, volunteer, and patient studies.


Acknowledgments

We acknowledge the use of the International Society for Magnetic Resonance in Medicine (ISMRM) Fat-Water Toolbox (https://www.ismrm.org/workshops/FatWater12/data.htm). An abstract related to this work was presented at the ISMRM 31st Annual Meeting & Exhibition in May 2022.

Funding: This work was supported by the National Natural Science Foundation of China (No. 81930119 to Jiahong Dong) and the Beijing Municipal Natural Science Foundation (No. Z190024 to Huijun Chen).


Footnote

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at https://qims.amegroups.com/article/view/10.21037/qims-22-748/coif). Yishi Wang reports that he is an employee of Philips Healthcare. JD reports that this study was funded by the National Natural Science Foundation of China (No. 81930119). HC reports that this study was funded by the Beijing Municipal Natural Science Foundation (No. Z190024). The other authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). The study was approved by the institutional review board of Tsinghua University, and informed consent was obtained from all individual participants.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
