A correlative study between IVIM-DWI parameters and VEGF and MMPs expression in hepatocellular carcinoma
Hepatocellular carcinoma (HCC) is the fourth most common cause of cancer-related death in the world (1,2). Tumor growth can be limited by suppressing tumor angiogenesis. Angiogenic factors have been identified as valuable indices of recurrence in the treatment of tumors and as useful markers to predict antiangiogenesis therapy response (3). Among these factors, vascular endothelial growth factor (VEGF) and matrix metalloproteinases (MMPs) are major drivers of tumor angiogenesis. Preoperatively predicting VEGF and MMP expression is critical to treating HCC.
Intravoxel incoherent motion diffusion-weighted imaging (IVIM-DWI) is a new technology that has emerged in recent years. Using a biexponential model, IVIM-DWI can quantitatively measure information related to pure water molecule diffusion and microcirculation perfusion, thus compensating for the shortcomings of traditional DWI. Recently, IVIM-DWI has been successfully used in differential diagnosis (4), pathological grading (5-7), assessment of microvascular invasion (MVI) (7), and evaluation of treatment response (8). Several studies have investigated the relationship between apparent diffusion coefficients (ADCs) derived from traditional DWI and VEGF expression in various tumors, but the reported results are contradictory (9-11).
However, there are no reports on the use of IVIM-DWI to evaluate the expression of VEGF and MMPs in HCC. This study provides a preliminary analysis of the correlation between IVIM-DWI parameters and the expression of VEGF, MMP-2, and MMP-9 to investigate the value of IVIM-DWI in the noninvasive evaluation of angiogenesis in HCC.
The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). This study was approved by the Ethics Committee of the Affiliated Hospital of North Sichuan Medical College. Written informed consent was obtained from all study participants. A total of 393 patients with HCC who visited the Affiliated Hospital of North Sichuan Medical College between January 2018 and September 2019 were included. The final cohort consisted of 61 patients with HCC who had no other liver diseases according to the inclusion and exclusion criteria (Figure 1). Patients were included if they (I) had received surgery within 1 week after magnetic resonance imaging (MRI) examination, (II) had not received preoperative radiochemotherapy or preoperative interventional therapy, and (III) had a postoperative pathological diagnosis of HCC. Patients were excluded if they (I) had contraindications for MRI examination or (II) had incomplete data or poor image quality.
MRI scan and data measurement

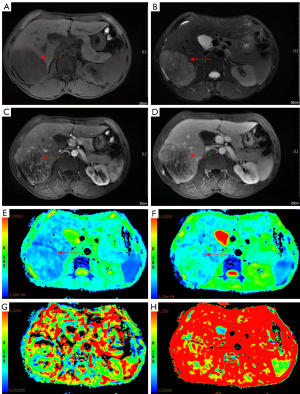

All patients underwent conventional noncontrast-enhanced MRI, dynamic contrast-enhanced MRI, and IVIM-DWI imaging using a 3.0T magnetic resonance scanner with a 32-channel phased array body coil (Discovery MR750, GE Healthcare, Chicago, IL, USA). Patients had fasted for more than 4 hours and completed respiration training before the MRI scans. Each patient was scanned from the apex of the diaphragm to the lower edge of the liver. The MRI sequence and parameters and the data measurement method used in this study were the same as those used in previous studies (12,13). The IVIM-DWI sequence (respiratory-triggered) was obtained using the following parameters: repetition time/time to echo (TR/TE), 3529/60.8 ms; flip angle (FA), 90°; matrix, 128×160; field of view (FOV), 340×340 mm2 to 360×360 mm2; and section thickness, 5 mm. Nine b values (b=0, 20, 50, 100, 150, 200, 400, 800, and 1,000 s/mm2) were used for the IVIM-DWI sequence, and segmented fitting with a threshold b value of 200 s/mm2 was used. The contrast-enhanced MRI sequence was acquired after IVIM-DWI. The contrast agent (Gd-DTPA; 15–20 mL) was injected with a high-pressure syringe through the vein of the hand at an injection speed of 2–2.5 mL/s.
MR images were sent to a GE ADW4.6 workstation and analyzed using Function-MADC software. A 70–80 mm2 region of interest (ROI) was manually selected in the largest solid area of the HCC lesion, with areas with necrosis, hemorrhage, or cystic degeneration being avoided. Pseudocolor parameter maps of the ADC, slow apparent diffusion coefficient (D), fast apparent diffusion coefficient (D*), and fast apparent diffusion coefficient fraction (f) were generated. All parameter values were measured 3 times, and the average values were recorded.
The VEGF, MMP-9, and MMP-2 antibodies (Abcam, Cambridge, UK) were clones ab1316, ab38898, and ab86607, respectively, and their dilutions were 1:200, 1:250, and 1:250, respectively. Postoperative HCC tissue specimens were fixed in 10% formalin, dehydrated in ethanol, cleared in xylene, embedded in paraffin, and serially sectioned into 5-µm slices for hematoxylin and eosin (HE) staining and immunohistochemical staining. The VEGF, MMP-9, and MMP-2 staining results were evaluated based on the semiquantitative method of Shimizu et al. (14,15).
Scores for the proportion of stained cells were as follows: 0 points indicated that no cells were stained, 1 point indicated that 1–10% of tumor cells stained positively, 2 points indicated that 11–50% of tumor cells stained positively, and 3 points indicated that 51–100% of tumor cells stained positively.
Scores for staining intensity were as follows: 0 points indicated that no cells were stained, 1 point indicated that the tumor cells stained light yellow, 2 points indicated that the tumor cells stained brownish yellow, and 3 points indicated that the tumor cells stained brown.
The overall score was defined as the sum of the scores for the proportion of stained cells and for staining intensity: overall score = score for the proportion of stained cells + score for staining intensity. The overall score was divided into 3 levels: 0–2 points represented negative, 3–4 points represented positive, and 5–6 points represented strongly positive.
All data were statistically analyzed using SPSS 23.0 (IBM Corp, Armonk, NY, USA). One-way analysis of variance was used to compare the differences in IVIM-DWI parameters between HCC tissues with negative, positive, and strongly positive expressions of VEGF, MMP-9, and MMP-2.
Spearman correlation analysis was used to analyze the correlation between the IVIM-DWI parameters and the expression of VEGF, MMP-9, and MMP-2 in HCC tissues. A P value less than 0.05 indicated a statistically significant difference.

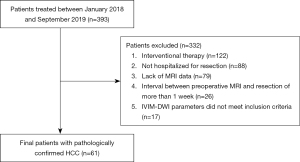

The 61 patients in this study included 55 males and 6 females aged 29 to 70 years; the average age was 50.3±10.4 years. The tumor size ranged from 1.2 to 16.1 cm with an average size of 5.1±3.3 cm. VEGF expression was negative in 10 patients, positive in 39 patients, and strongly positive in 12 patients. MMP-9 expression was negative in 12 patients, positive in 30 patients, and strongly positive in 19 patients. MMP-2 expression was negative in 17 patients, positive in 36 patients, and strongly positive in 8 patients.

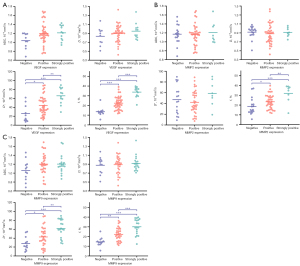

The f value was significantly different among patients with different expression levels of VEGF, MMP-2, and MMP-9. The f values of patients strongly positive for VEGF, MMP-2, and MMP-9 were significantly higher than those of patients who were positive or negative for VEGF, MMP-2, and MMP-9. The f values of patients positive for VEGF, MMP-2, and MMP-9 were significantly greater than those of patients negative for VEGF, MMP-2, and MMP-9, respectively. The D* value was significantly different between patients with different expression levels of VEGF and MMP-9 and was not significantly different between patients with different expression levels of MMP-2. The D* values of patients who were strongly positive for VEGF and MMP-9 were greater than those of patients positive for VEGF or negative for MMP-9. The D* values of patients positive for VEGF and MMP-9 were greater than those of patients negative for VEGF and MMP-9. The ADC and D value were not significantly different among patients with different expression levels of VEGF, MMP-2, and MMP-9.
The f value was positively correlated with the expression of VEGF, MMP-2, and MMP-9. The D * value was positively correlated with VEGF and MMP-9 expression but was not correlated with MMP-2 expression. ADC and D values did not significantly correlate with the expression of VEGF, MMP-2, or MMP-9 (Tables 1,2; Figures 2-4).
|Biomarker||ADC (10–3 mm2/s)||D (10–3 mm2/s)||D* (10–3 mm2/s)||f (%)|
The values of ADC, D, D*, and f are presented as mean ± standard deviation. Superscript letters indicate significant differences between groups. D, slow apparent diffusion coefficient; D*, fast apparent diffusion coefficient; f, fast apparent diffusion coefficient fraction. HCC, hepatocellular carcinoma; VEGF, vascular endothelial growth factor; MMP, matrix metalloproteinase; IVIM-DWI, intravoxel incoherent motion diffusion-weighted imaging; ADC, apparent diffusion coefficient.
|r||P value||r||P value||r||P value|
D, slow apparent diffusion coefficient; D*, fast apparent diffusion coefficient; f, fast apparent diffusion coefficient fraction. HCC, hepatocellular carcinoma; VEGF, vascular endothelial growth factor; MMP, matrix metalloproteinases; IVIM-DWI, intravoxel incoherent motion diffusion-weighted imaging; ADC, apparent diffusion coefficient.
Le Bihan (16) was first to propose the concept of IVIM in the 1980s. IVIM-DWI refers to diffusion-weighted imaging based on a double exponential model that can quantitatively obtain information on water molecule diffusion and microcirculatory perfusion-related diffusion. It compensates for a deficiency of the conventional single exponential model–based DWI, which can only determine the ADC (17). D, an IVIM-DWI parameter, reflects the diffusion of water molecules in the tissue within the ROI; D* reflects the microcirculatory perfusion in the ROI; f represents the ratio of microcirculatory perfusion-related diffusion volume to total diffusion volume (18-20). The attenuation of the IVIM-DWI signal in tissue is related to the b value (18,21):
where Sb and S0 are the signal intensities at b values of b and 0 s/mm2, respectively (21).
VEGF is an endothelial cell–specific mitogen that induces angiogenesis (22). VEGF plays an important role in mediating tumor angiogenesis (23-28). MMPs are zinc-dependent endopeptidases with proteolytic enzyme activity that play an important role in extracellular matrix remodeling and affect tumor growth, invasion, and distant metastasis (29,30). MMP-2 and MMP-9 are important members of the MMP family and are the 2 most effective initiators of collagen breakdown (30). They play a key role in the angiogenesis, invasion, and metastasis of HCC (31,32). In tumor angiogenesis, there is a complex mutual regulatory relationship between VEGF and MMPs (33-36).
Microvessel density (MVD) is commonly used to evaluate tissue perfusion. Perfusion-related IVIM-DWI parameters, such as D* and f, and the expression of angiogenic factors, such as VEGF, MMP-2, and MMP-9, in tumor tissue are significantly positively correlated with MVD (31,32,37-41). IVIM-DWI parameters can be used to evaluate tumor angiogenesis (40,42,43). An IVIM-DWI study of a mouse lung cancer model showed that D* and f were positively correlated with VEGF expression (43). A study using MR-DWI to monitor how metastatic abdominal and pelvic tumors responded to a VEGF inhibitor showed that D* significantly decreased on day 7 and that f significantly decreased on day 28 (44). Significant differences in the f values of colorectal cancer patients with different expression levels of mismatch repair proteins may be related to the differential expression of VEGF and its receptor, VEGFR2 (40). However, D* is reported to have no correlation with VEGF (42). The possible causes of these controversial findings may be that the structure and density of some capillaries cannot reflect the information from macroscopic tumors and blood vessels (42); other physiological processes, such as glandular secretion and fluid flows inside the glandular ducts and other ducts, may affect the measured D* values (45), and D* is associated with a low signal-to-noise ratio (46) and poor stability (18,47). In this study, D* was positively correlated with the expression of VEGF and MMP-9, and f was positively correlated with the expression of VEGF, MMP-9, and MMP-2, suggesting that perfusion-related IVIM-DWI parameters could reflect angiogenesis in HCC.
The correlations between the IVIM-DWI parameters ADC and D and tumor angiogenesis are inconsistent across different studies (10,39,40,44,48-51). Li et al. (51) showed a statistically significant correlation between the D value and MVD. In contrast, Lee et al. (39) found no significant correlation between tissue diffusivity (Dt) and MVD. Regarding the relationships between the IVIM-DWI parameters ADC and D and the angiogenic factors VEGF and MMPs, some studies have shown that ADC is negatively correlated with VEGF (10,49-50), MMP-9, and MMP-2 (15) expression, while other studies have shown that ADC is positively correlated (52) or nonsignificantly (11,53,54) correlated with VEGF expression. These inconsistent results might be related to a number of factors. First, the relationship between VEGF and MMP expression and tumor angiogenesis is complex (55). Second, VEGF expression leads to the proliferation of tumor cells and restricted movement of intracellular and extracellular water molecules, which can decrease ADC values (10). On the other hand, it leads to more tumor blood vessels, faster proton movement in lumens, and increased ADC values (52). Third, VEGF expression is already high in the early stage of tumor development and does not increase exponentially with tumor growth (52). Fourth, in addition to VEGF and MMPs, other angiogenic factors are also involved in tumor angiogenesis (55,56). Fifth, factors such as sample size, b value, and distribution may also affect the measured results (16,18,57).
The results of this study indicated no significant correlations between the IVIM-DWI parameters ADC and D and the angiogenic factors VEGF, MMP-2, and MMP-9. Further research is needed in the future.
This study has some limitations. First, the relationship between the IVIM-DWI parameters and the degree of HCC tissue enhancement was not investigated. Second, due to tumor heterogeneity, the values of the IVIM-DWI parameters obtained from selective ROIs could not fully represent the overall tumor condition. Third, the number and size distributions of b values are not yet standardized and thus require further optimization (58,59). In addition, according to current IVIM models, the mutual constraint of the diffusion and perfusion components occurs (changing toward the opposite direction) (60-62). Recently, Wáng et al. (60-62) reported that liver microperfusion could be evaluated by diffusion-derived vessel density (DDVD). The D*, f, and DDVD values measure different aspects of liver perfusion. The D* and f values may mainly measure the arteries, while DDVD may mainly measure the veins rather than the arteries. Moreover, the DDVD is not constrained by IVIM-DWI modeling. In the future, conventional IVIM-DWI parameters integrating the DDVD may improve the diagnostic performance of liver DWI (60-62).
In conclusion, the results of the present study suggest that IVIM-DWI can be used to noninvasively evaluate angiogenesis in HCC.
Funding: This work was supported by the Department of Science and Technology of Sichuan Province (No. 2016JY0105), the Medical Association of Sichuan Province (No. S20070), and the City-University Science and Technology Strategic Cooperation of Nanchong City (No. 20SXQT0324).
Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at https://qims.amegroups.com/article/view/10.21037/qims-22-271/coif). The authors have no conflicts of interest to declare.
Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). This study was approved by the Ethics Committee of Affiliated Hospital of North Sichuan Medical College. Written informed consent was obtained from all study participants.
Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
