Value of susceptibility-weighted imaging in differentiating benign from malignant portal vein thrombosis
Portal vein thrombosis (PVT) refers to complete or partial obstruction of the portal vein or its branches due to a variety of causes, including cirrhosis, malignancy, and non-hepatogenic diseases, such as splenectomy, gastrectomy, and pancreatitis (1-3). Notably, PVT can be either benign or malignant. A previous study has shown that malignant PVT is associated with hepatocellular carcinoma (HCC), which is unsuitable for surgical resection and liver transplantation (4). On the other hand, benign PVT often manifests with chronic liver disease, which can be treated with anticoagulant therapy (5). Consequently, accurate identification of the nature of PVT is imperative to determining the optimal treatment approach.
Although puncture biopsy remains the gold standard for differentiating benign from malignant PVTs, it is an invasive examination and has been associated with complications such as hemorrhage, sampling errors, and implantation metastasis. PVT can be differentiated using a variety of noninvasive techniques, including ultrasonography (6), computed tomography (CT) (7), and magnetic resonance imaging (MRI) (8,9). However, the number of studies evaluating MRI for this purpose remains limited (10). Based on our experience in daily practice, it is not always easy to distinguish benign from malignant PVTs. Therefore, a technique with high diagnostic accuracy is urgently needed to distinguish between benign and malignant PVTs.
Susceptibility-weighted imaging (SWI), an MRI technique based on T2* sequences, has been used to diagnose neurological disorders owing to its unique ability to detect intracranial iron deposition and hemorrhagic foci (11,12). Researchers have recently applied SWI technology to abdominal examinations because it is more sensitive in detecting siderotic nodules than are T2 and T2*-weighted imaging, particularly in patients with chronic liver disease or cirrhosis, and is more sensitive in detecting focal field inhomogeneity through the addition of phase information to the T2*-weighted imaging (13).
However, SWI sequences have rarely been used to diagnose PVT (14), and no study has yet compared diffusion-weighted imaging (DWI) and SWI in differentiating benign and malignant PVTs. Therefore, this study aimed to compare the diagnostic efficacy of SWI and DWI in distinguishing benign from malignant PVTs. We present the following article in accordance with the STARD reporting checklist (available at https://qims.amegroups.com/article/view/10.21037/qims-22-350/rc).
Study population and selection criteria
The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). This study was approved by the Ethics Committee of Army Medical University (Third Military Medical University; No. KY2020280), and informed consent from patients was waived. From January 2011 to April 2016, we consecutively collected clinical data from 140 patients with PVTs, including their age, gender, surgical history (such as esophagogastric sclerotherapy, splenectomy, hepatectomy, and radiofrequency ablation), the coexistence of HCC and PVT, levels of alpha-fetoprotein (AFP), and presence of splenomegaly and ascites.
The inclusion criteria were as follows: (I) PVT present in the main branch and/or segmental branch; (II) complete clinical information; (III) availability of SWI, DWI, and enhanced MRI sequences; and (IV) an MRI quality adequate for analysis.

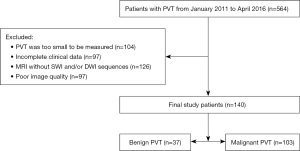

The exclusion criteria were as follows: (I) a PVT size too small for manual measurement; (II) incomplete clinical information; (III) lack of SWI and/or DWI sequences; and (IV) poor image quality.
Standard of reference for differentiating benign and malignant PVTs
The standards of reference for differentiating benign and malignant PVTs were those found in Shah et al. (15) and Catalano et al. (16). As it has been previously reported that vessel expansion of the portal vein can also be present in benign PVT (17), we did not propose to use the criterion of vessel expansion. Malignant PVT was considered if the following criteria were met and benign PVT if the criteria were not met: clear evidence of enhancement on dynamic contrast-enhanced MRI during the arterial phase as defined by enhancement on the contrast-enhanced images when compared with baseline images (≥15%).
All scans were performed on 3.0 T MRI system (Magnetom Trio, Siemens Medical Systems, Erlangen, Germany). The scans were obtained using sequences, including a single breath-hold T2-weighted imaging fast spin-echo sequence. The SWI sequence was acquired with the following parameters: flip angle =20°, repetition time/time to echo (TR/TE) =150/10 ms, a breath-hold =16–21 s repeated 3 times, field of view =380 mm × 285 mm, matrix =384 × 187 mm, slice number =30, and slice thickness =5.5 mm. DWI imaging adopted breathing-triggered single-shot echo planar imaging technology, with b values of 0, 400, and 800 s/mm2. The b values of 0 and 800 s/mm2 were used to calculate the apparent diffusion coefficient (ADC) map monoexponentially. Gd-EOB-DTPA (Gadolinium-ethoxybenzyl-diethylenetriamine-pentaacetic acid) at a dose of 0.1 mL/kg was injected through the cubital vein at a speed of 1.0 mL/s. When the contrast agent reached the lower thoracic aorta, the patient performed a breath-hold for arterial phase scanning. Portal venous phase, transitional phase, and hepatobiliary phase scans were taken after a delay of 70 s, 2–5 min, and 15 min.
All PVTs were assessed by 2 radiologists (XML and CLH with 8 and 6 years of abdominal imaging experience, respectively). Both radiologists were blinded to all patients’ clinical information, and the intensity of thrombus was determined as hypointense or hyperintense relative to the liver on DWI (b=800 s/mm2). For quantitative analysis of SWI, all PVTs were measured using signal processing in Nuclear Magnetic Resonance software (SPIN version 1751, Spintech Software, Kharkiv, Ukraine, https://spintechmri.com/research-software/) at the Siemens workstation (Syngo.via) to measure the ADC on the ADC map. Each observer drew oval regions of interest (ROIs) in the thrombus and spinal cord as large as possible (≥10 mm2) with the same slice and regions (Figures 1,2). The signal intensity (SI) values of the thrombus and spinal cord on SWI and ADC obtained from the 2 observers were measured 3 times independently, and their mean values were recorded. Lastly, the ratios of signal intensity (SIR) on SWI (SIRSWI) and ADC (SIRADC) were calculated using the following formula: SIthrombus/SIspinalcord. Care was taken to avoid obvious artifacts, such as cerebrospinal fluid pulsation artifacts, respiratory motion artifacts, and magnetic susceptibility artifacts.
Statistical analyses were performed using SPSS 22.0 software (IBM Corp., Armonk, NY, USA). Variables with normal distributions are expressed as (), and pairwise comparisons were performed using the Student’s t test. Nonnormally distributed continuous variables were analyzed using the Mann-Whitney test, while categorical variables were analyzed using the χ2-test. The statistical significance level was defined at P<0.05. Receiver operating characteristic (ROC) curves were used to evaluate the diagnostic efficacy, and the point corresponding to the maximum Youden index (sensitivity + specificity − 1) was selected as the cutoff value. Comparison of the diagnostic efficiency of ROC curves was performed using the Delong test. Interobserver agreement for the intensity of thrombus was determined by calculating κ statistics as follows: κ=0–0.20, slight agreement; κ=0.21–0.40, fair agreement; κ=0.41–0.60, moderate agreement; κ=0.61–0.80, substantial agreement; and κ=0.81–1.00, almost perfect agreement.

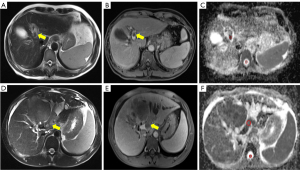

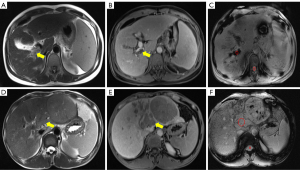

There were 37 benign and 103 malignant PVTs (124 males and 16 females), and benign and malignant PVTs co-occurred in 9 patients (Figure 3). The mean age of the cohort was 49.5±11.2 years. There were statistically significant differences with regard to previous treatment history, AFP level, and the presence of combined HCC between benign and malignant PVTs (P<0.05; Table 1).
|Variable||Benign, n (%)||Malignant, n (%)||P value|
|Male||32 (86.5)||92 (89.3)|
|Female||5 (13.5)||11 (10.7)|
|Combined liver cirrhosis||0.141|
|No||7 (18.9)||10 (9.7)|
|Yes||30 (81.1)||93 (90.3)|
|Combined viral infection||0.790|
|No||5 (13.5)||18 (17.5)|
|HBV||32 (86.5)||83 (80.6)|
|HCV||0 (0.0)||2 (1.9)|
|Negative||22 (59.5)||16 (15.5)|
|Positive||15 (40.5)||87 (84.5)|
|Absence||18 (48.6)||0 (0.0)|
|Presence||19 (51.4)||103 (100.0)|
|No||9 (24.3)||72 (69.9)|
|Yes||28 (75.7)||31 (30.1)|
|No||15 (40.5)||24 (23.3)|
|Yes||22 (59.5)||79 (76.7)|
|No||16 (43.2)||53 (51.5)|
|Yes||21 (56.8)||50 (48.5)|
AFP, alpha-fetoprotein; HBV, hepatitis B virus; HCV, hepatitis C virus; HCC, hepatocellular carcinoma.
For the evaluation of PVT signal, the result of interobserver agreement analysis indicated substantial agreement, intraclass correlation coefficients (ICCs) of signals evaluated by two radiologists on SWI and DWI were 0.75 and 0.65. On SWI and DWI, 100.0% (36/36) and 80.6% (29/36) of benign PVTs were hypointense, respectively. For malignant PVTs on SWI and DWI, 99.0% (103/104) and 89.4% (93/104) were hyperintense, respectively.

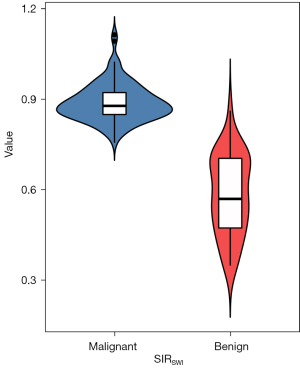

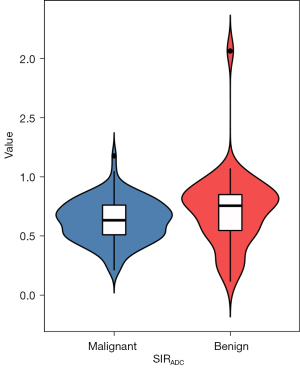

The mean SIRSWI of benign and malignant PVTs were 0.58±0.13 and 0.88±0.06 (Figure 4), while the mean SIRADC of benign and malignant PVTs were 0.72±0.32 and 0.62±0.17 (Figure 5), respectively. There were significant differences between benign and malignant PVTs on SWI [t=18.651; 95% confidence interval (CI): 0.273–0.337; P<0.001] and DWI (t=–2.138; 95% CI: −0.179–0.007; P=0.034). The area under the ROC curve (AUROC) for SIRSWI (0.990; 95% CI: 0.971–1.000) was significantly higher than that for SIRADC (0.619; 95% CI: 0.500–0.737; P<0.001; Figure 6). The SIRSWI had a sensitivity of 100.0% and a specificity of 97.3%, with a cutoff value of 0.749, while the SIRADC had a sensitivity of 45.9% and specificity of 83.3%, with a cutoff value of 0.791.
Benign PVT is initially asymptomatic in the early phase; however, it potentially induces portal hypertension, which increases postoperative morbidity and mortality (18). Malignant PVT is associated with tumor staging, surgical approach, and prognosis (19). This study shows that benign PVT is more likely to occur in patients with endoscopic injection sclerotherapy (EIS), splenectomy, hepatectomy, and radiofrequency ablation (P<0.05). These can lead to the development of benign PVT via portal venous endothelial injury, with increased portal vein pressure then causing slow or turbulent blood flow to pool in the portal venous system (20-22). Malignant PVTs are more likely to occur in patients with HCC and are caused directly by tumor invasion. Due to the different treatments and prognosis of benign and malignant PVTs, preoperative differentiation is of great importance.
Use of multimodal MRI, especially the ADC parameter, can help to distinguish between benign and malignant PVTs. Aumann et al. (23) reported that the ADC value can effectively differentiate benign and malignant PVTs, with sensitivity and specificity values of 80.0% and 72.7%, respectively. However, Ahn et al. (24) reported an ADC value with a sensitivity of 22.2%, owing to wide range and considerable overlap of ADC, which is consistent with our result with a lower sensitivity (45.9%) for differentiating benign and malignant PVTs. The reason for this may be that the ADC value is influenced by the staging of thrombus, and benign PVT might have a low ADC similar to malignant PVT.
SWI involves nonionizing radiation and contrast-free technology, making it suitable for repeated examinations. To date, only a single study has examined the application value of SWI in distinguishing benign and malignant PVTs (14). However, this study had a small sample size (n=42), made no comparison with other MRI parameters, and calculated the phase values over the entire HCC, which might have introduced measurement error because of the significant heterogeneity of HCC. To our knowledge, a comparison of SWI and DWI for differentiating benign from malignant PVTs has not been performed previously. By comparing SIRSWI and SIRADC, our research shows that the SWI sequence can effectively distinguish benign and malignant PVTs (AUROC: 0.990), with a cutoff value of 0.749, which is significantly superior to the ADC parameter (AUROC: 0.619; P<0.001). These results suggest that SWI is a promising tool that can be used to differentiate benign from malignant PVTs. This may be attributed to the higher sensitivity of SWI to PVT components.
SWI is an MRI sequence sensitive to compounds that distort the local magnetic field (e.g., calcium and iron) (25). The paramagnetic substances (e.g., deoxyhemoglobin and hemosiderin) increase the difference of magnetic susceptibility and shorten the T2* effect, and show low intensity on SWI (26). Benign PVT is characterized by high concentrations of paramagnetic substances, including deoxyhemoglobin and hemosiderin, so it appears as low intensity on SWI (14). However, malignant PVT is commonly caused by HCC invasion, which is mainly composed of tumor cells; however, malignant PVT is usually caused by the invasion of HCC, which is mainly composed of tumor cells. Like HCC, malignant PVT also undergoes deionization, and shows high signal on SWI (27,28).
This study had some limitations. First, as our study was single-center and retrospective in design, we lack external validation data. Second, we did not compare the efficacy of SWI and CT in differentiating benign and malignant PVTs, and so we will collect CT data in the future to verify the value of the 2 techniques in differentiating benign and malignant PVTs. Third, the ROI was manually contoured, and the SI obtained does not accurately reflect the entire PVT. Finally, the SI of the PVTs and HCC lesions in the same patients was not compared on SWI and ADC sequences.

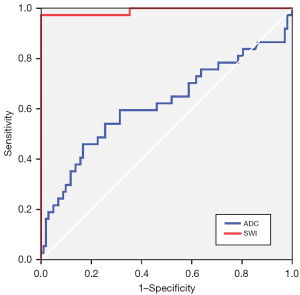

In conclusion, SWI is noninvasive technique that uses nonionizing radiation, and its diagnostic performance is comparable or superior to that of DWI in the differentiation of benign and malignant PVTs.
