A radiomics model based on aortic computed tomography angiography: the impact on predicting the prognosis of patients with aortic intramural hematoma (IMH)

Yan Ding1, Chen Zhang1, Wenhui Wu2, Junzhou Pu2, Xinghan Zhao1, Hongbo Zhang1, Lei Zhao3, Paul Schoenhagen4, Siyun Liu5, Xiaohai Ma1

1Department of Interventional Diagnosis and Treatment, Beijing Anzhen Hospital, Capital Medical University, Beijing, China; 2Interventional Center of Valvular Heart Disease, Beijing Anzhen Hospital, Capital Medical University, Beijing, China; 3Department of Radiology, Beijing Anzhen Hospital, Capital Medical University, Beijing, China; 4Cardiovascular Imaging, Miller Pavilion Desk J1-4, Cleveland Clinic, Cleveland, OH, USA; 5GE Healthcare, Beijing, China

Contributions: (I) Conception and design: Y Ding, C Zhang, J Pu, H Zhang; (II) Administrative support: X Ma; (III) Provision of study materials or patients: X Ma, W Wu; (IV) Collection and assembly of data: Y Ding, L Zhao, X Zhao; (V) Data analysis and interpretation: Y Ding, X Zhao, S Liu; (VI) Manuscript writing: All authors; (VII) Final approval of manuscript: All authors.

Correspondence to: Xiaohai Ma. Department of Interventional Diagnosis and Treatment, Beijing Anzhen Hospital, Capital Medical University, No. 2 Anzhen Road, Chaoyang District, Beijing 100029, China. Email: maxi8238@yahoo.com.

Background: The prognosis of aortic intramural hematoma (IMH) is unpredictable, but computed tomography angiography (CTA) plays an important role of high diagnostic performance in the initial diagnosis and during follow-up of patients. In this study, we investigated the value of a radiomics model based on aortic CTA for predicting the prognosis of patients with medically treated IMH.

Method: A total of 120 patients with IMH were enrolled in this study. The follow-up duration ranged from 32 to 1,346 days (median 232 days). Progression of these patients was classified as follows: destabilization, which refers to deterioration in the aortic condition, including significant increases in the thickness of the IMH, the progression of IMH to a penetrating aortic ulcer (PAU), aortic dissection (AD), or rupture; or stabilization, which refers to an unchanged appearance or a decrease in the size or disappearance of the IMH. The patients were divided into a training cohort (n=84) and a validation cohort (n=36). Six different machine learning classifiers were applied: random forest (RF), K-nearest neighbor (KNN), Gaussian Naive Bayes, decision tree, logistic regression, and support vector machine (SVM). The clinical-radiomics combined nomogram model was established by multivariate logistic regression. The area under the receiver operating characteristic (ROC) curve (AUC) was implemented to evaluate the discrimination performance of the models. The calibration curves and Hosmer-Lemeshow test were used for evaluating model calibration. DeLong’s test was performed to compare the AUC performance of models.

Results: Among all of the patients, 60 patients showed destabilization and 60 patients remained stable. A total of 12 radiomic features were retained after application of the least absolute shrinkage and selection operator (LASSO). These features were used for the machine learning model construction. The SVM-radial basis function (SVM-RBF) model obtained the best performance with an AUC of 0.765 (95% CI, 0.593–0.906). In the validation cohort, the combined clinical-radiomics model [AUC =0.787; 95% confidence interval (CI), 0.619–0.923] showed a significantly higher performance than did the clinical model (AUC =0.596; 95% CI, 0.413–0.796; P=0.021) and had a similar performance to the radiomics model (AUC =0.765; 95% CI, 0.589–0.906; P=0.672).

Conclusions: A quantitative nomogram based on radiomic features of CTA images can be used to predict disease progression in patients with IMH and may help improve clinical decision-making.

Keywords: Radiomics; aortic intramural hematoma (aortic IMH); nomogram; computed tomography angiography (CTA)

Submitted May 14, 2022. Accepted for publication Nov 16, 2022. Published online Dec 06 2022.

doi: 10.21037/qims-22-480


Aortic intramural hematoma (IMH) is a type of acute aortic syndrome characterized by the absence of an obvious intimal defect or direct communication between the true and false lumens (1). It remains unclear if an IMH is caused by vasa vasorum rupture in the aortic wall or by small intimal tears (2). Several imaging studies have demonstrated subtle intimal tears in patients with IMH (3), with other research showing these intimal tears can be confirmed by surgeries (4).

Computed tomography angiography (CTA) plays an important role of high diagnostic performance in the initial diagnosis and follow-up of patients. The prognosis of IMH is unpredictable. Although stabilization or regression are the outcomes of many patients with IMH, progression to aortic dissection (AD), aneurysm, and even rupture also frequently occur in these patients (5). Management of IMH is further dependent on several morphologic features that may be recognized with CTA imaging (6). Currently, the risk stratification of patients with acute IMH is mainly based on their symptoms and imaging characteristics. However, its efficacy in identifying patients with poor prognoses is not satisfactory.

As an advanced image analysis technique, the radiomics-based method has been extensively studied in the differential diagnosis and prognosis of oncologic patients (7). It has also been proposed as one of the investigative tools in cardiovascular imaging research, including for identifying coronary plaques (8,9), characterizing perivascular fat in cardiac risk prediction (10), exploring the pathophysiology of atherosclerosis (11), and predicting acute coronary syndrome (12). CT-based radiomics was also demonstrated to be a screening tool for AD (13,14). However, evidence for the value of radiomics methods for the prediction of prognosis in patients with IMH is lacking.

Therefore, this study aimed to investigate the value of CT-based radiomics in predicting the natural history of patients with IMH. The radiomics method was further combined with traditional clinical factors to evaluate whether its predictive performance could be improved. We present the following article in accordance with the TRIPOD reporting checklist (available at https://qims.amegroups.com/article/view/10.21037/qims-22-480/rc).



The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). The study was approved by the local institutional ethics committee (Beijing Anzhen Hospital Ethics Committee), and individual consent for this retrospective analysis was waived. This retrospective analysis of anonymous data was approved by the institutional review board of Beijing Anzhen Hospital. The entire cohort dataset was obtained by reviewing medical records at Beijing Anzhen Hospital between August 2015 and December 2020 to select cases diagnosed as IMH. Patients were included: if (I) data were obtained fewer than 14 days from onset, (II) aortic CTA was performed in Beijing Anzhen Hospital during the acute stage, and (III) the initial treatment was medical therapy. Patients were excluded from the current study if (I) they were aged below 18 years; (II) their diagnosis was complicated with AD, aortic aneurysm, arteritis, or Marfan syndrome; (III) they had traumatic or iatrogenic IMH; (IV) they were not followed up; and (V) their clinical data were incomplete or contained poor imaging quality. The diagnostic criteria of IMH were aortic wall thickening greater than 5mm, a round or crescent shape, and no contrast-enhanced false lumen (1). Finally, 120 patients selected from cases fulfilled the criteria and were randomly divided at a ratio of 7:3 into a training cohort (n=84) and a validation cohort (n=36). Figure 1 shows the patient recruitment pathway. Patients were hospitalized and underwent continuous monitoring of vital signs with medication to control their heart rate, hypertension, and other symptoms. The median follow-up duration was 232 days (range, 32–1,346 days), and aortic CTA follow-up was completed in all patients. Progression of these patients was classified as follows: (I) destabilization, referring to deterioration in the aortic condition, including significant increases in the thickness of the IMH, the progression of IMH to a penetrating aortic ulcer (PAU), the progression to AD, or rupture; or (II) stabilization, referring to an unchanged appearance or decrease in the size or disappearance of the IMH (15).

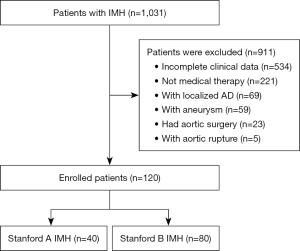

Figure 1 Flowchart depicting the enrollment of the patients. IMH, intramural hematoma; AD, aortic dissection.

CT image acquisition

An electrocardiography-gated contrast-enhanced multidetector CT scan was performed with a 256-slice CT scanner (Revolution; GE Healthcare, Milwaukee, WI, USA), a 320-slice CT scanner (Aquilion One; Toshiba Medical Systems, Tokyo, Japan), or a second-generation 128-slice dual-source CT scanner (Somatom Definition Flash; Siemens Healthcare, Erlangen, Germany). The contrast material was injected into an antecubital vein (60–90 mL at 3–5 mL/s). Scanning parameters were 100–120 kVp and 300–680 mAs. The density of the ascending aorta was monitored after the injection of the contrast medium. CT data acquisition was initiated when the density in the ascending aorta was greater than 200 Hounsfield units. The axial image reconstruction parameters were a 512×512 matrix and a slice thickness and interval of 1 mm. Axial and multiplanar reformations (MPR), maximum intensity projection, and volume-rendered images of the aorta were produced.

Evaluation of CT characteristics

All the clinical data, including as age and sex, were obtained by reviewing the medical records, with blinding of participants and personnel. All CT images were retrieved from the institutional picture archiving and communication systems (PACS) and saved in Digital Imaging and Communications in Medicine (DICOM) format. All CT scans were reviewed by 2 radiologists with 5 (Ding; reader 1) and 8 years (Zhao; reader 2) of experience in aortic CTA. In cases of disagreement, images were reviewed together by both readers to adjudicate the result. They recorded the Stanford type, maximal hematoma thickness (MHT), maximal aortic diameter (MAD), ulcer-like projection (ULP), intramural blood pool (IBP), aortic atherosclerosis, pleural effusion, and pericardial effusion. MHT and MAD were measured at the thickest area of the hematoma, and ULP was defined as a localized blood-filled pouch protruding into the hematoma of the aortic wall, with a wide communicating orifice >3 mm (16). ULP is a localized contrast medium-filled pool inside IMH appearing on postcontrast CT images with no communication between the contrast medium-filled pool and the true lumen. Detailed information is shown in Figure S1.

Radiomics analysis

The region of interest (ROI) was manually drawn on the transverse axial CT images using the ITK-SNAP software (Version 3.8.0, www.itksnap.org) for segmentation. To correct the variability from parameters related to voxel size, images were resampled to 1 mm × 1 mm × 1 mm using linear interpolation (17). The DICOM format file was saved in neuroimaging informatics technology initiative (NIFTI) format. First, the aorta and the hematoma were labeled as “Label1”, and then the transparency of Label1 was adjusted so that the lumen of the aorta could be clearly displayed. The aortic lumen was covered by Label2 on the basis of Label1, so every sample with Label1 on it covered with Label2. Finally, the overlap area of Label1 and Label2 was removed, and only the hematoma outside the aortic lumen was preserved (Figure S2). After segmentation was completed on the transverse axial images, the target region was also checked and corrected on the coronal and sagittal images. The segmentation was accomplished by reader 1. To assess the segmentation availability, the image segmentation was examined by reader 2. If the ROI was questioned and was resegmented after the 2 radiologists reached a consensus.

Radiomic features were extracted using Artificial Intelligence Kit Software version 3.2.0 (GE Healthcare) back ended with Pyradiomics version 3.0.1 (https://pyradiomics.readthedocs.io/en/latest/).

The extracted 1,316 radiomics features were categorized into 3 groups: (I) first-order features, including 18 intensity statistics and 14 shape features; (II) 75 multidimensional texture features, including 24 gray level co-occurrence matrix (GLCM), 16 gray level size zone matrix (GLSZM), 16 gray level run length matrix (GLRLM), 14 gray level dependence matrix (GLDM), and 5 neighboring gray tone difference matrix (NGTDM) features; and (III) 1,209 transformed first-order and textural features, including 744 wavelet-decomposed features in low (L) or high (H) frequency channels (LHL, LLH, HHH, HLH, HLL, HHL, LHH, and LLL), 186 Laplacian of Gaussian (LoG) filtered features with a sigma of 2.0 and 3.0 mm, and 279 3D local binary pattern (LBP) filtered texture features with 2-level spherical harmonics and an icosphere with a radius of 1 and 1 subdivision.

First, the intraclass correlation coefficient (ICC) values of both intra- and interobserver agreement analyses were calculated. Second, the univariate difference analysis between the destabilization and nonworsening groups was conducted using an independent 2-sample t-test or Mann-Whitney test, and the features with a significant difference (P<0.05) were retained. Third, correlation analysis with a cut-off value of 0.8 was carried out to eliminate redundant and irrelevant features. Finally, the least absolute shrinkage and selection operator (LASSO) logistic regression with maximum area under the curve (AUC) criteria was conducted to select the optimized subset of features to construct the final model.

Six machine learning-based algorithms, including random forest (RF), K-nearest neighbor (KNN), Gaussian Naive Bayes, decision tree, logistic regression, and support vector machine (SVM) were used to establish radiomics models based on selected features. SVM used 2 different kernel functions: linear kernel function and radial basis function. Area under the receiver operator characteristic (ROC) curve (AUC) was used to validate the performance of the developed radiomics models in both the training and validation groups. The best predictive model was determined, and the probability output by the model was recorded as a radiomics score (Radscore).

Predictive nomogram building and diagnostic performance validation

The independent risk factors among all clinical variables were assessed using univariate and multivariate logistic regression analyses. We used the multivariable logistic regression analysis to construct the clinical model based on the clinical factors with P values <0.05 in the univariate analyses. A radiomics nomogram combining the radiomics signature (Radscore) and clinical risk factors was finally developed. The ROC analysis was conducted to evaluate the model’s discrimination performance, and DeLong’s test was used to compare whether the model’s AUC was different between the paired models. The calibration of the combined nomogram was evaluated with calibration curve analysis and the Hosmer-Lemeshow test. Decision curve analysis was conducted to estimate the clinical usefulness of the nomogram by quantifying the net benefits based on the threshold probabilities.

Statistical analysis

All statistical analyses for the present study were performed with R (version 4.1.1; www.r-project.org; The R Project for Statistical Computing). The statistical significance for all 2-sided tests was set at P<0.05. The continuous variables with normal distribution are described as mean ± standard deviation (SD), and the statistical difference between 2 groups was tested using an independent 2-sample t-test. The continuous variables without normal distribution are described as median ± interquartile range (IQR), and the statistical difference between 2 groups was tested using the Mann-Whitney test. The statistical difference for categorical variables was tested using the chi-square test or Fisher exact test. ICC was used to quantify interobserver and intraobserver reproducibility. The cut-off value for the ROC curves was determined at the maximized Youden index in the training group and applied in the validation dataset, which was used to derive the sensitivity, specificity, and accuracy.


Clinical characteristics

The 120 patients (90 males, 30 females; mean age 57.96±9.67 years; range 34–79 years) included 60 cases of destabilization and 60 cases of stabilized IMH. All patients were randomly assigned to a training cohort (n=84) or a validation cohort (n=36). Table 1 shows the clinical characteristics of patients in the training cohort and validation cohort. There were no significant differences in clinical features between the training and validation groups except Stanford type and pericardial effusion (Figure S3 shows an IMH evolution to dissection over a 110-day period).

Table 1

Clinical features of patients in the training and validation cohorts

Feature Training cohort, n=84 Validation cohort, n=36 t/χ2/U P value
Destabilization, n (%) 42 (50.00) 18 (50.00) 0 1
Stanford A, n (%) 23 (27.38) 17 (47.22) 4.46 0.035
Age (years) 57.48±9.89a 59.14±9.18 –0.862 0.391
Male, n (%) 66 (78.57) 24 (66.67) 1.91 0.168
BMI (kg/m2) 25.0±2.64 25.87±3.13 –1.548 0.124
Hypertension, n (%) 67 (79.76) 29 (80.56) 0.01 0.921
Hyperlipidemia, n (%) 19 (22.62) 7 (19.44) 0.15 0.70
Diabetes, n (%) 8 (9.52) 2 (5.56) 0.515 0.721
Smoking, n (%) 53 (63.10) 20 (55.56) 0.601 0.438
CTA images
   MHT (mm) 10.785 (8.353,13.26)b 10.55 (8.828,13.408) 1453.5 0.738
   MAD (mm) 38.035 (35.108,45.105) 40.66 (36.623,48.333) 1272 0.169
   Branch involvement, n (%) 40 (47.62) 24 (66.67) 3.673 0.055
   ULP, n (%) 57 (67.86) 21 (58.33) 1.005 0.316
   IBP, n (%) 16 (19.05) 5 (13.89) 0.465 0.496
   Pericardial effusion, n (%) 5 (5.95) 10 (27.78) 10.884 0.001
   Pleural effusion, n (%) 18 (21.43) 10 (27.78) 0.568 0.451
   Atherosclerosis, n (%) 47 (55.95) 20 (55.56) 0.002 0.968
Lab examination
   D-dimer >500 μg/L 48 (57.14) 23 (63.89) 0.475 0.491
   WBC (×109/L) 10.92±3.42 11.05±3.33 0.199 0.843

Two-sample t-test or Mann-Whitney test was used for continuous variables; χ2 test or Fisher exact test was used for categorical variables. a, continuous variables with a normal distribution are described as mean ± standard deviation (SD); b, the continuous variables without a normal distribution are described as median ± interquartile range (IQR). BMI, body mass index; CTA, computed tomography angiography; MHT, maximal hematoma thickness; MAD, maximal aortic diameter; ULP, ulcer-like projection; IBP, intramural blood pool; WBC, white blood cell.

Branch involvement, ULP, and white blood cell (WBC) count were identified as clinical risk factors during univariate logistic regression analysis and further involved in multivariate logistic regression analysis (Table 2). A clinical model based on these 3 features was developed, and the AUC was 0.715 (95% CI, 0.602–0.827) in the training cohort and 0.596 (95% CI, 0.413–0.796) in the validation cohort.

Table 2

Univariate and multivariate logistic regression analysis in the training cohort

Feature Univariate Multivariate
Odds ratio (95% CI) P value Odds ratio (95% CI) P value
Stanford A 1.434 (0.548–3.841) 0.464
Age (years) 1.02 (0.976–1.067) 0.376
Male 1.328 (0.466–3.884) 0.595
BMI ≥25 kg/m2 0.417 (0.17–0.993) 0.051
Hypertension 0.863 (0.291–2.52) 0.786
Diabetes 1.757 (0.402–9.054) 0.462
Hyperlipidemia 2 (0.712–5.987) 0.197
Smoking 1.108 (0.455–2.706) 0.821
   Branch involvement 2.647 (1.109–6.52) 0.031 2.394 (0.931–6.338) 0.072
   ULP 3.511 (1.353–9.794) 0.012 2.471 (0.876–7.274) 0.091
   IBP 1 (0.332–3.016) >0.999
   MAD 0.991 (0.934–1.051) 0.767
   MHT 1.03 (0.898–1.184) 0.673
   Pericardial effusion 4.316 (0.605–86.453) 0.2
   Pleural effusion 1.328 (0.466–3.884) 0.595
   Atherosclerosis 1.337 (0.564–3.198) 0.51
Lab examination
   D-dimer >500 μg/L 2.2 (0.919–5.41) 0.08
   WBC (×109/L) 0.839 (0.708–0.973) 0.011 0.839 (0.708–0.973) 0.029

BMI, body mass index; CTA, computed tomography angiography; ULP, ulcer-like projection; IBP, intramural blood pool; MAD, maximal aortic diameter; MHT, maximal hematoma thickness; WBC, white blood cell; CI, confidence interval.

Machine learning models construction

A total of 1,316 features were extracted from each ROI. Of these, 694 features with ICCs higher than 0.80 in the interobserver and the intraobserver analysis were selected. There were 170 features retained after univariate analysis and 42 features retained after correlation analysis. Finally, 12 optimized radiomics features were selected using LASSO in the training cohort (Figure 2). Figure 3 shows the ROC curves of machine learning models in the training and validation cohorts. In the validation cohort, SVM-radial basis function (SVM-RBF) was the best model with an AUC of 0.765 (95% CI, 0.593–0.906). The SVM-RBF model was used to calculate the radiomics signature Radscore.

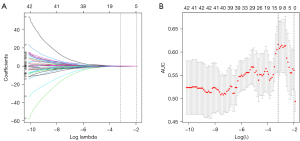

Figure 2 Feature selection using the LASSO logistic regression. (A) The variation of the radiomics coefficients with log(λ) and the dotted line indicate the selected optimal log(λ) value (–3.179) with 1 standard error. (B) The radiomics feature screening using LASSO regression with the maximum AUC criteria. The dashed lines indicate the selected optimal log(λ) values (–3.179) with 1 standard error. LASSO, least absolute shrinkage and selection operator; AUC, area under curve.
Figure 3 The ROCs of 6 machine learning models in the training (A) and validation (B) cohorts. The AUC of SVM-RBF was higher than that of the other models in the validation cohort. ROC, receiver operating characteristic curve; AUC, area under curve; SVM, support vector machine; KNN, K-nearest neighbor; RBF, radial basis function.

Nomogram development and performance validation

A combined nomogram based on clinical features and the radiomics signature Radscore was developed (Figure 4A). The nomogram incorporated branches, ULP, WBC, and Radscore. A score for each patient was obtained by drawing a vertical line to the top scale and reading off the variable’s score for each individual. The total score for an individual was obtained by summing up all the individual variable scores. A scale for the total score is given at the bottom of the nomogram. The nomogram had the best predictive performance, with an AUC of 0.811 (95% CI, 0.706–0.897) in the training cohort. The accuracy, sensitivity, and specificity were 76.2%, 69.0%, and 83.3%, respectively. In the validation cohort, the nomogram also performed well, with an AUC of 0.787 (95% CI, 0.619–0.923), and the accuracy, sensitivity, and specificity were 66.7%, 61.1%, and 72.2%, respectively (Figure 4B,4C). The results of DeLong’s test are summarized in Table 3. The AUC values of the combined nomogram model were significantly higher than those of the clinical model in both the raining (P=0.034) and validation cohorts (P=0.022), but they were not significantly higher than those of the radiomics model. The calibration curve with Hosmer-Lemeshow test was used to evaluate the calibration performance of the nomogram. It indicated no significant differences between the predicted and actual values in the training and validation cohorts (P=0.723 and P=0.224; Figure 5A,5B). Decision curve analysis was showed in Figure 5C.

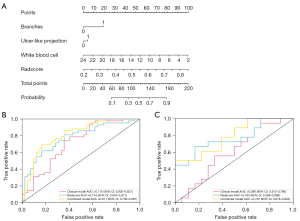

Figure 4 A combined nomogram was developed in the training cohort based on the clinical features and radiomics score (Radscore) (A). The ROC curves of the clinical, radiomics, and clinical-radiomics combined models in the training cohort (B) and validation cohort (C). The AUC of the combined nomogram models was higher than that of the clinical model and radiomic model in the training and validation cohorts. ROC, receiver operating characteristic curve; AUC, area under curve.

Table 3

The results of DeLong’s test

Model Model P value
Training cohort
   Clinical model Radscore 0.351
   Clinical model Combined model 0.034
   Radscore Combined model 0.169
Validation cohort
   Clinical model Radscore 0.123
   Clinical model Combined model 0.022
Figure 5 Calibration curves of the nomogram for the training cohort (A) and validation cohort (B), which show the relationship between the predicted value and the actual value. The closer the dotted line is to the solid 45-degree line (the gray line), the better the predictive power for the model. The black line is the logistic calibration by bootstrapping (B=1,000 repetitions). In the decision curve analysis for 3 models (C), the y-axis represents the net benefit, and the x-axis represents the threshold probability. The black line “None” shows the assumption that no patients’ conditions worsened, while the gray line “All” shows the assumption that all the patients’ conditions worsened. Within the same range of threshold probability, the higher the decision curves of the model are, the more clinical net benefit could have resulted from the corresponding model.


The present study demonstrated the value of a radiomics-clinical model in predicting the prognosis of patients with medically treated IMH. First, this study independently evaluated the clinical factors and radiomic features of the aortic CTA. Then, a combined nomogram based on independent clinical factors and Radscore was established. The results showed that the nomogram could predict the prognosis of these patients. To our knowledge, this study is the first analysis using radiomics features and the first to build a nomogram combining clinical factors and radiomics features to predict the progression of IMH.

Prior studies identified the presence of ULP/focal intimal disruptions (FID) diagnosed in the acute phase to be related to poor prognosis (18-20). This finding was detected in more than 50% of patients in previous reports (4,21,22). IMH involving the aortic wall surrounding and extending into the ostia of the arch and visceral branch vessel may lead to luminal narrowing. Secondary insufficient perfusion of distal organs may result in adverse consequences. Research on branch involvements has mostly focused on patients with AD. Hashimoto et al. (23) found that branch involvement had a significant impact on short-term prognosis. However, there is still a lack of research on the involvement of aortic branches in patients with IMH, and thus its relationship to the prognosis of patients requires further research. Some aortic conditions are associated with “inflammatory-cell-mediated destructive remodeling” pathways (24). Higher WBC counts may be indirect evidence of these actions. Fan et al. (25) and Chen et al. (26) revealed WBC counts to be associated with death in the short-term in patients with AD.

Radiomics is a promising tool in medical imaging that can extract quantitative and reproducible information. It has revealed direct links between tissue imaging phenotyping and tissue biology, with important clinical implications (27). In this study, the radiomics features were extracted from original CT images and images derived from several filters. The filtration process could reduce the effect of photon noise and enhance biological heterogeneity (28). Wavelet features accounted for a large proportion of the extracted radiomic features in the current study. Specifically, 8 of the 12 optimized radiomics features were wavelet features, and the other 4 features were 2 LoG filtered features with a sigma of 3.0 mm and 2 3D LBP filtered features. This study calculated first-order and 5 different higher-order textural parameters, which were GLCM, GLSZM, GLRLM, GLDM, and NGTDM. The higher first-order intensity, kurtosis, and large dependence high gray level emphasis of the GLDM matrix showed a higher risk of destabilization in IMH, which might reflect a complex, widespread high attenuation within the hematoma. This combined application of different matrix features could give a more accurate description of the heterogeneous characteristics of the lesion in different dimensions.

Both in the training and validation cohorts, AUCs of the nomogram were superior to those of the clinical models and comparable to those of the radiomics models. In this study, besides the traditional clinical risk factor models, we proposed a radiomics model and a clinical-radiomics combined nomogram model to provide a better predictor of the prognosis of IMH. The radiomics model and clinical-radiomics combined nomogram model significantly improved the prediction efficacy. It was better than the radiomics model, although the improvement in this efficacy was not statistically significant. We suggest this improvement might have been partly caused by the selection and the sample size of the retrospective cohort. In our center, most patients with large MHT, MAD, PAU, and other serious signs received surgery or endovascular therapy at baseline and were excluded from this study. In the future, multicenter and large-sample research will be conducted to obtain greater models. The current result might provide more evidence about the CT-based radiomics features in describing IMH.

In general, logistic regression, RF, and SVM are suitable for small-sample data and binary-class tasks (29). SVM is the most commonly used algorithm (30). However, there are limited studies on the analysis of aortic disease using radiomics and machine learning methods. Therefore, in this study, we used 6 machine learning algorithms to build a radiomics model to find the best machine learning algorithm for IMH. The SVM-RBF model appeared best suited to building the radiomics model for predicting the prognosis of patients with IMH treated by medical therapy.

In summary, radiomics is a promising interdisciplinary approach to medicine and computer science, but some characteristics restrict its extensive development. First, the effectiveness of radiomics depends on a great quantity of medical data, including imaging and clinical data, and requires a considerable amount of data processing. Multicenter and multiple scanners studies are necessary for radiomics to enable analyses with greater statistical power and generalizability. Therefore, the acquisition and harmonization of medical data are crucial to radiomics. Approaches have been developed to address the problem of harmonization, such as ComBat (31). Second, the traditional segmentation of the ROI relies on manual segmentation, which consumes a high amount of energy resources and time and requires certain expertise. Although many artificial intelligence algorithms have been applied to segmentation, the accuracy of manual segmentation is still the highest.

There are several limitations to this study. First, this study was a single-center retrospective study with a relatively small sample size, and thus bias might have been introduced. Therefore, in future research, multicenter, large-sample-size validation is needed. Second, images included in this study were not obtained with the same CT equipment although image preprocessing was conducted to eliminate the differences as much as possible.

In conclusion, a quantitative nomogram based on clinical factors and radiomic features of CT imaging was demonstrated to improve the prediction of the prognosis of patients with medically treated IMH. The model can serve as a potential decision-support tool to assist clinicians in evaluating the conditions of patients and facilitate appropriate management in a timely manner.


Funding: This work was supported by the National Natural Science Foundation of China (No. 82071875), the Beijing Natural Science Foundation (No. 7212025), and the Beijing Natural Science Foundation (No. 7222302).


Reporting Checklist: The authors have completed the TRIPOD reporting checklist. Available at https://qims.amegroups.com/article/view/10.21037/qims-22-480/rc

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at https://qims.amegroups.com/article/view/10.21037/qims-22-480/coif). SL is an employee of GE Healthcare (China). The other authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. This retrospective cohort study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). The study was approved by the institutional ethics committee of Beijing Anzhen Hospital, and individual consent for this retrospective analysis was waived.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
