Spontaneous cervical epidural haematoma—diagnosis as unexpected finding by CT: case series
Letter to the Editor

Spontaneous cervical epidural haematoma—diagnosis as unexpected finding by CT: case series

Adil Naeem1, Julian Hanson1, John Freebody1, Anna Schutz2, Bill O’Brien2

1Department of Radiology, 2Department of Neurology, Gosford Hospital, Gosford, Australia

Correspondence to: Dr. Adil Naeem, MBChB BSc (Hons). Radiology Trainee, Department of Radiology, Gosford Hospital, Gosford, NSW 2250, Australia. Email: adilnaeem@doctors.org.uk.

Submitted Aug 19, 2019. Accepted for publication Oct 11, 2019.

doi: 10.21037/qims.2019.10.06


Introduction

Spontaneous cervical epidural haematoma (SCEH) is a rare emergency condition which may mimic more common acute neurological, vascular and spinal disorders.

The clinical features are variable, which range from mild neck discomfort and radiculopathy to progressive quadriplegia. The spectrum of presentation is attributed to the speed of haematoma development and degree of compression on the cervical spinal cord (1). Early diagnosis is key to optimal management, so that patients who warrant urgent surgical decompression are identified. If missed, SCEH can result with permanent neurological deficit (2). The first imaging investigation is typically CT/CTA, performed to exclude more common entities such as arterial dissection or disc prolapse, but SCEH can be diagnosed if the relevant imaging features are sought.

In this paper we present 4 cases of SCEH initially diagnosed on CT/CTA, with subsequent MRI confirmation, and describe the radiological features and clinical outcomes.


Case 1

History

An 82-year-old male presented with acute neck pain which progressed to asymmetrical incomplete quadriparesis. He was therapeutically anticoagulated on warfarin with an initial INR of 3.2.

Imaging

CTA of the cervical and cranial arteries performed 4 h after symptom onset demonstrated no major arterial pathology. The pre-contrast study showed a hyperdense right posterolateral extradural collection from C2–C5, hyperdense to normal spinal canal content, raising suspicion for SCEH (Figure 1A). A small focus of enhancement was identified on the post-contrast study, thought to represent contained extraluminal contrast from damaged vessels (Figure 1B).

Figure 1 CT cervical spine, CTA and MRI cervical spine. (A) Sagittal CT cervical spine pre-contrast study demonstrating a posterior extradural collection, mildly hyperdense to spinal canal, extending from C2–C5 (arrows); (B) axial CTA demonstrating a small focus of enhancement, representing contained extraluminal contrast from damaged vessels (arrow); (C) axial T1 MRI showing a right posterolateral extradural collection with isointense T1 signal, consistent with an acute haematoma (arrow); (D) sagittal T2 MRI confirmed a posterior extradural collection with T2 hyperintensity (arrows).

MRI performed a further 11 h later confirmed acute SCEH, which showed T1 isointense and T2 hyperintense signal character (Figure 1C,D). The patient underwent urgent decompressive laminectomy with haematoma evacuation. Following a complicated post-operative course, he was discharged for successful rehabilitation.


Case 2

History

A 67-year-old male presented with acute neck and interscapular pain, which progressed to right upper limb weakness. He was therapeutically anticoagulated on warfarin with an INR of 3.1.

Imaging

CTA Arch COW performed 4 h after the initial presentation showed no arterial dissection (which was the provisional clinical diagnosis). Instead, posterior cervical extradural haematoma was present from C2–C5 (Figure 2A,B). Follow up MRI performed 2 h later confirmed SCEH which demonstrated T1 hypointensity and T2 heterogeneous hyperintensity (Figure 2C). The patient was urgently referred to a tertiary neurosurgical centre and underwent a decompressive laminectomy and haematoma evacuation. Resulting outcome was improvement of neurological deficit and subsequent discharge for rehabilitation.

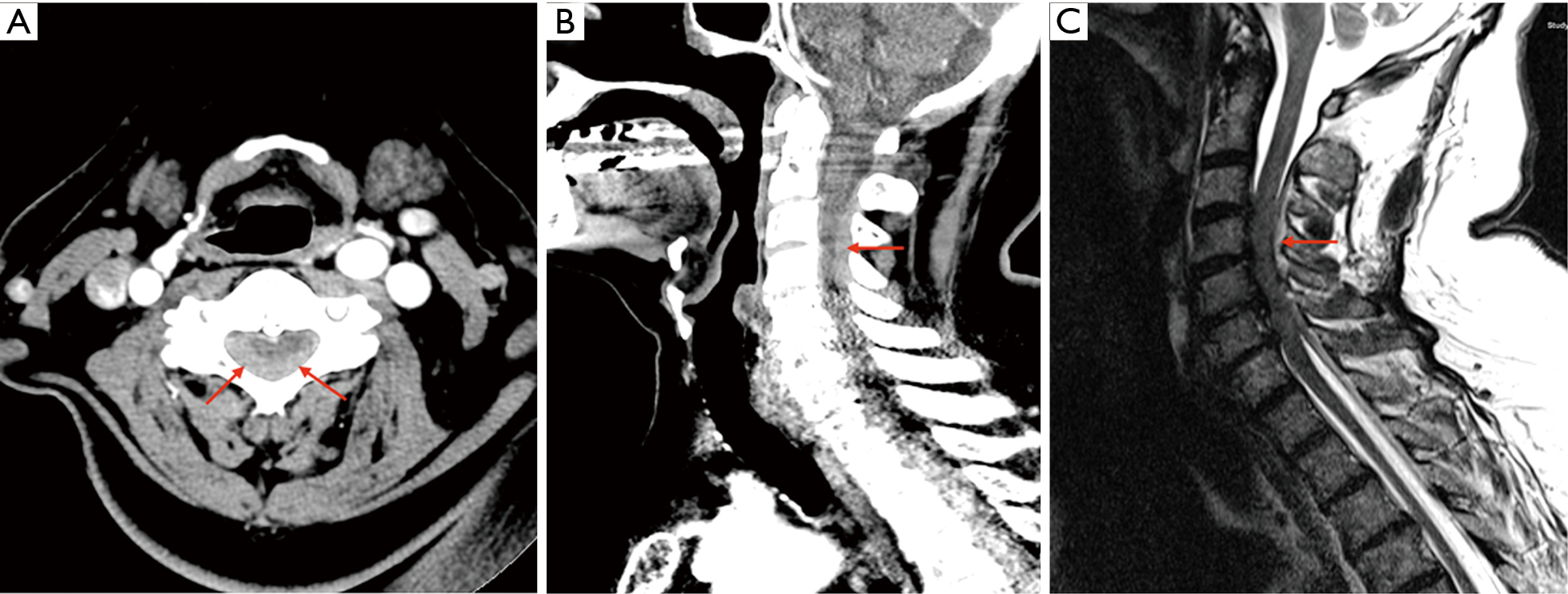

Figure 2 CTA and MRI cervical spine. (A) Axial CTA demonstrating a large extradural haematoma at C3 (arrows); (B) sagittal CTA demonstrating extradural hyperdensity extending from C2 to C5 levels (arrow); (C) sagittal T2 MRI confirmed an extradural collection with T2 hyperintensity (arrow).

Case 3

History

A 63-year-old male presented with neck and interscapular pain, which progressed to right upper limb weakness. He was taking clopidogrel only.

Imaging

CTA performed one hour after presentation demonstrated mildly hyperdense right posterior extradural collection. There was thecal effacement and cervical cord compression (Figure 3A). MRI 18 hour later confirmed SCEH with heterogenous T2 hyperintensity (Figure 3B) and homogenous T1 isointensity (Figure 3C). After discussion with the neurosurgical team, the patient was managed conservatively. A repeat MRI performed 24 h later showed substantial resolution of the haematoma, and she was discharged home with complete resolution of all neurological deficits.

Figure 3 CTA and MRI cervical spine. (A) Axial CTA demonstrating right posterior extradural collection mildly hyperdense to spinal canal, causing effacement of the thecal sac and cervical cord compression (arrow); (B) sagittal T2 MRI demonstrating heterogeneous but predominantly hyperintense extradural haematoma (arrow); (C) sagittal T1 MRI showing extradural collection with isointense T1 signal, consistent with acute haematoma (arrow).

Case 4

History

A 65-year-old female presented with atraumatic sudden neck and interscapular pain, with full range of movement of her cervical spine. She developed bilateral arm paraesthesia associated with hyperventilation and increased anxiety. The symptoms resolved after reassurance.

Imaging

CT cervical spine performed 1 hour after presentation demonstrated hyperdense extradural collection located posteriorly from C2 to C7 with 7 mm axial depth and effacement of the thecal sac, representing SCEH (Figure 4 A,B).

Figure 4 CT cervical spine and MRI cervical spine with gadolinium contrast. (A) Axial CT cervical spine demonstrating hyperdensity in the right posterior extradural space with effacement of the thecal sac (arrow); (B) sagittal CT cervical spine demonstrating hyperdense extradural collection extending from C2–C7 (arrows); (C) axial T2 MRI demonstrating heterogeneous hyperintense collection with posterior dural impression and partial effacement of the thecal sac (arrow); (D) sagittal post-contrast T1 demonstrating isointense signal with patchy enhancement (arrow).

There was no acute fracture or significant prevertebral soft tissue swelling.

MRI cervical spine with gadolinium contrast was performed 36 h later confirmed SCEH. Axial T2 demonstrated heterogeneous signal with central hyperintensity and peripheral hypointensity secondary to aging of acute blood (Figure 4C). Sagittal T1 demonstrated isointense/hyperintense with patchy enhancement (Figure 4D). There was impression on the posterior dura and partial impingement of the spinal cord but no intramedullary oedema signal. The patient underwent a spinal angiogram which was normal. She remained neurologically intact and was managed conservatively. Follow up MRI performed one month later showed complete resolution of the SCEH.


Discussion

SCEH is a rare neurological presentation which was first diagnosed in 1869 (1). The incidence is estimated to be around 1 in 100,000 with a male/female predominance of 1.4:1 (2,3). Reported incidence has been increasing partly due to easier access to CT and MRI, which has led to increasing recognition of SCEH even when this pathology is an unexpected finding (4).

Risk factors of SCEH include hypertension, coagulopathy, vascular malformations, pregnancy and anticoagulation use, which was of relevance in the first three cases (1,4,5). It is unclear whether the pathophysiology of SCEH is arterial or venous. The case for an arterial source has been hypothesised to be secondary to the free anastomotic arteries that connect with radicular arteries in the epidural space. The high prevalence of an SCEH expanding and causing acute spinal cord compression supports an arterial origin (1). The more widely accepted hypothesis however is that most cases of SCEH are venous in origin, with rupture of the epidural venous plexus (1,4,5). Epidural veins are thin and valveless which may lead to venous pooling; therefore, any subsequent high intra-thoracic pressure can lead to rupture. This may explain why patients might develop SCEH after performing sudden movements, such as bending, lifting a heavy object or after neck manipulation (1,6). The posterior predominance that has been noted in all of the cases presented suggests rupture of the posterior internal vertebral venous plexus, which is also supported in literature (4). Another factor for posterolateral location of SCEH is the dura being adherent to the posterior longitudinal ligament (7).

As demonstrated in all the presented cases, the common presenting symptom of SCEH is acute neck and interscapular pain, which is supported in literature (2,4-6). There can be varied neurological findings with sometimes only minimal neurological deficit (4). When there is substantial compression of the spinal cord and nerve roots, motor and sensation deficits are seen. Paraplegia or quadriplegia can result, depending on the rate and level of compression. Rarely hemiparesis can occur due to the involvement of the corticospinal tracts, which may be associated with delay in diagnosis (1,8). This is due to acute stroke or arterial dissection being the initial clinical impression, which leads to CT/CTA screening studies, as appose to MRI cervical spine (1,9). In light of this, heightened awareness is required to review spinal canal appearance when reporting these studies. Furthermore, in rare instances the neurological deficit can be transient, which can lead to diagnostic difficulty as the patient is initially investigated for a transient ischaemic attack (TIA) (10).

CT/CTA is typically the first imaging modality performed in patients subsequently diagnosed with SCEH (9), which usually manifests as an extradural lentiform hyperdense collection mildly hyperdense to expected density of normal spinal canal content, average Hounsfield Unit of 70. MRI remains more sensitive when diagnosing SCEH compared to CT (1). Previous studies report experienced radiologists not detecting SCEH on CT in up to 13% of cases (11). Furthermore, MRI is advantageous for assessment of the extent of any spinal cord compression or oedema, which is key to guiding surgical decompression and predicting neurological deficit (11). On MRI SCEH often show fusiform or spindle appearance on a sagittal view (12). They typically demonstrate acute haemorrhage signal character of homogenous T1 isointensity within the first 24 h (1,2,9,13) and then hyperintensity at 36 h due to degradation of haemoglobin to methaemoglobin (1). T2 imaging demonstrates heterogenous hyperintensity with foci of hypointensity (1,5). Contrast enhancement, either with CT or MRI can occur and correlates with contained extraluminal leaking contrast from ruptured posterior epidural venous plexus (7). Enhancement may also be secondary to aberrant vessels or enveloped vascular soft tissue (7). Contrast enhancement on CT or MRI typically appears as a ‘spot sign’ (12) or peripheral and internal enhancing septations (2). The presence of extraluminal contrast secondary to damaged epidural venous plexus may predict an expanding haematoma which correlates to poorer prognosis (12). The primary management of SCEH requires treatment of predisposing medical conditions and urgent discussion/referral to a neurosurgical centre, particularly in the presence of contrast enhancement within the haematoma.


Conclusions

SCEH is a rare emergency pathology which requires early diagnosis and urgent referral to specialist neurology/neurosurgery team for optimal management. High index of suspicion is encouraged in any patient whom presents with acute neck pain and variable neurological deficits on a background of anticoagulant use, hypertension, coagulopathy, pregnancy or vascular malformations. Clinical features can be variable and are commonly initially misleading.

Typical CT findings of spontaneous SCEH show a biconvex hyperdense extradural collection, with variable cord compression. Sensitivity for detection of SCEH by CT is suboptimal, and requires a routine review of the density of the spinal canal content on all neck studies. Patients with strong clinical suspicion should proceed to MRI if the CT is negative, which is gold standard in diagnosis and is also able to assess for spinal cord compression. On T1 assessment a SCEH demonstrates an age-related variation in signal intensity, changing from isointense to increasingly hyperintense signal over 36 h. T2 signal typically demonstrates heterogeneously hyperintense signal.

Post contrast images should be performed which can occur with either CT or MRI. There are a variety of causes for enhancement but of most significant is secondary to rupture of a posterior epidural venous plexus which portends further haemorrhage. Therefore, heightened awareness is encouraged for any presence of contrast enhancement shown by either modality.


Acknowledgments

None.


Footnote

Conflicts of Interest: The authors have no conflicts of interest to declare.


References

  1. Kim JK, Kim TH, Park SK, Hwang YS, Shin HS, Shin JJ. Acute spontaneous cervical epidural hematoma mimicking cerebral stroke: a case report and literature review. Korean J Spine 2013;10:170-3. [Crossref] [PubMed]
  2. Fukui MB, Swarnkar AS, Williams RL. Acute spontaneous spinal epidural hematomas. AJNR Am J Neuroradiol 1999;20:1365-72. [PubMed]
  3. Aristedis R, Dimitrios B. Spinal epidural hematoma mimicking subarachnoid hemorrhage: A case study. Surg Neurol Int 2017;8:182. [Crossref] [PubMed]
  4. Huh J, Kwak HY, Chung YN, Park SK, Choi YS. Acute Cervical Spontaneous Spinal Epidural Hematoma Presenting with Minimal Neurological Deficits: A Case Report. Anesth Pain Med 2016;6:e40067. [PubMed]
  5. Kim DH, Kim DH, Nam KH, Choi BK, Han IH. Spontaneous Epidural Hematoma Associated with Venous Phlebolith in Cervical Spine and Possible Pathogenesis. Korean J Spine 2017;14:96-8. [Crossref] [PubMed]
  6. Fattahi A, Taheri M. Spontaneous resolved cervical spine epidural hematoma: A case report. Surg Neurol Int 2017;8:183. [Crossref] [PubMed]
  7. Chang FC, Lirng JF, Chen SS, Luo CB, Guo WY, Teng MM, Chang CY. Contrast enhancement patterns of acute spinal epidural hematomas: a report of two cases. AJNR Am J Neuroradiol 2003;24:366-9. [PubMed]
  8. Matsumoto H, Miki T, Miyaji Y, Minami H, Masuda A, Tominaga S, Yoshida Y, Yamaura I, Matsumoto S, Natsume S, Yoshida K. Spontaneous spinal epidural hematoma with hemiparesis mimicking acute cerebral infarction: two case reports. J Spinal Cord Med 2012;35:262-6. [Crossref] [PubMed]
  9. Tiryaki M, Basaran R, Aydin SO, Efendioglu M, Balkuv E, Balak N. Spontaneous cervical epidural hematoma with hemiparesis mimicking cerebral stroke. Case Rep Emerg Med 2014;2014:210146.
  10. Li C, He R, Li X, Zhong Y, Ling L, Li F. Spontaneous spinal epidural hematoma mimicking transient ischemic attack: A case report. Medicine (Baltimore) 2017;96:e9007. [Crossref] [PubMed]
  11. Brichko L, Giddey B, Tee J, Niggemeyer L, Fitzgerald M. Cervical spine traumatic epidural haematomas: Incidence and characteristics. Emerg Med Australas 2018;30:359-65. [Crossref] [PubMed]
  12. Schutz A, Rama Asary P, Hansen J, O'Brien B, Crimmins D. Teaching NeuroImages: Spontaneous spinal epidural hematoma with spot sign positivity. Neurology 2015;84:e202-3. [Crossref] [PubMed]
  13. Shin JJ, Kuh SU, Cho YE. Surgical management of spontaneous spinal epidural hematoma. Eur Spine J 2006;15:998-1004. [Crossref] [PubMed]
Cite this article as: Naeem A, Hanson J, Freebody J, Schutz A, O’Brien B. Spontaneous cervical epidural haematoma—diagnosis as unexpected finding by CT: case series. Quant Imaging Med Surg 2019;9(12):1986-1991. doi: 10.21037/qims.2019.10.06
